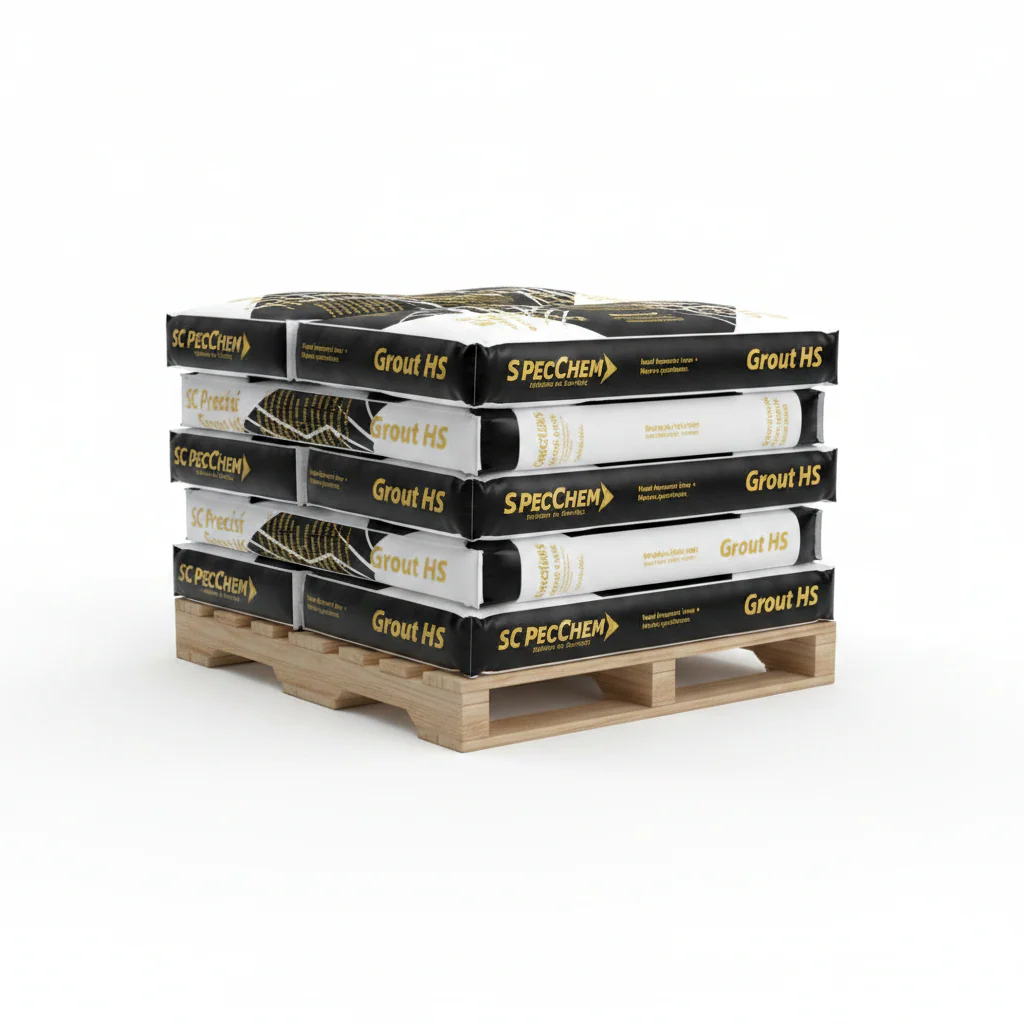

SC Precision Grout HS High Performance/High-Strength Grout (Pack of 6)

High-Performance Precision Grout for Heavy Equipment & Industrial Foundations

SC Precision Grout HS is a high-performance, non-metallic, cementitious precision grout engineered to achieve exceptionally high early and ultimate compressive strengths. Designed for demanding industrial and structural applications, it provides effective load bearing beneath heavy equipment, compressors, machinery foundations, tank bases, anchor bolts, and structural supports. The grout mixes into a flowable, pumpable consistency while maintaining controlled positive expansion for maximum bearing contact and long-term performance.

Unlike conventional precision grouts, SC Precision Grout HS is specifically formulated for projects requiring rapid strength gain, reduced downtime, and superior load transfer under high-performance industrial equipment.

---

Key Features & Benefits

Exceptional Early Strength Development

Develops extremely high early compressive strengths, allowing equipment installation and project schedules to move forward faster than traditional grouts.

High Ultimate Compressive Strength

Achieves compressive strengths exceeding 15,000 PSI at 28 days, making it ideal for heavy industrial and critical structural applications.

Controlled Positive Expansion

Designed to maintain maximum bearing contact between grout, equipment, and foundation surfaces while minimizing shrinkage concerns.

Non-Metallic & non-corrosive

Contains no metallic aggregates and no chlorides, helping protect embedded steel and reinforcing components from corrosion.

Pumpable & Flowable

Can be placed by pumping or pouring, making it suitable for complex equipment installations and difficult-to-access grouting locations.

Excellent Freeze-Thaw Resistance

Provides long-term durability in both interior and exterior environments exposed to harsh weather conditions.

---

Common Applications

Heavy Equipment Foundations

Provides precision support beneath large industrial machinery requiring high load-bearing capacity and dimensional stability.

Compressor Bases

Designed specifically for compressor installations where vibration resistance and bearing support are critical.

Tank Bases

Creates a stable support system beneath storage tanks and process equipment foundations.

Machinery Installation

Ideal for turbines, generators, pumps, conveyors, manufacturing equipment, and industrial production lines.

Anchor Bolts & Base Plates

Provides complete bearing support and load transfer around anchor bolts, steel columns, and structural base plates.

Industrial Facilities

Commonly specified for manufacturing plants, processing facilities, infrastructure projects, utility plants, and industrial construction.

---

Recommended Uses

SC Precision Grout HS is ideal for:

• Heavy machinery foundations
• Compressor installations
• Tank bases
• Industrial equipment support
• Anchor bolt grouting
• Structural steel base plates
• Manufacturing facilities
• Infrastructure projects
• Utility installations
• Equipment subjected to vibration and heavy loading

---

Application Instructions

Surface Preparation

Before placement:

• Remove dirt, oil, grease, dust, and loose materials.
• Remove rust and contaminants from metal surfaces.
• Ensure concrete is structurally sound and roughened.
• Bring substrate to Saturated Surface Dry (SSD) condition for at least one hour before placement.
• Remove all standing water prior to grouting.
• Secure all equipment, anchor bolts, and base plates.

Temperature Requirements

For best performance:

• Condition materials and substrates between 50°F and 80°F.
• Protect grout from temperature extremes during placement and curing.

Mixing

For each 50 lb bag:

• Use approximately 5.5 pints of clean water.
• Do not exceed 5.75 pints of water.
• Mix for 3–4 minutes.
• Allow a short induction period.
• Mix for an additional minute before placement.

Placement

• Place continuously and rapidly from one side.
• Prevent air entrapment beneath base plates.
• Maintain minimum 1-inch clearance where possible.
• Do not vibrate grout during placement.

Curing

• Cover immediately with wet curing materials.
• Maintain moisture until final set.
• Apply an ASTM C309 curing compound after final set.

---

Deep Pour Applications

For grout depths exceeding 3 inches:

• Extend with clean, pre-washed 3/8-inch pea gravel.
• Pea stone extension increases yield and reduces heat generation in large mass placements.

---

Coverage & Yield

Packaging

• 50 lb bag.

Yield

• Approximately 0.42 cubic feet per bag at fluid consistency.
• May be extended with pea stone for larger placements.

---

Performance Properties

Compressive Strength (ASTM C109)



Expansion Characteristics

• Controlled positive expansion up to 0.09%.
• Designed for maximum effective bearing support.

Setting Time

• Initial Set: Approximately 150 minutes
• Final Set: Approximately 180 minutes

---

Specifications & Compliance

SC Precision Grout HS complies with:

• ASTM C1107 Grade A
• ASTM C1107 Grade B
• ASTM C1107 Grade C
• Corps of Engineers CRD-C621 Grade A
• Corps of Engineers CRD-C621 Grade B
• Corps of Engineers CRD-C621 Grade C

---

Shelf Life & Storage

Shelf Life

• One year when stored properly in original unopened packaging.

Storage Conditions

• Store indoors in a cool, dry location.
• Protect from moisture.
• Keep containers tightly sealed until use.
• Store off the ground and protected from weather exposure.

---

Frequently Asked Questions

What is SC Precision Grout HS used for?

SC Precision Grout HS is used for compressors, heavy equipment foundations, machinery bases, tank bases, anchor bolts, and critical precision grouting applications.

How strong is SC Precision Grout HS?

The grout develops up to 9,450 PSI in 24 hours and can exceed 15,500 PSI at 28 days.

Is SC Precision Grout HS non-shrink?

Yes. It is a non-shrink grout with controlled positive expansion designed to maximize bearing support.

Can it be pumped?

Yes. SC Precision Grout HS can be mixed into a flowable, pumpable consistency for precision placement applications.

Can it be used outdoors?

Yes. It offers excellent freeze-thaw durability and can be used in both interior and exterior environments.

What is the difference between SC Precision Grout and SC Precision Grout HS?

SC Precision Grout HS provides substantially higher early and ultimate compressive strengths, making it ideal for critical equipment installations and accelerated construction schedules.

---

Technical Data Summary (TDS)

Product Type

• High-performance non-shrink cementitious grout

Consistency

• Flowable
• Pumpable

Yield

• 0.42 cubic feet per 50 lb bag

Water Requirement

• 5.5–5.75 pints per bag

Initial Set

• 150 minutes

Final Set

• 180 minutes

Compressive Strength

• 9,450 PSI @ 24 hours
• 15,560 PSI @ 28 days

Expansion

• Up to 0.09%

Use Locations

• Interior
• Exterior

Packaging

• 50 lb bag

Shelf Life

• 1 year

---

Safety Data Summary (SDS)

Hazard Information

SC Precision Grout HS contains cementitious materials and crystalline silica and may:

• Cause skin irritation
• Cause severe eye damage
• Cause respiratory irritation
• Cause allergic skin reactions
• Cause lung damage from repeated dust exposure
• Contain components classified as human carcinogens when respirable dust is generated and inhaled over time.

Recommended PPE

• Safety goggles
• NIOSH-approved dust respirator
• Chemical-resistant gloves
• Long sleeves and protective clothing

First Aid

Eye Contact

• Immediately flush with water and obtain medical attention.

Skin Contact

• Wash thoroughly with soap and water.

Inhalation

• Move affected person to fresh air.

Ingestion

• Seek immediate medical attention.

Storage

• Store in a dry location.
• Protect from moisture.
• Keep packaging sealed until use.
• Avoid unnecessary dust generation during handling.
