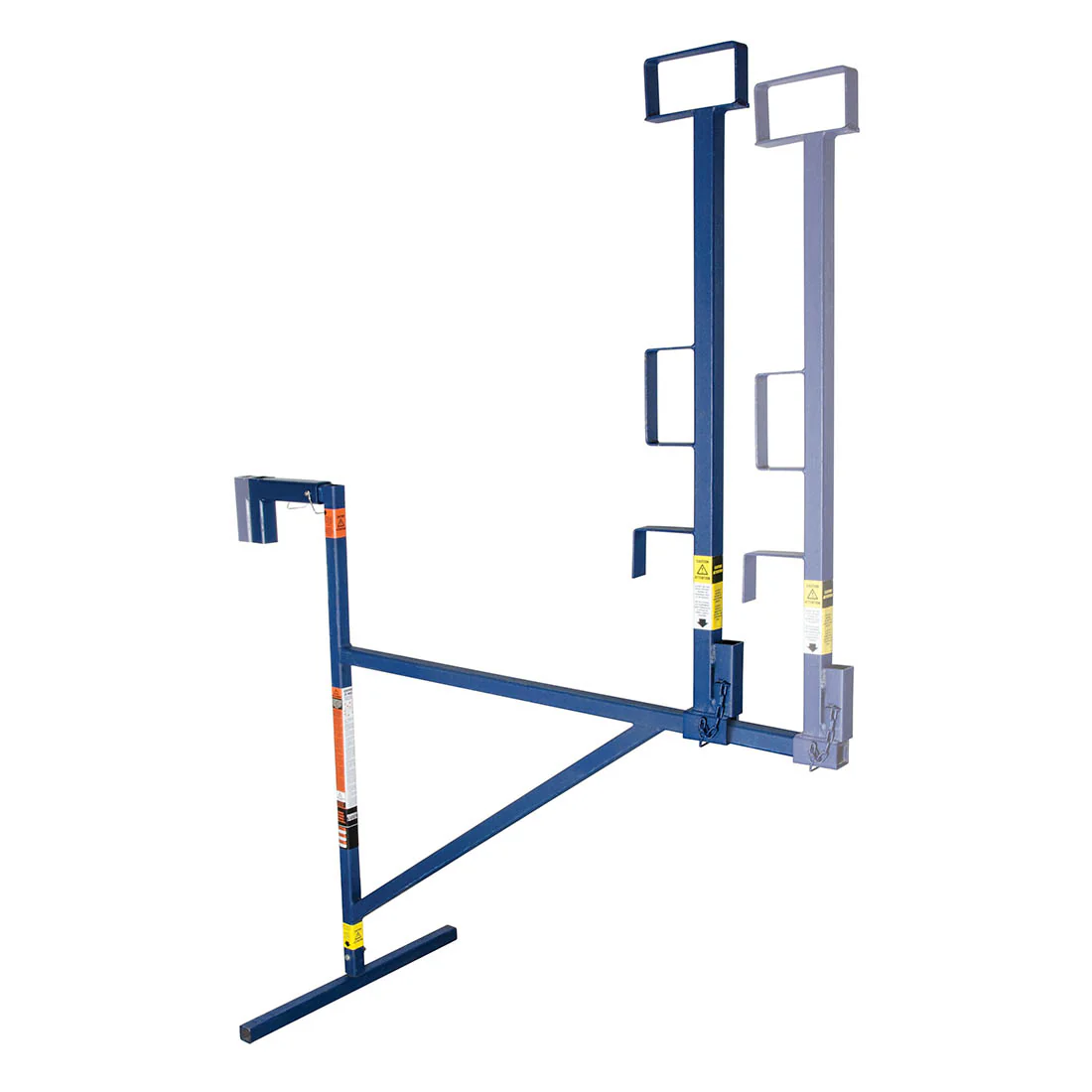

Wall Bracket 42"

Wall Bracket 42" for Heavy-Duty Structural Wall Support Systems

The Wall Bracket 42" is designed for secure mounting of heavy loads to structural wall systems in construction and industrial applications. Engineered for strength and adjustability, it provides a stable support solution for scaffolding components, platforms, and other load-bearing installations.

Available in both powder coated and galvanized finishes, this bracket offers long-term durability and corrosion resistance for indoor and outdoor use. With a load capacity of up to 1,000 lb, it is suitable for demanding professional environments and complies with OSHA, ANSI, CWB, and CSA standards.

---

Key Features

• Heavy-duty wall-mounted structural support bracket

• Supports up to 1,000 lb load capacity

• Available in powder coated or galvanized finishes

• Adjustable configuration for flexible installation

• Supplied in 4-piece assembly design for easier handling

• Designed for professional construction and industrial use

• Complies with OSHA, ANSI, CWB, and CSA standards

---

Typical Applications

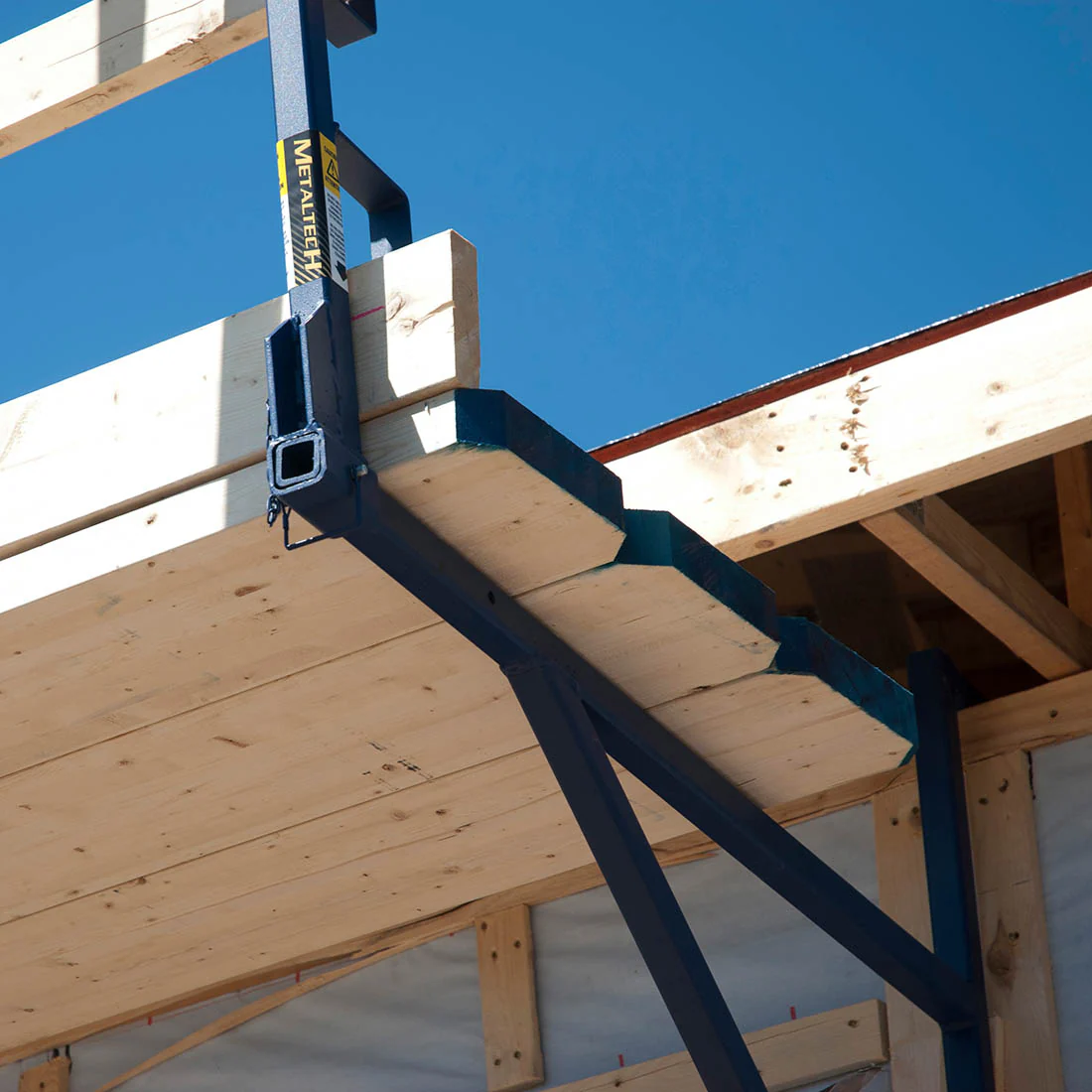

• Scaffolding wall tie-in systems

• Structural wall support installations

• Construction and renovation projects

• Industrial platforms and frameworks

• Heavy equipment and material support mounting

---

Construction Features

• Reinforced steel construction for high load performance

• Multi-piece design for easier transport and assembly

• Adjustable arm lengths for installation flexibility

• Corrosion-resistant finish options for different environments

• Engineered for secure anchoring into structural surfaces

---

Why Use a Wall Bracket System?

• Provides strong load-bearing wall support

• Enhances scaffold and platform stability

• Reduces structural movement during use

• Improves safety in elevated work systems

• Allows adjustable installation configurations

---

Safety Recommendations

• Install only on structurally sound walls

• Ensure all bolts and anchors are properly secured

• Do not exceed 1,000 lb load capacity

• Inspect bracket and fasteners before each use

• Follow OSHA, ANSI, CWB, and CSA installation guidelines

• Use trained personnel for installation and adjustment

---

Frequently Asked Questions

Q: What is this wall bracket used for?
A: It is used to support scaffolding systems and heavy loads by anchoring them to walls.

Q: What is the load capacity?
A: It supports up to 1,000 lb.

Q: What finishes are available?
A: It is available in powder coated and galvanized finishes.

Q: Is it adjustable?
A: Yes, it can be adjusted between 36.75 in. and 45.75 in.

Q: Does it come assembled?
A: It comes in a 4-piece configuration for easier transport and installation.

---

Product Specifications

Specification	Powder Coated Finish	Galvanized Finish
Dimensions	50.25 x 79 x 27.5 in.	50.25 x 79 x 27.5 in.
Load Capacity	1,000 lb	1,000 lb
Weight	67 lb	71 lb
Adjustable Range	36.75 or 45.75 in.	36.75 or 45.75 in.
Standards	OSHA, ANSI, CWB, CSA	OSHA, ANSI, CWB, CSA
