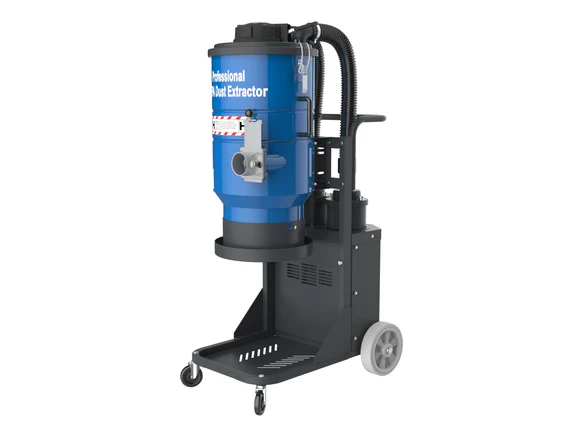

VFG-Z20 HEPA Dust Extractor
The VFG-Z20 Dust Extractor is a professional-grade HEPA dust collection system designed for concrete grinding, polishing, surface preparation, coating removal, and general dust-control applications.
Built for contractors who need powerful suction, reliable filtration, and OSHA-compliant dust containment, the VFG-Z20 combines a dual-motor design with advanced jet pulse filter cleaning and continuous bagging technology.
The compact design makes it easy to transport while still delivering the airflow and vacuum performance required for demanding concrete and flooring applications. The unit is equipped with H13 HEPA filtration and a pre-filter system that captures fine airborne dust while maintaining consistent airflow throughout operation.
Key Features
OSHA-Compliant HEPA Filtration
The VFG-Z20 utilizes a multi-stage filtration system designed to capture fine dust particles generated during grinding and surface preparation applications.
Benefits include:
- H13 HEPA filtration
- Captures fine concrete dust
- Improved air quality
- Enhanced dust containment
- Supports OSHA silica dust compliance programs
Jet Pulse Filter Cleaning System
The integrated jet pulse filter cleaning system allows operators to clean the pre-filter without opening the vacuum.
Advantages include:
- Maintains airflow performance
- Reduces downtime
- Extends filter life
- Improves suction consistency
- Eliminates secondary dust exposure
Continuous Bagging Dust Collection
Designed for efficient dust disposal and jobsite cleanliness.
Features include:
- Continuous bagging system
- Dust-free disposal
- Improved debris containment
- Cleaner maintenance process
- Reduced exposure to collected dust
Contractor-Grade Construction
Built for daily use in demanding environments including:
- Concrete grinding
- Concrete polishing
- Surface preparation
- Coating removal
- Epoxy removal
- Glue and thinset removal
- Commercial construction
Technical Specifications
| Specification | VFG-Z20 |
|---|---|
| Voltage | 1 Phase, 120V / 60Hz |
| Power | 2.4 kW |
| Horsepower | 3.4 HP |
| Current Draw | 18 Amps |
| Maximum Airflow | 258 CFM |
| Alternate Airflow Rating | 224 CFM at 2" Intake |
| Alternate Airflow Rating | 247 CFM at 3" Intake |
| Water Lift | 100 Inches |
| Maximum Vacuum | 86" H₂O |
| Suction Inlet | 2.75" |
| Pre-Filter | F8 Conical Filter (1) |
| HEPA Filters | H13 HEPA Filters (2) |
| Filter Cleaning System | Jet Pulse Cleaning |
| Hose Included | 2" x 24.6 ft Hose |
| Standard Wand | S-Wand |
| Floor Tool Included | Floor Brush |
| Net Weight | 105 lbs |
| Gross Weight | 146 lbs |
| Shipping Dimensions | 24.4" x 29.53" x 59.45" |
| Power Supply | Single Phase |
| Country of Origin | China |
Included Accessories
The VFG-Z20 comes complete with:
- 2" x 24.6 ft Vacuum Hose
- S-Wand Assembly
- Floor Brush Tool
- Integrated Filtration System
- Continuous Bagging Dust Collection System
Applications
Concrete Grinding
- Hand grinders
- Edge grinders
- Surface grinding
- Concrete preparation
Concrete Polishing
- Polishing dust collection
- Resin polishing applications
- Edge polishing
Surface Preparation
- Coating removal
- Glue removal
- Thinset removal
- Adhesive removal
Construction & Renovation
- Dust containment
- Jobsite cleanup
- Commercial renovation
- Industrial maintenance
Filtration System
Primary Filter
- F8 Conical Pre-Filter
- Captures larger dust particles
- Extends HEPA filter life
HEPA Filtration
- Dual H13 HEPA Filters
- Designed for fine dust collection
- High-efficiency particle capture
- Suitable for concrete and silica dust environments
Benefits
Powerful Dust Collection
With up to 258 CFM airflow and 100 inches of water lift, the VFG-Z20 delivers the suction performance needed for professional surface preparation applications.
Reduced Maintenance
The jet pulse cleaning system helps maintain airflow while reducing manual filter cleaning requirements.
Improved Jobsite Safety
Advanced filtration and contained dust collection help create cleaner working environments.
Original: $2,983.33
-65%$2,983.33
$1,044.17
