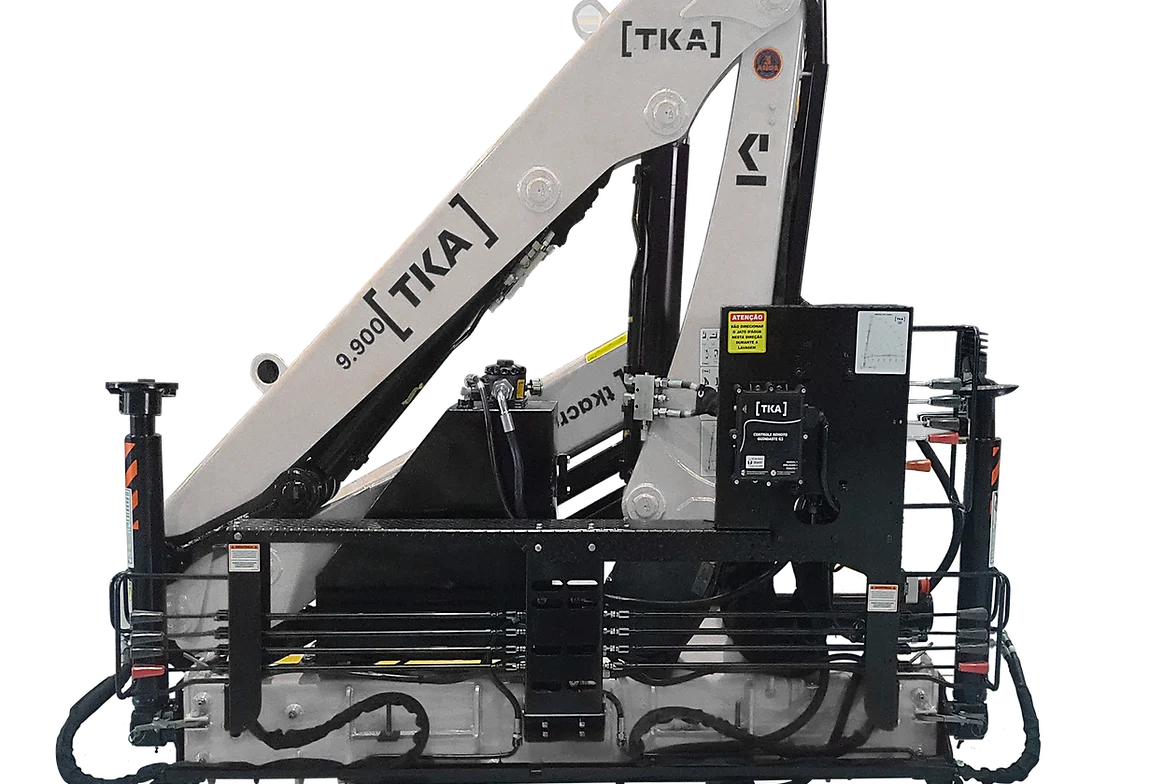

TKA Cranes 9.900C Knuckle Boom

This compact yet powerful crane offers an impressive vertical reach of up to 44 feet and a horizontal reach of 35 feet, making it ideal for a variety of lifting applications.

Built for precision and performance, it features high operating pressure, excellent slewing capacity, and a stable footprint with front stabilizers.

Available Accessories:

• Gear Pump
• Oil Radiator
• Manual Pump (for basket safety use)
• Front Hydraulic Outrigger Extension
• Emergency Stop for Cranes Without Remote Control
• Electrical Load Limiter + Inclinometer + Load Limiter Light Indicator + Load Sound Indication (for cranes with remote control)
• Hydraulic Load Limiter
• Remote Control with 6 Levers (4 + 2 extras) + Emergency Stop
• Scanreco Remote Control with 6 Levers + Emergency Stop
• Mining Kit (Remote Control, Emergency Stop, Load Limiter, Truck Inclinometer, Blocked Work Over Truck Cabin)
• Remote Control Stabilizer Drive Kit for Cranes with Mining Kit
• Truck Inclinometer for Cranes Without Remote Control
• Winch with 1 Ton Capacity with Upper and Lower Pulleys
• Winch with 1.5 Ton Capacity with Upper and Lower Pulleys
• Fixed Rear Stabilizers (8.5 ft)

Specification	Metric	Imperial
Max. manual vertical reach	13.6 m	44 ft 7 in
Max. manual horizontal reach	10.7 m	35 ft 1 in
Max. hydraulic vertical reach	13.6 m	44 ft 7 in
Max. hydraulic horizontal reach	10.7 m	35 ft 1 in
Front stabilizer spread	4.4 m*	14 ft 5 in*
Boom elevation angle	82°	82°
Max. operating pressure	275 bar	3,988 psi
Slewing torque	0.96 tf·m	6,942 lb. ft
Slewing angle	400°	400°
Dead weight (Base machine - 2H0M / 3H0M)	1,190 kg / 1,260 kg	2,624 lb. / 2,778 lb.
Dead weight (Base machine - 4H0M)	1,320 kg	2,910 lb.
Fitting space required (transport)	0.9 m	2 ft 11 in
Oil tank capacity	70 l	18.5 gal
Min. gross vehicle weight (GVW)	7,000 kg**	15,432 lb.**
