Tie Rod Jibs

Tie Rod Jibs

Tie Rod Jibs for achieving maximum floor space and utilize wasted air space

Mount to walls or columns to increase hook coverage over workstations. Unit rotates 180 degrees. Usable I-beam length is 79-3/4". All steel construction with pained blue finish provides years of service. Hoist and trolley can be ordered separately.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Tie Rod Jibs (for high ceilings)
Model PDF's Overall Length Cable Support Length Overall Height I-Beam Flange
(Width x Height)		 Capacity (lbs) Wt.
(lbs)
JIB-HC-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 86" 82-1/4" 45-1/4" 2-11/16"x 4" 300 144
JIB-HC-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 86" 82-1/4" 45-1/4" 2-11/16"x 4" 600 144
JIB-HC-10 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 86" 76-3/4" 45-1/4" 2-11/16"x 4" 1,000 160
JIB-HC-20 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 86" 76-3/4" 45-1/4" 4"x 6" 2,000 216

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Select Capacity (lbs)
From $216.94

Original: $619.82

-65%
Tie Rod Jibs—

$619.82

$216.94

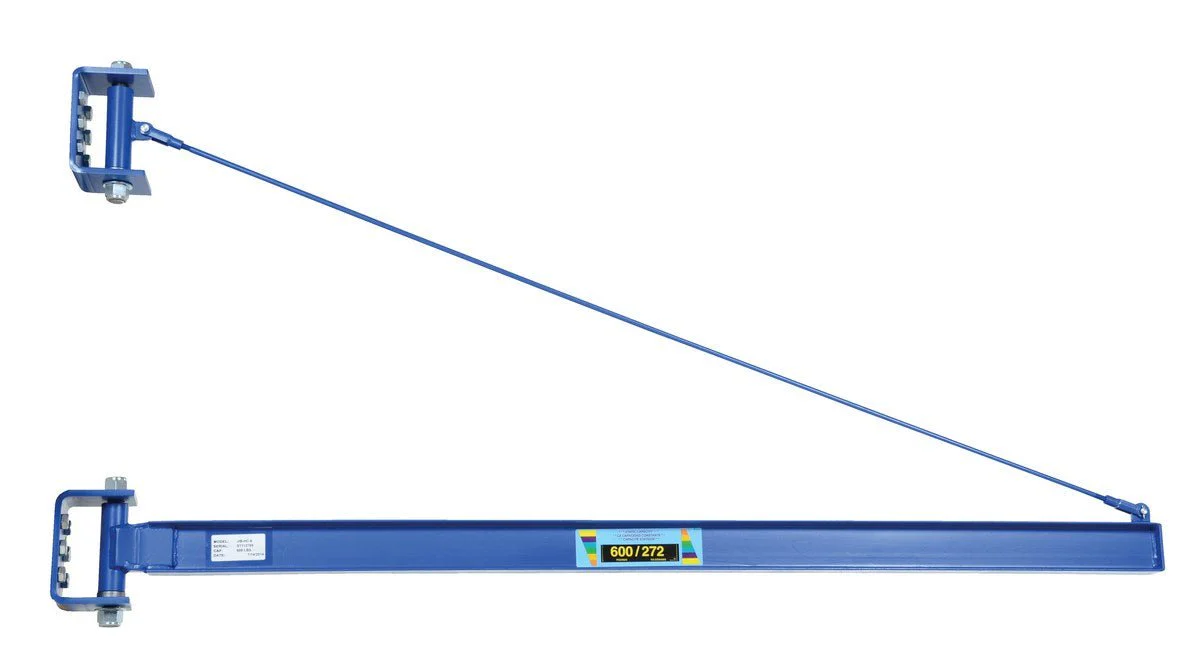

Product image 1

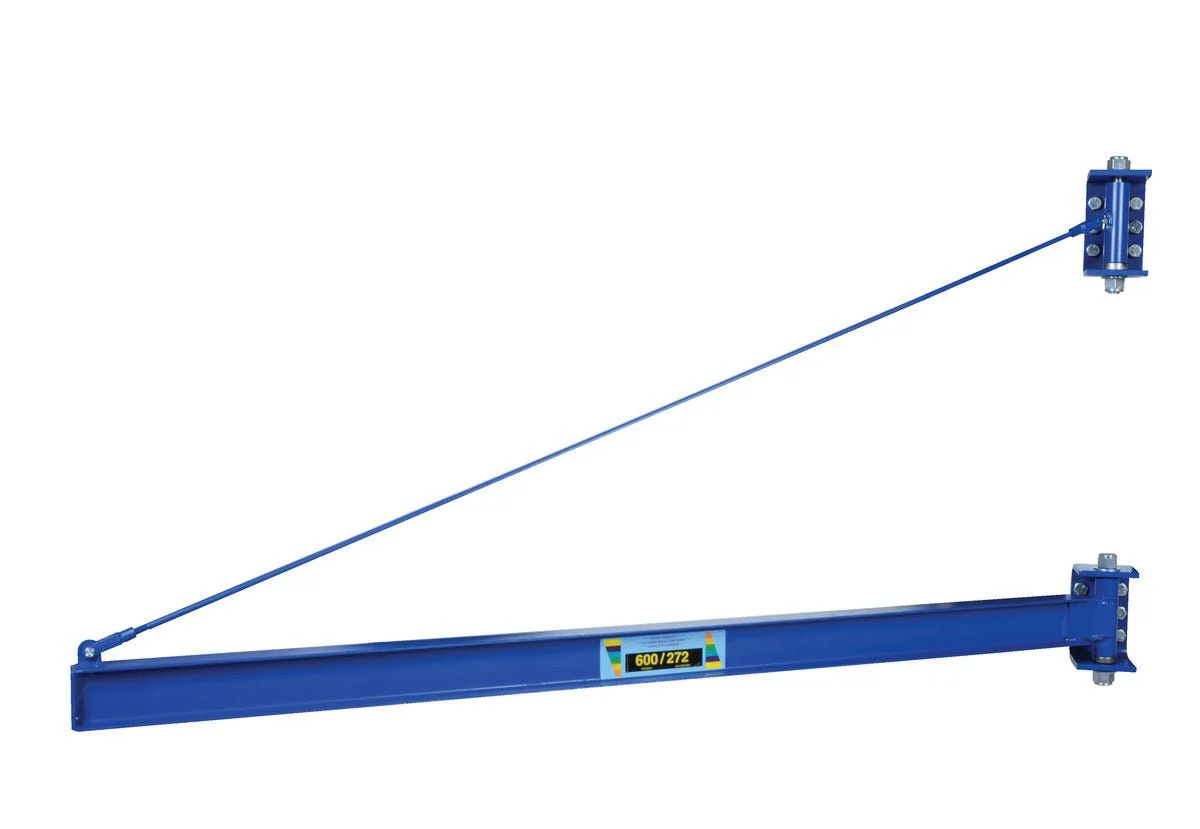

Product image 2
Product image 3
Product image 4

Description

Tie Rod Jibs for achieving maximum floor space and utilize wasted air space

Mount to walls or columns to increase hook coverage over workstations. Unit rotates 180 degrees. Usable I-beam length is 79-3/4". All steel construction with pained blue finish provides years of service. Hoist and trolley can be ordered separately.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Tie Rod Jibs (for high ceilings)
Model PDF's Overall Length Cable Support Length Overall Height I-Beam Flange
(Width x Height)		 Capacity (lbs) Wt.
(lbs)
JIB-HC-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 86" 82-1/4" 45-1/4" 2-11/16"x 4" 300 144
JIB-HC-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 86" 82-1/4" 45-1/4" 2-11/16"x 4" 600 144
JIB-HC-10 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 86" 76-3/4" 45-1/4" 2-11/16"x 4" 1,000 160
JIB-HC-20 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 86" 76-3/4" 45-1/4" 4"x 6" 2,000 216

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
