Star Industries Over-The-Bucket Forks

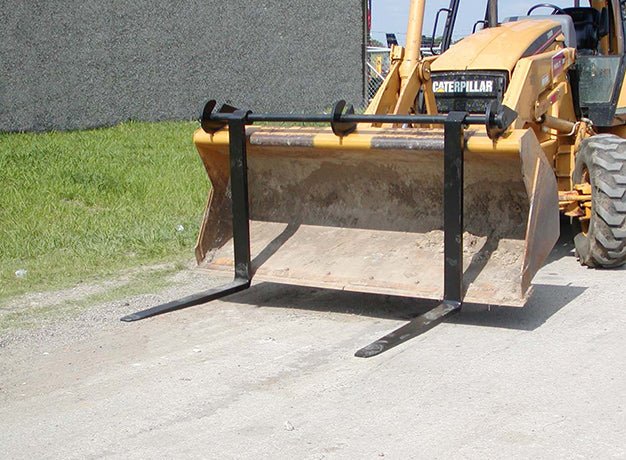

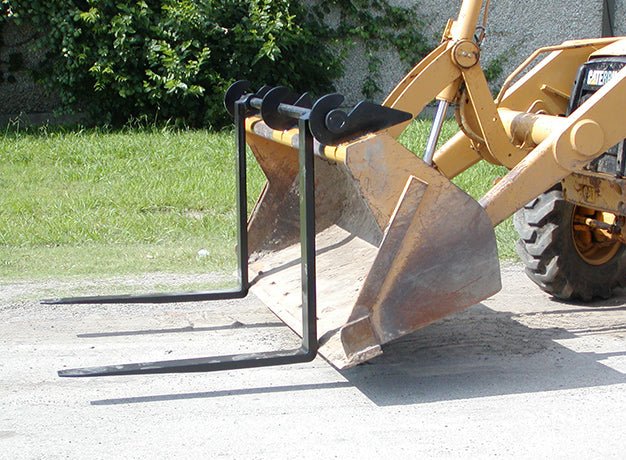

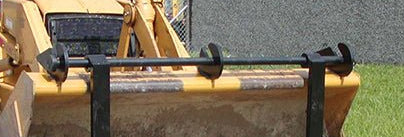

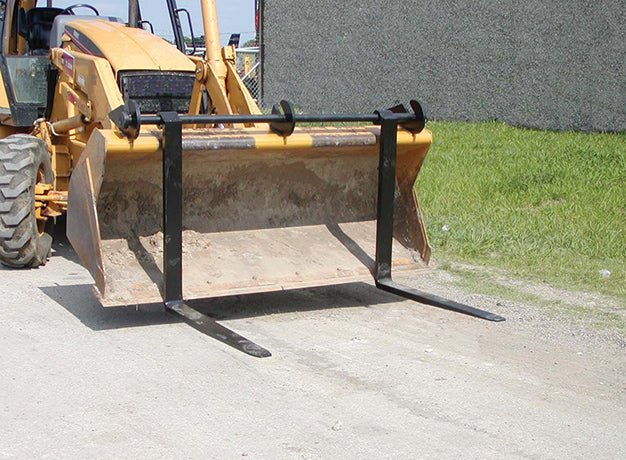

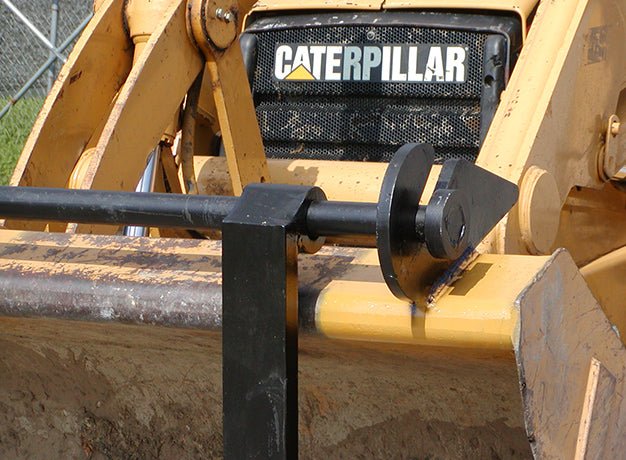

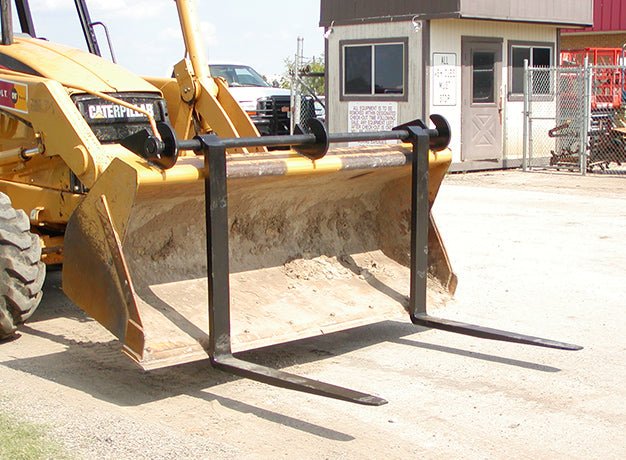

Star Industries Over-The-Bucket Forks add forklift versatility to your loader without leaving the operator's seat

Star Industries Over-The-Bucket Forks convert your loader into a forklift in three steps — roll bucket forward, engage the free-standing forks with brackets, then roll back to level. No tools needed and operators never have to leave the seat. Forged from one piece of premium-grade carbon steel and compatible with standard 3/4" brackets. Brackets and shaft sold separately.

Features

• Forged from one piece of premium-grade carbon steel
• Compatible with standard 3/4" brackets
• Fit and remove forks from the operator's seat — no tools needed

Specifications

1-1/2" x 4" x 42" Tines — 5,500 lb. capacity per pair

Model	Description	Fork Back
LBA170-36	Fits vertical bucket openings up to 36"	43"
LBA170-42	Fits vertical bucket openings up to 42"	49"

1-3/4" x 4" x 48" Tines — 6,900 lb. capacity per pair

Model	Description	Fork Back
LBA180-36	Fits vertical bucket openings up to 36"	43"
LBA180-42	Fits vertical bucket openings up to 42"	49"
LBA180-48	Fits vertical bucket openings up to 48"	55"
LBA180-54	Fits vertical bucket openings up to 54"	61"

Brackets & Shafts

Model	Description
LBA170B	Set of 3 universal-fit weld-on brackets — required for LBA170 and LBA180
LBA170-02	2" x 80" solid steel shaft with retainers — required for LBA170 and LBA180
