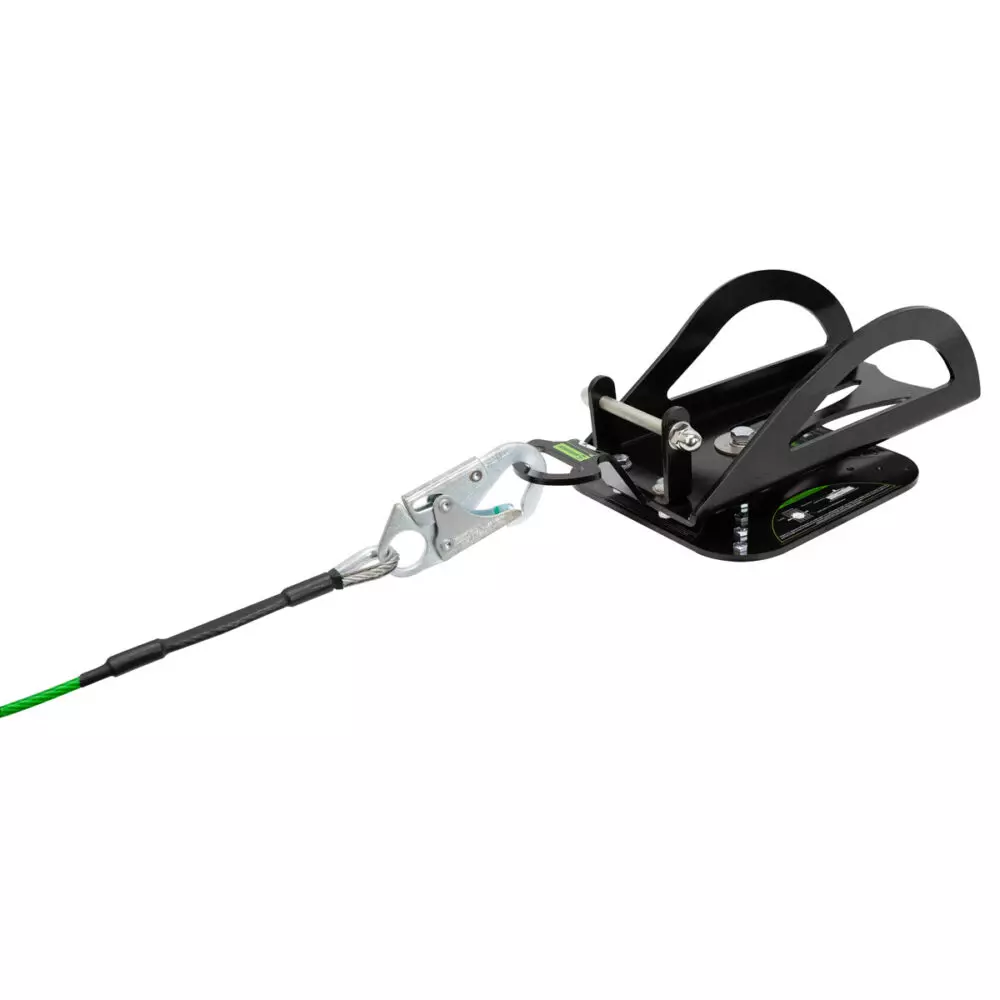

SRL Swivel Roof Anchor
The SRL Swivel Roof Anchor accommodates a wide variety of SRL shapes and sizes on both metal and wood roofs.
Two anchor points: anchor post for quick SRL attachment without the removal of either the carabiner or anchor post plus D-ring for use with energy absorbing lanyards, HLLs and VLLs. Durable and versatile design with easy installation.
Features:
- Installs easily on Z-purlin, metal decking or wood roof structures
- Also installs on flat concrete 3000 PSI or higher
- 360Ā° swivel base for increased user mobility
- Smart cradle design accommodates most SRL sizes
- Anchor post for SRL quick attachment - no disassembly required
- D-ring connection point for energy absorbing lanyards, VLLs and HLLs
- Temporary and reusable for cost efficiency
- For flat or pitched roof use
- Includes (8) lag screws for wood and (16) self-tapping screws for metal
- For concrete, use (8) 1/4" x 1-3/4" hex head Tapcon fasteners (not included)
| Materials: | Powder coated steel, stainless steel |
| Weight: | 18.2 lbs. (8.3 kg) |
| Length: | 19" (483 mm) |
| Base Plate: | 10" x 10" (254 mm x 254 mm) |
| Number of Holes: | 16 |
| Hole Diameter: | 0.25" (6.4 mm) |
| Minimum Breaking Strength: | 5,000 lbs. |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| OSHA Standards: | 1910.140, 1926.502, 1910.66 |
$117.94
Original: $336.96
-65%SRL Swivel Roof Anchorā
$336.96
$117.94
Description
The SRL Swivel Roof Anchor accommodates a wide variety of SRL shapes and sizes on both metal and wood roofs.
Two anchor points: anchor post for quick SRL attachment without the removal of either the carabiner or anchor post plus D-ring for use with energy absorbing lanyards, HLLs and VLLs. Durable and versatile design with easy installation.
Features:
- Installs easily on Z-purlin, metal decking or wood roof structures
- Also installs on flat concrete 3000 PSI or higher
- 360Ā° swivel base for increased user mobility
- Smart cradle design accommodates most SRL sizes
- Anchor post for SRL quick attachment - no disassembly required
- D-ring connection point for energy absorbing lanyards, VLLs and HLLs
- Temporary and reusable for cost efficiency
- For flat or pitched roof use
- Includes (8) lag screws for wood and (16) self-tapping screws for metal
- For concrete, use (8) 1/4" x 1-3/4" hex head Tapcon fasteners (not included)
| Materials: | Powder coated steel, stainless steel |
| Weight: | 18.2 lbs. (8.3 kg) |
| Length: | 19" (483 mm) |
| Base Plate: | 10" x 10" (254 mm x 254 mm) |
| Number of Holes: | 16 |
| Hole Diameter: | 0.25" (6.4 mm) |
| Minimum Breaking Strength: | 5,000 lbs. |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| OSHA Standards: | 1910.140, 1926.502, 1910.66 |
