Soft Bond Epoxy Resin Tooling
The 01 Series Soft Bond Epoxy Resin Tooling is a high-performance diamond polishing system engineered with a proprietary resin-bond matrix designed for durability, flexibility, and consistent cutting performance.
Built with premium abrasive diamonds evenly distributed throughout the resin bond, this tooling delivers long service life and reliable performance on hard concrete, terrazzo, and natural stone surfaces.
The face design allows for effective channeling of dust or slurry, making it suitable for both wet and dry applications while maintaining consistent polishing results.
Key Features
- High-quality resin-bond diamond matrix
- Soft bond formulation for improved friction and polish on hard surfaces
- Long life with consistent performance
- Excellent flexibility for uneven or wavy floors
- Designed for wet or dry use
- Efficient dust and slurry channeling
- Even diamond distribution for uniform wear
Recommended Uses
The 01 Series is primarily used in the final polishing stages, especially on:
- Hard concrete (400 grit and higher polishing stages)
- Terrazzo floors
- Natural stone surfaces
- Decorative concrete requiring minimal aggregate exposure
It is especially effective where a refined, high-reflectivity finish is desired.
Application
The 01 Series is designed for use on:
- Hard concrete (Mohs hardness 5 and above)
- Terrazzo
- Natural stone
Its flexible design allows it to conform to uneven or wavy surfaces, ensuring consistent contact and improved finish quality across the floor.
Technical Data
Packaging
- Varies by diameter
Coverage
Coverage varies depending on surface condition, porosity, and application technique.
- Typical range: 2,000 – 6,000 sq. ft. per set on flat, dense surfaces
- Wet grinding typically extends tool life
Specifications
- Diameters: 3", 4", 5", 7"
- Thickness: 3 mm
- Maximum Speed: 6,000 RPM
- Use: Wet or Dry
Grit / Color Guide

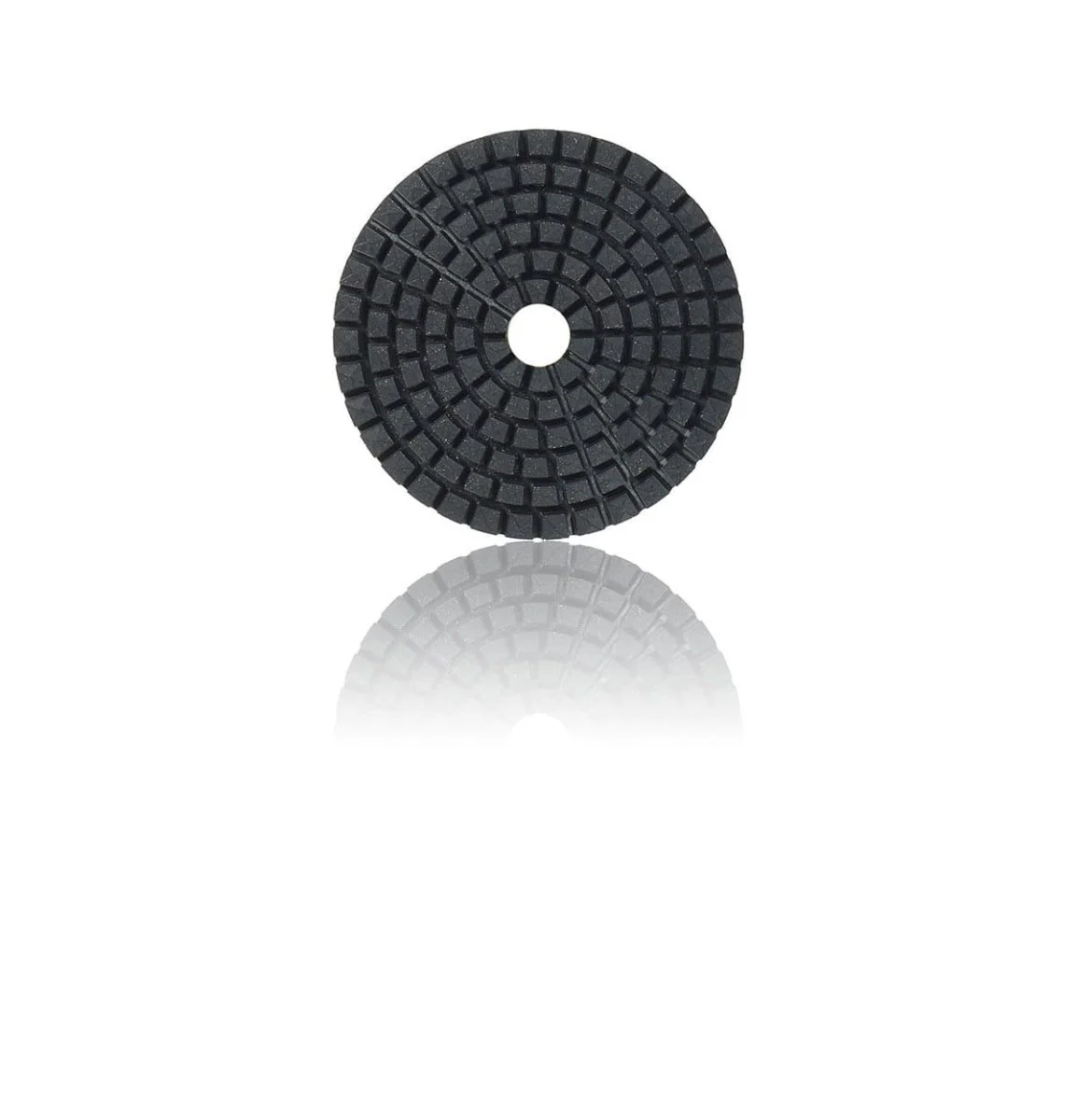

- 50 Grit – Gray

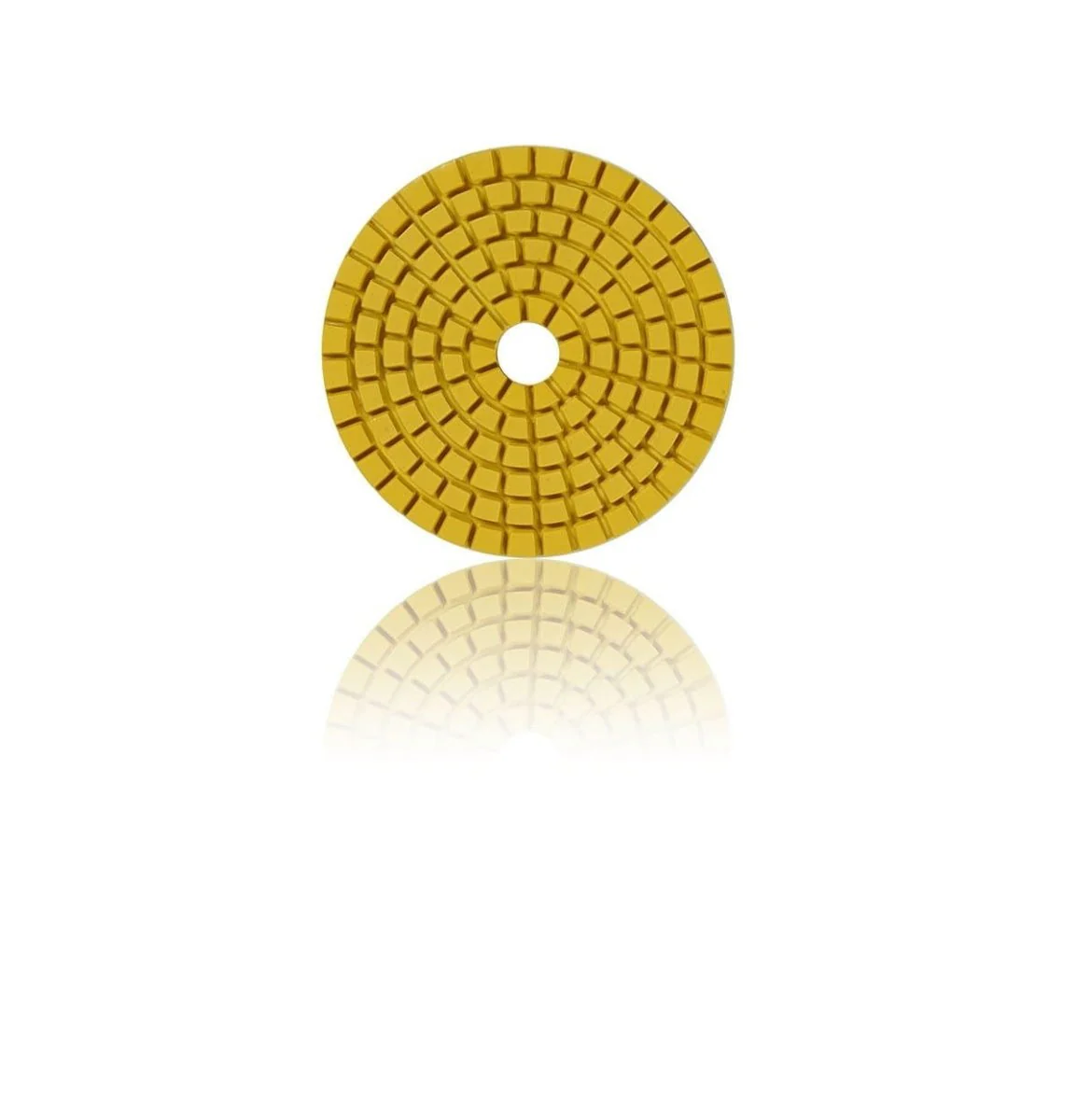

- 100 Grit – Yellow

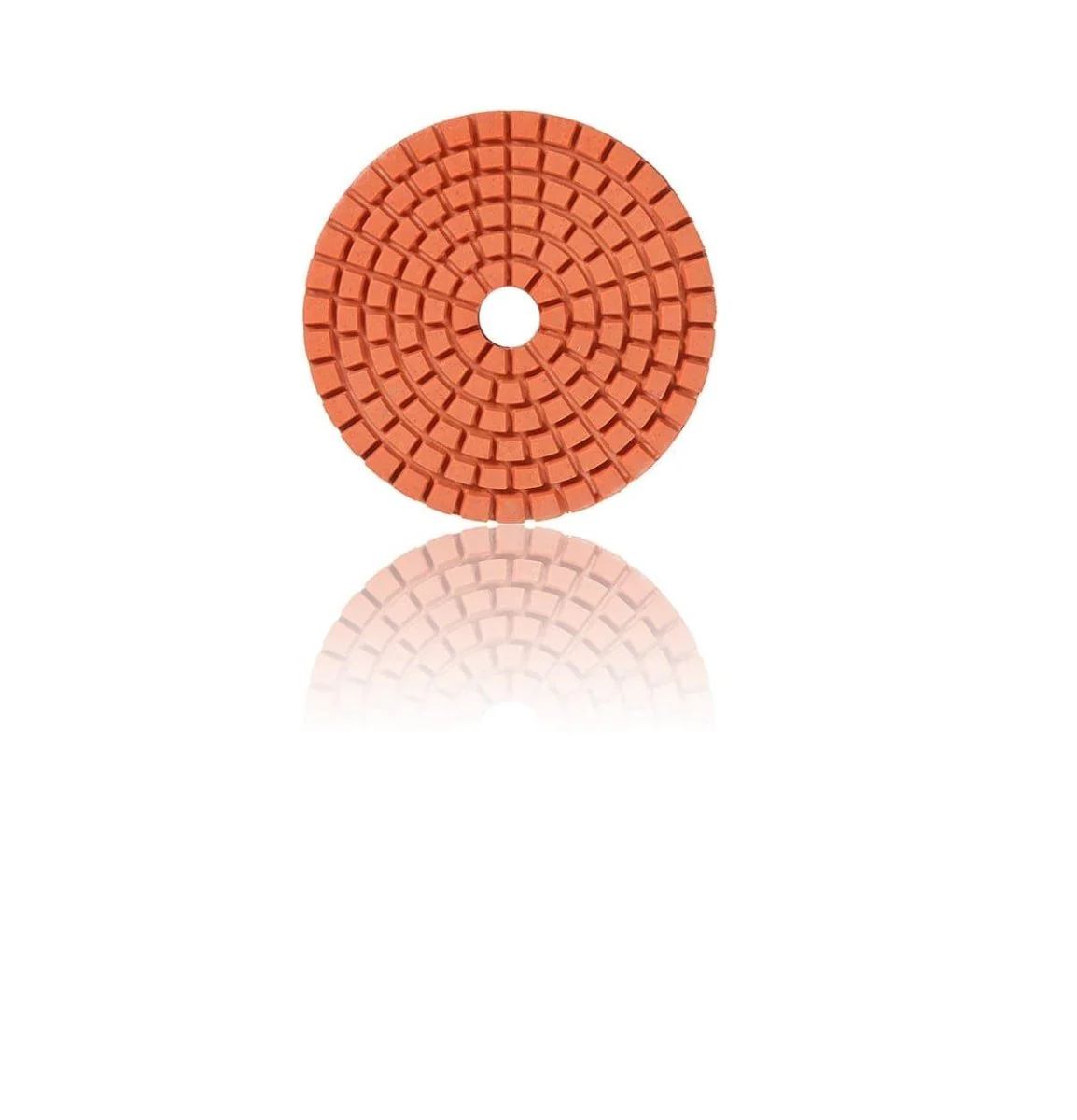

- 200 Grit – Orange

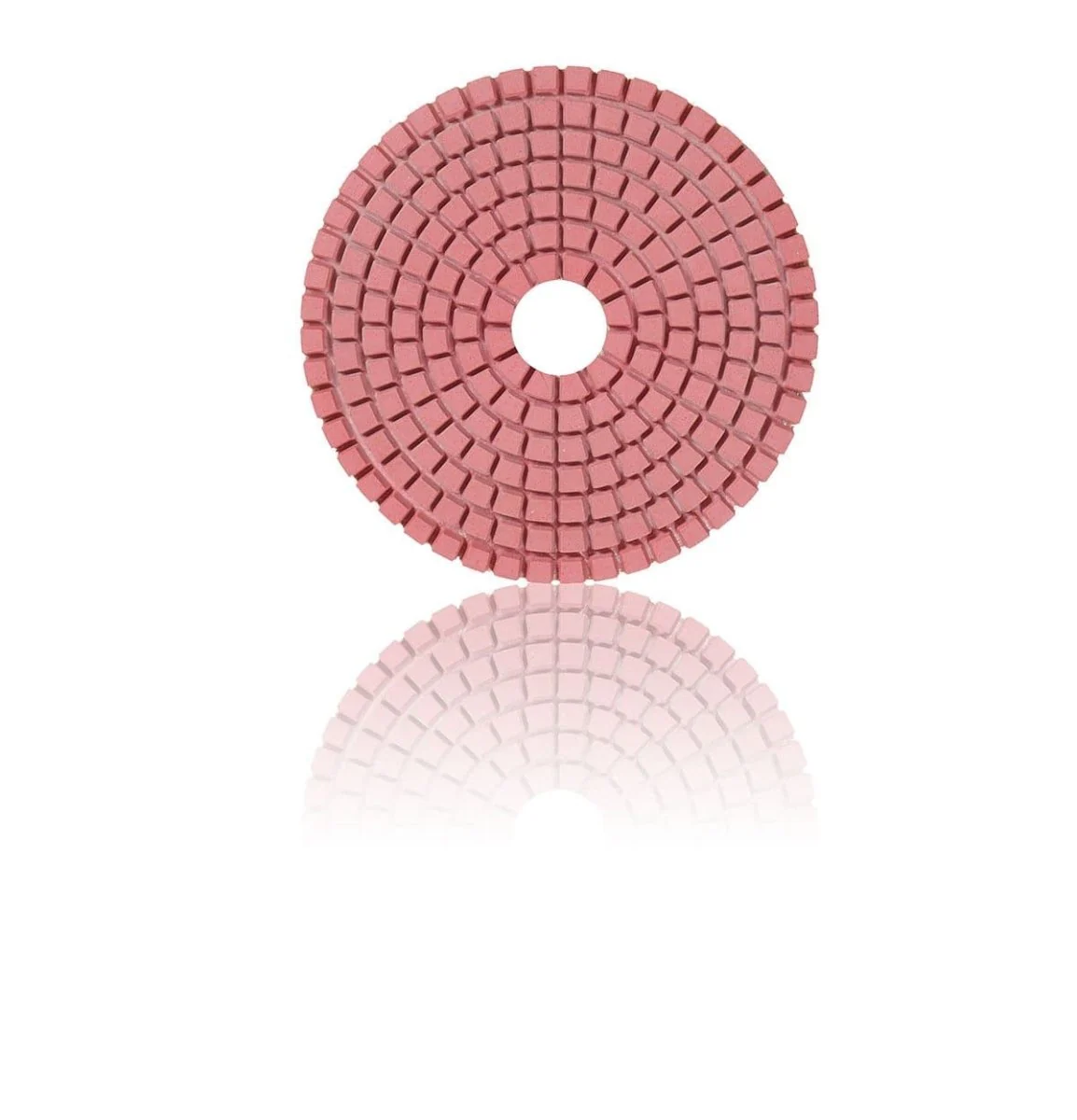

- 400 Grit – Red
- 800 Grit – Green
- 1500 Grit – Lime Green
- 3000 Grit – Pink
Original: $18.88
-65%$18.88
$6.61
Description
The 01 Series Soft Bond Epoxy Resin Tooling is a high-performance diamond polishing system engineered with a proprietary resin-bond matrix designed for durability, flexibility, and consistent cutting performance.
Built with premium abrasive diamonds evenly distributed throughout the resin bond, this tooling delivers long service life and reliable performance on hard concrete, terrazzo, and natural stone surfaces.
The face design allows for effective channeling of dust or slurry, making it suitable for both wet and dry applications while maintaining consistent polishing results.
Key Features
- High-quality resin-bond diamond matrix
- Soft bond formulation for improved friction and polish on hard surfaces
- Long life with consistent performance
- Excellent flexibility for uneven or wavy floors
- Designed for wet or dry use
- Efficient dust and slurry channeling
- Even diamond distribution for uniform wear
Recommended Uses
The 01 Series is primarily used in the final polishing stages, especially on:
- Hard concrete (400 grit and higher polishing stages)
- Terrazzo floors
- Natural stone surfaces
- Decorative concrete requiring minimal aggregate exposure
It is especially effective where a refined, high-reflectivity finish is desired.
Application
The 01 Series is designed for use on:
- Hard concrete (Mohs hardness 5 and above)
- Terrazzo
- Natural stone
Its flexible design allows it to conform to uneven or wavy surfaces, ensuring consistent contact and improved finish quality across the floor.
Technical Data
Packaging
- Varies by diameter
Coverage
Coverage varies depending on surface condition, porosity, and application technique.
- Typical range: 2,000 – 6,000 sq. ft. per set on flat, dense surfaces
- Wet grinding typically extends tool life
Specifications
- Diameters: 3", 4", 5", 7"
- Thickness: 3 mm
- Maximum Speed: 6,000 RPM
- Use: Wet or Dry
Grit / Color Guide
- 50 Grit – Gray
- 100 Grit – Yellow
- 200 Grit – Orange
- 400 Grit – Red
- 800 Grit – Green
- 1500 Grit – Lime Green
- 3000 Grit – Pink
