The Blue Diamond® General Purpose Buckets for skid steers are available in a variety of configurations.

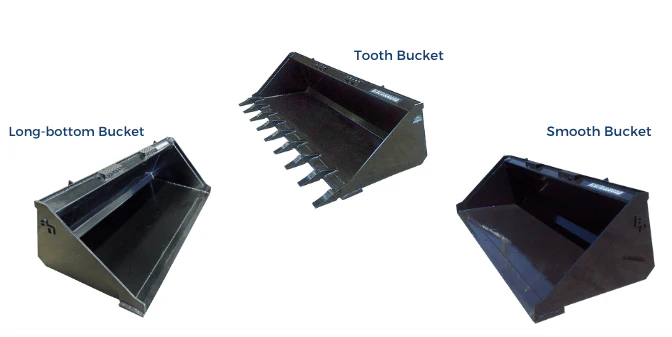

We offer weld-on cutting edge, bolt-on cutting edge, teeth, toothbar, or a long-bottom version. These well-engineered, low-profile buckets offer a powerful breakout force and great visibility. Buckets up to 72″ wide use 3/16″ material back and bottom. The 78″ and larger sizes use 1/4″ material. All standard buckets are 20″ tall and use a 3/4″ by 6″ cutting edge. The standard bottom is 30″ front to back, and the long-bottom bucket is 36″.
*Not recommended for track machines.
Features
Low profile: 20″ high, 29″ deep
Low profile, long bottom: 20″ high, 39″ deep
3/16″ wrap
3/4″ cutting edge
PART NUMBER
MODEL
STRUCK CAPACITY
WEIGHT
108090
60" Low Profile-Smooth
10.8 cu ft
334 lbs
108095
60" Low Profile-Tooth
10.8 cu ft
384 lbs
108100
66" Low Profile-Smooth
12.2 cu ft
354 lbs
108105
66" Low Profile-Tooth
12.2 cu ft
409 lbs
108110
72" Low Profile-Smooth
13.2 cu ft
378 lbs
108115
72" Low Profile-Tooth
13.2 cu ft
437 lbs
108120
78" Low Profile-Smooth
14.3 cu ft
408 lbs
108125
78" Low Profile-Tooth
14.3 cu ft
460 lbs
108130
84" Low Profile-Smooth
15.7 cu ft
436 lbs
108135
84" Low Profile-Tooth
15.7 cu ft
515 lbs
108140
60" Low Profile-Long Bottom-Smooth
15.7 cu ft
385 lbs
108150
66" Low Profile-Long Bottom-Smooth
17.3 cu ft
426 lbs
108160
72" Low Profile-Long Bottom-Smooth
18.6 cu ft
446 lbs
108165
72" Low Profile-Long Bottom-Tooth
18.6 cu ft
505 lbs
108170
78" Low Profile-Long Bottom-Smooth
20 cu ft
441 lbs
108180
84" Low Profile-Long Bottom-Smooth
22 cu ft
505 lbs
GENERAL PURPOSE BUCKET SPEC
Select Size
Select Options
From $377.30
Original: $1,078.00
-65%
Skid Steer Bucket for General Purpose—
$1,078.00
$377.30
Description
The Blue Diamond® General Purpose Buckets for skid steers are available in a variety of configurations.
We offer weld-on cutting edge, bolt-on cutting edge, teeth, toothbar, or a long-bottom version. These well-engineered, low-profile buckets offer a powerful breakout force and great visibility. Buckets up to 72″ wide use 3/16″ material back and bottom. The 78″ and larger sizes use 1/4″ material. All standard buckets are 20″ tall and use a 3/4″ by 6″ cutting edge. The standard bottom is 30″ front to back, and the long-bottom bucket is 36″.
*Not recommended for track machines.
Features
Low profile: 20″ high, 29″ deep
Low profile, long bottom: 20″ high, 39″ deep
3/16″ wrap
3/4″ cutting edge
PART NUMBER
MODEL
STRUCK CAPACITY
WEIGHT
108090
60" Low Profile-Smooth
10.8 cu ft
334 lbs
108095
60" Low Profile-Tooth
10.8 cu ft
384 lbs
108100
66" Low Profile-Smooth
12.2 cu ft
354 lbs
108105
66" Low Profile-Tooth
12.2 cu ft
409 lbs
108110
72" Low Profile-Smooth
13.2 cu ft
378 lbs
108115
72" Low Profile-Tooth
13.2 cu ft
437 lbs
108120
78" Low Profile-Smooth
14.3 cu ft
408 lbs
108125
78" Low Profile-Tooth
14.3 cu ft
460 lbs
108130
84" Low Profile-Smooth
15.7 cu ft
436 lbs
108135
84" Low Profile-Tooth
15.7 cu ft
515 lbs
108140
60" Low Profile-Long Bottom-Smooth
15.7 cu ft
385 lbs
108150
66" Low Profile-Long Bottom-Smooth
17.3 cu ft
426 lbs
108160
72" Low Profile-Long Bottom-Smooth
18.6 cu ft
446 lbs
108165
72" Low Profile-Long Bottom-Tooth
18.6 cu ft
505 lbs
108170
78" Low Profile-Long Bottom-Smooth
20 cu ft
441 lbs
108180
84" Low Profile-Long Bottom-Smooth
22 cu ft
505 lbs
GENERAL PURPOSE BUCKET SPEC
