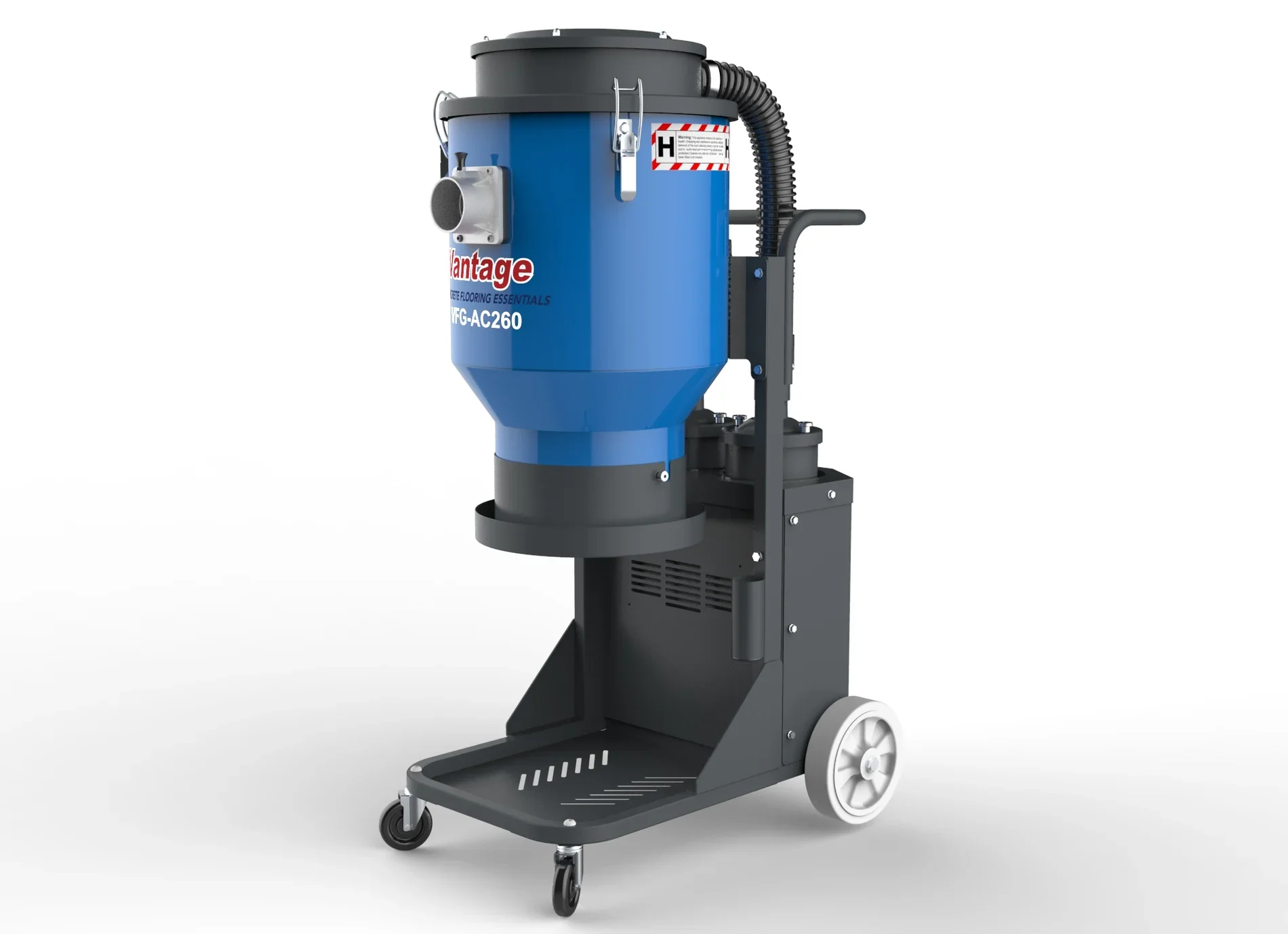

Industrial Dust Extractor
The AC260 and AC360 Industrial Dust Extractors are professional-grade dust collection systems designed for concrete grinding, polishing, surface preparation, and general industrial dust collection applications.
Both models feature advanced filtration systems, jet pulse filter cleaning, and continuous bagging dust collection technology to provide reliable dust control in demanding environments.
The AC260 offers excellent performance for medium-sized grinding and surface preparation equipment, while the AC360 delivers increased airflow and vacuum performance for larger grinders and higher-production applications.
Comparison Chart
| Specification | AC260 Dust Extractor | AC360 Dust Extractor |
|---|---|---|
| Voltage | 110V | 240V |
| Maximum Power | 2.4 kW | 3.6 kW |
| Horsepower | 3.5 HP | 5.4 HP |
| Current Draw | 18 Amps | 14.4 Amps |
| Maximum Airflow | 485 m³/h | 600 m³/h |
| Maximum Airflow | 285 CFM | 354 CFM |
| Maximum Vacuum Pressure | 200 mBar | 240 mBar |
| Maximum Vacuum Lift | 82 in | 100 in |
| Hose Length | 24.6 ft (7.5 m) | 24.6 ft (7.5 m) |
| Hose Diameter | 2 in (50 mm) | 2 in (50 mm) |
| Inlet Diameter | 2.8 in (70 mm) | 2.8 in (70 mm) |
| Filtration Efficiency | 99.5% @ 0.3 Microns | 99.5% @ 0.3 Microns |
| Filter Cleaning System | Jet Pulse | Jet Pulse |
| Dust Collection Method | Continuous Folding Bag | Continuous Folding Bag |
| Dimensions (L × W × H) | 25.7" × 30" × 57.5" | 25.7" × 40.5" × 57.5" |
| Weight | 117 lbs | 182 lbs |
Performance Comparison
| Performance Metric | AC260 | AC360 |
|---|---|---|
| Airflow | 285 CFM | 354 CFM |
| Vacuum Pressure | 200 mBar | 240 mBar |
| Vacuum Lift | 82" | 100" |
| Motor Power | 3.5 HP | 5.4 HP |
| Filtration Efficiency | 99.5% | 99.5% |
| Dust Collection Capacity | Continuous Bagging | Continuous Bagging |
AC360 Performance Advantages
Compared to the AC260, the AC360 delivers:
- 24% more airflow
- 20% greater vacuum pressure
- 22% greater vacuum lift
- 54% more horsepower
These improvements make the AC360 better suited for larger grinders, heavy dust generation, and continuous industrial operation.
Advanced Filtration System
Both dust extractors feature:
HEPA-Level Fine Dust Control
- 99.5% filtration efficiency at 0.3 microns
- Fine concrete dust containment
- Silica dust collection capability
- Improved jobsite air quality
Jet Pulse Filter Cleaning
The automatic jet pulse cleaning system:
- Maintains consistent airflow
- Extends filter life
- Reduces maintenance interruptions
- Maximizes vacuum performance
Continuous Bagging System
Benefits include:
- Dust-free disposal
- Easy debris containment
- Increased operator safety
- Simplified cleanup procedures
Recommended Applications
AC260 Dust Extractor
Ideal for:
- Hand grinders
- Edge grinders
- Crack chasing equipment
- Surface preparation tools
- Small floor grinders
- Residential projects
- General contractor applications
- 110V jobsite power environments
AC360 Dust Extractor
Recommended for:
- Large floor grinders
- Concrete polishing machines
- Industrial surface preparation
- Scarifiers
- Shot blasters
- Large commercial projects
- Manufacturing facilities
- Continuous-duty applications
Common Applications
Both models are suitable for:
- Concrete grinding
- Concrete polishing
- Surface preparation
- Coating removal
- Epoxy removal
- Thinset removal
- Glue removal
- Scarifying
- Dust control
- Industrial cleaning
Parts Manual
Includes:
- Exploded parts diagrams
- Replacement part numbers
- Assembly drawings
- Service components
Technical Data Sheet (TDS)
Includes:
- Performance specifications
- Electrical requirements
- Airflow ratings
- Filtration specifications
- Dimensional data
