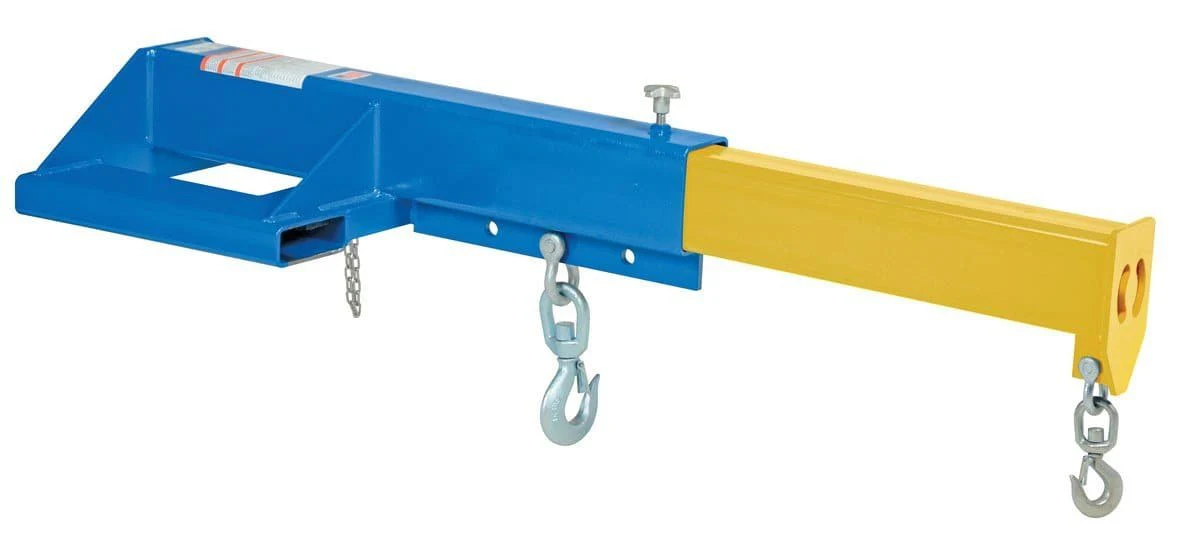

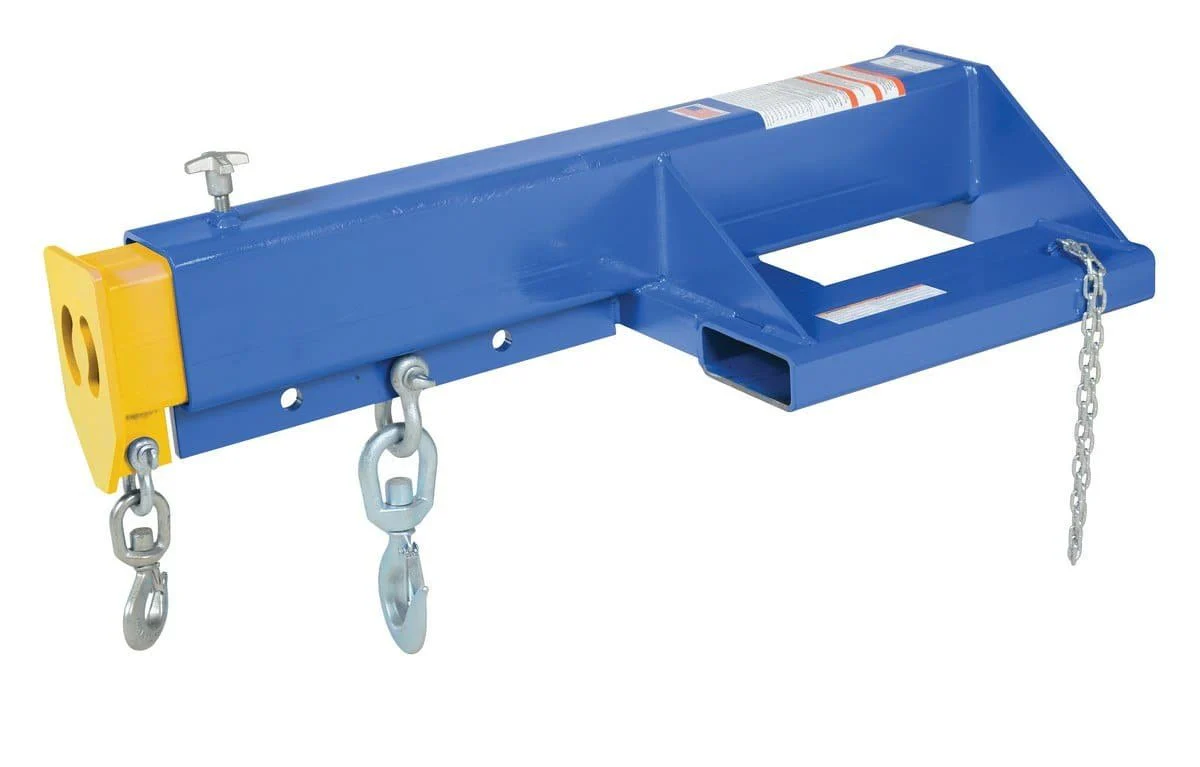

Shorty Lift Master Booms
Short boom length is ideal for lifting heavy materials in tight areas.
Choose either telescoping or non-telescoping design. Includes built-in fork pockets, safety restraint and two lifting hooks. Overall width is 32", 38", and 44". Steel construction.
| Shorty Lift Master Booms | ||||||||||||
| Model | Image | Description | Overall Height | Overall Length | Capacity (lbs.) | Wt. (lbs.) | ||||||
| LMS-EBT-46-4 |
|

|
Telescoping | 13-1/2" | 55-1/4" to 93" | 4,000 | 248 | |||||
| LMS-EBT-46-6 |  |
|
Telescoping | 13-1/2" | 55-1/4" to 93" | 6,000 | 296 | |||||
| LMS-EBT-46-8 |  |
|
Telescoping | 15" | 53-7/8" to 90-7/8" | 8,000 | 430 | |||||
| LMS-EBNT-40-4 |  |
|
Non-Telescoping | 13-5/16" | 50-3/4" | 4,000 | 214 | |||||
| LMS-EBNT-40-6 |  |
|
Non-Telescoping | 13-5/16" | 50-3/4" | 6,000 | 244 | |||||
| LMS-EBNT-40-8 |  |
|
Non-Telescoping | 11-1/2" | 49-3/8" | 8,000 | 32 | |||||
KEY: = Approval Drawing --
= Warranty -- = Testing Certificate
Select Size
From $414.41
Original: $1,184.02
-65%Shorty Lift Master Booms—
$1,184.02
$414.41
Description
Short boom length is ideal for lifting heavy materials in tight areas.
Choose either telescoping or non-telescoping design. Includes built-in fork pockets, safety restraint and two lifting hooks. Overall width is 32", 38", and 44". Steel construction.
| Shorty Lift Master Booms | ||||||||||||
| Model | Image | Description | Overall Height | Overall Length | Capacity (lbs.) | Wt. (lbs.) | ||||||
| LMS-EBT-46-4 |
|
|
Telescoping | 13-1/2" | 55-1/4" to 93" | 4,000 | 248 | |||||
| LMS-EBT-46-6 | |
|
Telescoping | 13-1/2" | 55-1/4" to 93" | 6,000 | 296 | |||||
| LMS-EBT-46-8 | |
|
Telescoping | 15" | 53-7/8" to 90-7/8" | 8,000 | 430 | |||||
| LMS-EBNT-40-4 | |
|
Non-Telescoping | 13-5/16" | 50-3/4" | 4,000 | 214 | |||||
| LMS-EBNT-40-6 | |
|
Non-Telescoping | 13-5/16" | 50-3/4" | 6,000 | 244 | |||||
| LMS-EBNT-40-8 | |
|
Non-Telescoping | 11-1/2" | 49-3/8" | 8,000 | 32 | |||||
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
