Sheet Metal Air Shear SH-5216A

Built of fully integrated and welded all-steel plate, this pneumatic shear will last for many years.

The air-powered sheet metal shear is perfect for schools and shops cutting 16 gauge mild steel or lighter. Order this air sheet metal shear from Baileigh Industrial today.

• Cuts up to 52”-wide sheet metal.
• Requires only compressed air between 90 and 115 psi.* No electrical power needed.
• Regulator lets you control the airflow.
• Can cut at 20 strokes per minute for high production.
• High-chromium carbon blades have multiple cutting surfaces for extended life between re-sharpening.
• Oilers make maintenance easy and allow you to keep the machine running smoothly with less friction.

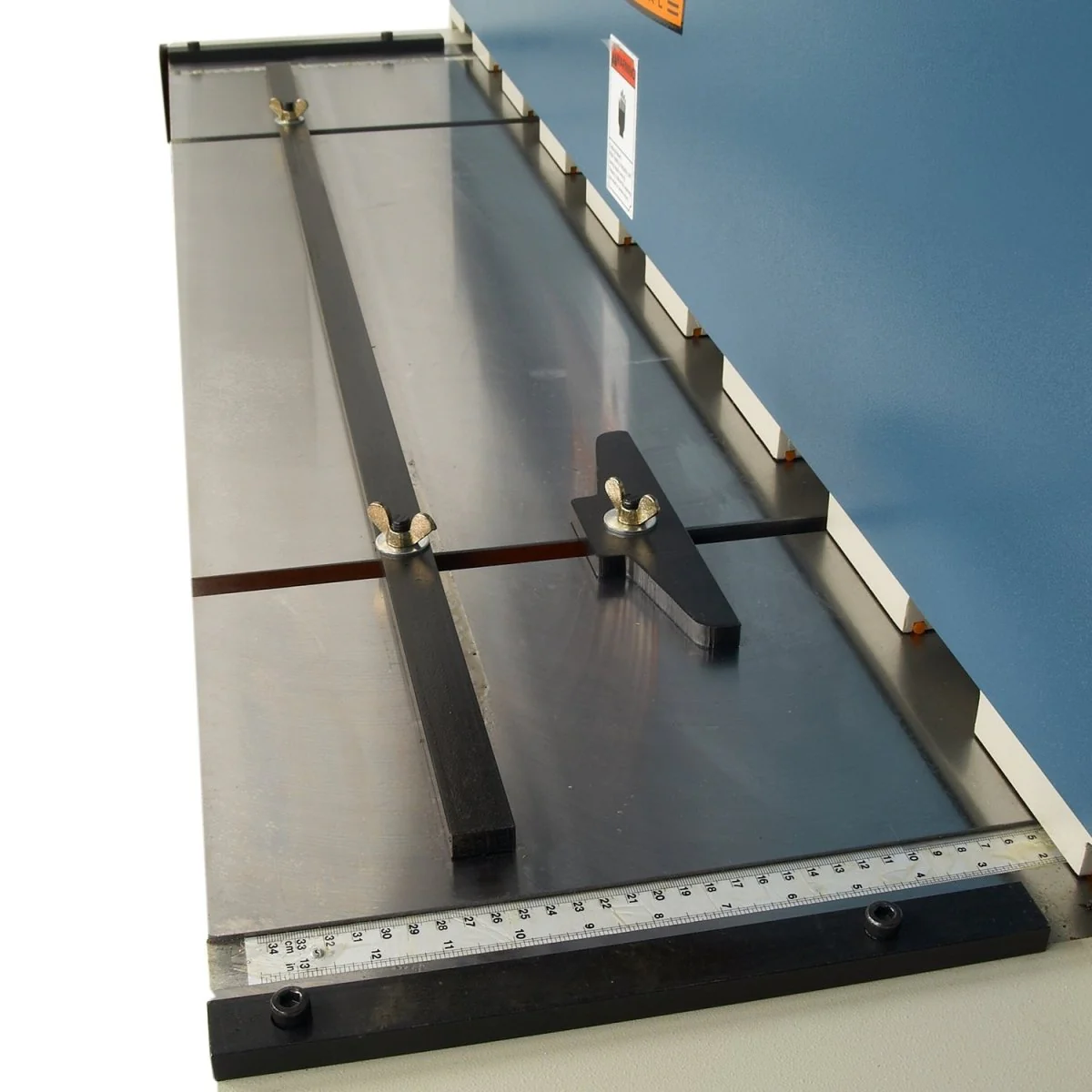

• Working table offers integrated squaring stops with scale.
• Includes front and back material supports as well as a side guide.
• Manual rack and pinion back gauge with quick lock and measuring scale helps you easily make repeatable cuts.
• This Pneumatic Sheet Metal Shear is covered by a 1-year parts warranty.
• We keep replacement blades and other parts in stock at our Wisconsin headquarters.
• Comes with lifetime technical support by phone from our in-house team of knowledgeable reps.

Item Number	SH-5216A
Back Gauge Length	24"
Shear Length	52"
Thickness (SS)	16 ga. (20 ga.)
Working Height	32"
Front Gauge Length	24"
Blade Angle	1°
Power	Pneumatic
Shipping Weight	1400lbs
Minimum Material Thickness	24ga
Shipping Dimensions (Inches)	75x33x55

* specifications subject to change without notice.
