Rotary Cutter โ€“ 12' Flex-Wing

Rotary Cutter โ€“ 12' Flex-Wing

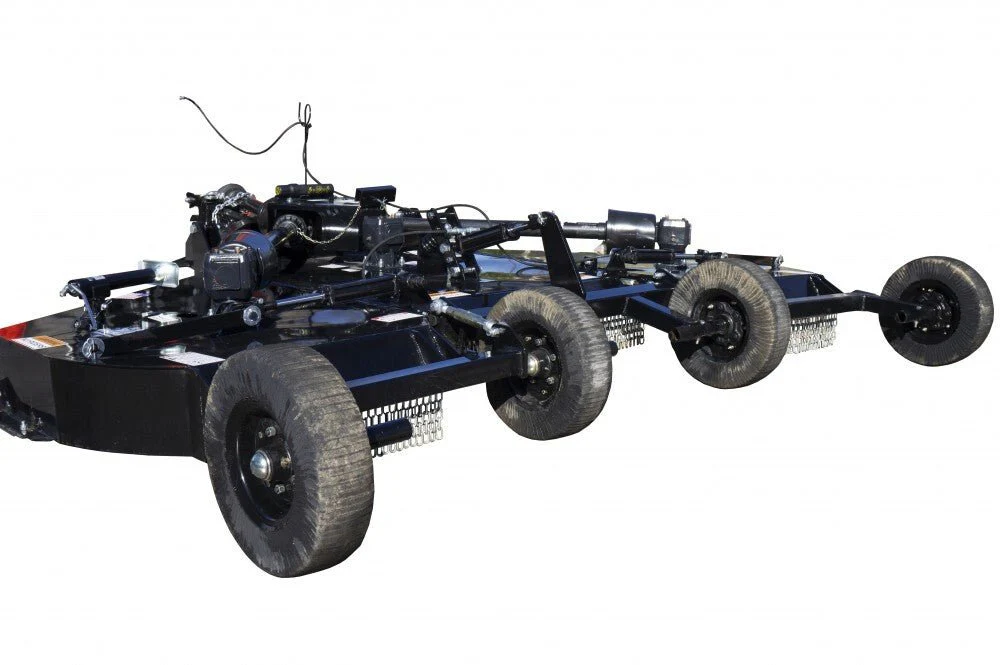

With its smooth top deck and spring suspension, the Blue Diamondยฎ 12โ€ฒ Flex-Wing Rotary Cutter is ideal for medium duty applications such as weeds, grass, and brush up to 2โ€ diameter.

Designed for use with compact tractors as small as 35 hp, the cutter requires only one hydraulic outlet. For its 144โ€ cutting width, the cutter uses three independent spindles with two free-swinging blades each to reduce the shock of hitting a stationary object. Slip clutches protect the gearboxes and drivelines from damage. Standard equipment includes driveline shields, clutch shields, chain discharge shields, and a towing safety chain.

Features

  • Smooth top deck design
  • Protected gearboxes and drivelines
  • 144โ€ cutting width
  • 2-year warranty

Product Specs

MODEL 12'
MINIMUM HORSEPOWER 35 hp (Gear-drive Trans)
HITCH Swivel Clevis
DECK THICKNESS 10 GA
DECK HEIGHT 11โ€
SIDE SKIRT MATERIAL 3/16โ€
HINGE RODS 1โ€
SUSPENSION Single Spring
OUTBOARD GEARBOX 75hp
SPLITTER GEARBOX 175 hp
GEARBOX 540 RPM
BLADES 1/2โ€ x 3โ€ w/lift
BLADE TIP SPEED 15,657 FPM
BLADE OVERLAP 6โ€
BLADE CARRIERS 3/16โ€ Formed Plate w/3/4โ€ x 5โ€ x 20โ€ Blade Bar
CUT WIDTH 144"
OVERALL WEIGHT 2,630 LB
CUTTING CAPACITY UP TO 2"
12 FT FLEX WING CUTTER MANUAL
12 FT FLEX WING CUTTER SPEC SHEET
$8,591.45

Original: $24,547.00

-65%
Rotary Cutter โ€“ 12' Flex-Wingโ€”

$24,547.00

$8,591.45
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

Description

With its smooth top deck and spring suspension, the Blue Diamondยฎ 12โ€ฒ Flex-Wing Rotary Cutter is ideal for medium duty applications such as weeds, grass, and brush up to 2โ€ diameter.

Designed for use with compact tractors as small as 35 hp, the cutter requires only one hydraulic outlet. For its 144โ€ cutting width, the cutter uses three independent spindles with two free-swinging blades each to reduce the shock of hitting a stationary object. Slip clutches protect the gearboxes and drivelines from damage. Standard equipment includes driveline shields, clutch shields, chain discharge shields, and a towing safety chain.

Features

  • Smooth top deck design
  • Protected gearboxes and drivelines
  • 144โ€ cutting width
  • 2-year warranty

Product Specs

MODEL 12'
MINIMUM HORSEPOWER 35 hp (Gear-drive Trans)
HITCH Swivel Clevis
DECK THICKNESS 10 GA
DECK HEIGHT 11โ€
SIDE SKIRT MATERIAL 3/16โ€
HINGE RODS 1โ€
SUSPENSION Single Spring
OUTBOARD GEARBOX 75hp
SPLITTER GEARBOX 175 hp
GEARBOX 540 RPM
BLADES 1/2โ€ x 3โ€ w/lift
BLADE TIP SPEED 15,657 FPM
BLADE OVERLAP 6โ€
BLADE CARRIERS 3/16โ€ Formed Plate w/3/4โ€ x 5โ€ x 20โ€ Blade Bar
CUT WIDTH 144"
OVERALL WEIGHT 2,630 LB
CUTTING CAPACITY UP TO 2"
12 FT FLEX WING CUTTER MANUAL
12 FT FLEX WING CUTTER SPEC SHEET
