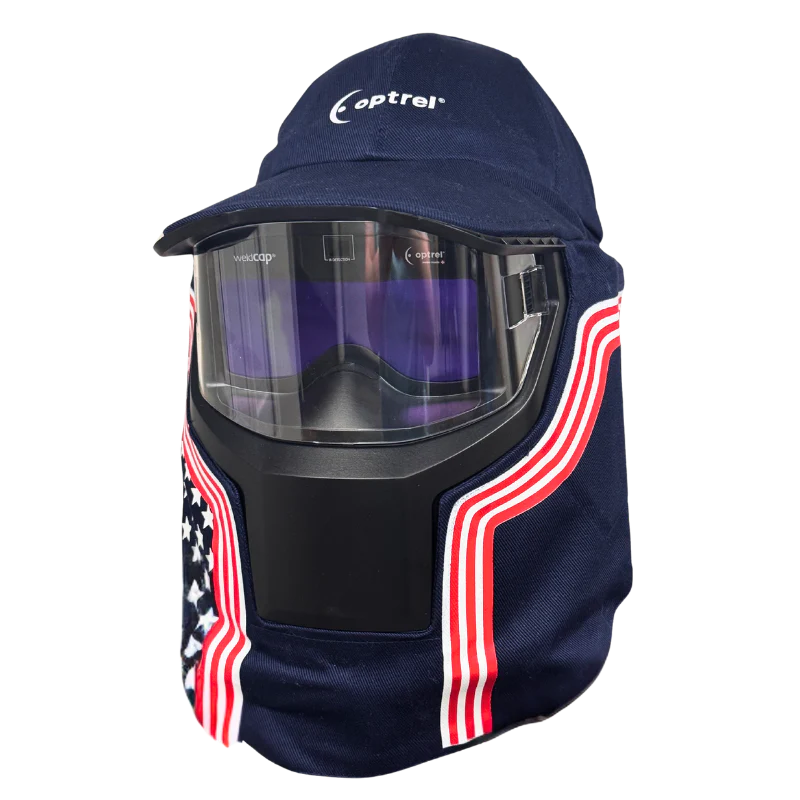

Optrel Weldcap USA Welding Cap
The Optrel Weldcap USA is a special-edition version of the popular Weldcap Series, combining the lightweight comfort of a flame-retardant welding cap with the protection of an auto-darkening welding helmet.
Designed for welders who work in confined spaces, overhead positions, fabrication shops, and maintenance environments, the Weldcap USA provides exceptional mobility while maintaining professional-grade eye protection. It is a limited-edition model available while supplies last.
Unlike traditional welding helmets, the Weldcap USA features a compact flip-down auto-darkening lens integrated into a flame-resistant cap design, providing significantly greater freedom of movement and a wider field of vision.
Key Features
Lightweight Welding Cap Design
The Weldcap USA combines rigid protective components with flame-retardant textiles to create one of the lightest welding protection systems available.
Benefits include:
- Reduced neck strain
- Improved mobility
- Greater comfort during long shifts
- Easier access in confined work areas
- Better overhead welding ergonomics
The complete system weighs approximately 400 g (0.88 lbs.).
Expanded Field of Vision
The Weldcap's ergonomic nose-cutout design positions the lens closer to the eyes and provides:
- Up to 270% greater field of view than a standard 2" x 4.25" welding lens
- Improved peripheral visibility
- Better situational awareness
- Enhanced weld positioning accuracy
Auto-Darkening Welding Lens
The integrated welding filter automatically darkens when an arc is detected.
Lens Specifications
- Light State: Shade 3
- Dark Shade Range: Shade 9–12
- Wide-angle detection sensor
- Automatic operation (no on/off switch required)
- UV and IR protection at all shade settings
Grinding Mode
Built-in grinding mode allows the user to perform grinding operations while maintaining a bright shade 3 viewing state.
Benefits include:
- No helmet changes required
- Faster workflow transitions
- Improved visibility during prep work
Flame-Resistant Textile Construction
The textile cap assembly is manufactured from flame-retardant materials meeting:
- EN ISO 11611
- Class 1
- A1 + A2 protection ratings
The textile components are removable and washable for improved hygiene and service life.
Technical Specifications
| Specification | Value |
|---|---|
| Product Number | 1008.702 |
| Light State | Shade 3 |
| Dark State | Shade 9–12 |
| Sensors | Wide-Angle Detection Sensor |
| Optical Classification | 1/1/2/2 |
| Power Supply | 2 × CR2032 Batteries |
| Switching Time (Light to Dark) | 0.16 ms |
| Switching Time at 55°C | 0.11 ms |
| Dark to Light Delay | 0.3 sec |
| Viewing Angle Downward | +37° |
| Viewing Angle Sideward | +25° |
| Grinding Mode | Yes (Shade 3) |
| Impact Rating | EN 175 F (45 m/s) |
| Weight | Approx. 400 g |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +80°C |
| Warranty | 2 Years |
Applications
The Weldcap USA is ideal for:
- TIG Welding (GTAW)
- MIG/MAG Welding (GMAW)
- Stick Welding (SMAW)
- Gas Welding
- Spot Welding
- Micro Plasma Welding
- Maintenance Welding
- Structural Fabrication
- Pipe Welding
- Repair Operations
- Industrial Fabrication
Benefits
Superior Comfort
The lightweight cap-style design significantly reduces fatigue compared to traditional welding helmets.
Excellent Visibility
The oversized viewing area helps welders maintain awareness of their surroundings and workpiece.
Ideal for Tight Spaces
The low-profile design works exceptionally well in confined work environments where conventional welding helmets can be restrictive.
Easy Maintenance
The textile components can be removed and cleaned, helping extend product life and improve hygiene.
Included Features
- Auto-darkening welding lens
- Flame-resistant textile cap
- Wide-angle arc detection sensor
- Integrated grinding mode
- Adjustable headband system
- Replaceable CR2032 batteries
Original: $187.00
-65%$187.00
$65.45
