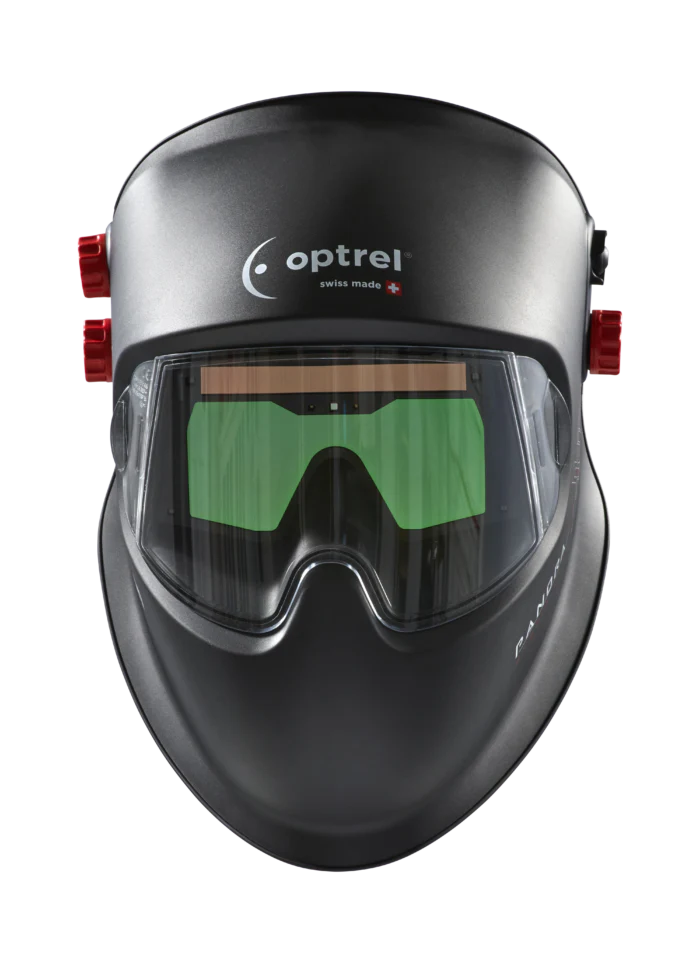

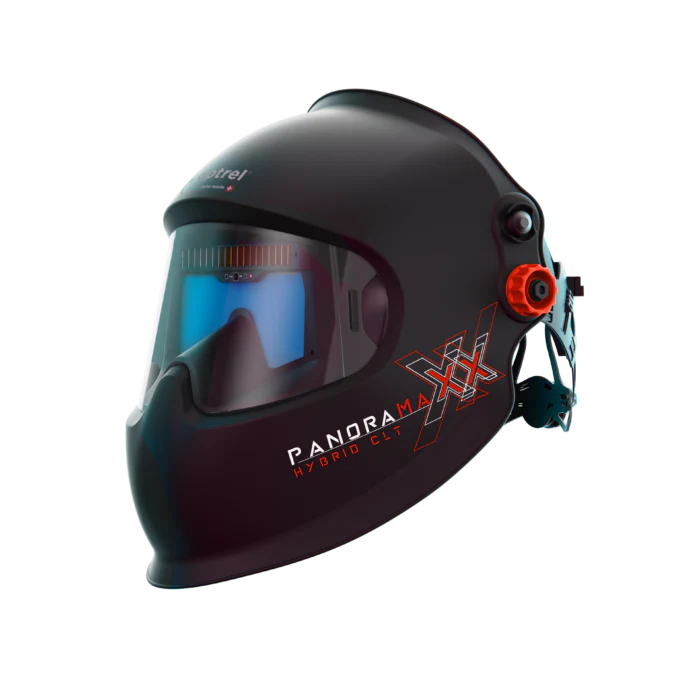

Optrel Panoramaxx Hybrid CLT Laser Welding Helmet

Professional Laser-Welding Protection

The Optrel Panoramaxx Hybrid CLT delivers superior protection for laser welding applications with Crystal Lens Technology 2.0 and ShadeTronic® automatic shade adjustment from 2.5/4-12. Features true-color view without green or blue tint for realistic color perception during welding operations.

Advanced Technology Features

• Panoramic XXL field of view - 6 times larger than standard auto-darkening filters
• Five sensors for maximum safety in difficult lighting conditions
• FadeTronic® opening delay reduces eye fatigue
• Rechargeable Li-polymer battery with solar panel backup
• Ultra-fast switching time: 0.090ms light to dark
• Grinding mode for brightest vision during grinding work

Applications

• Laser welding – laser range 1030 – 1100 nm
• Electrode Welding (Stick Welding, SMAW)
• MIG/MAG (GMAW)
• GMAW High melting rate process
• Flux Cored Wire Welding
• TIG Welding (GTAW)
• Plasma Arc Welding
• Plasma Cutting
• Gas Welding
• Grind Mode

Comfort and Durability

Lightweight at 685g with IsoFit® headgear for three-dimensional adjustment. Certified to CE, ANSI Z87.1, and multiple international standards. Suitable for all electrical welding processes plus laser welding in 1000-1100nm range. Includes 2-year warranty with optional extension to 3 years.

Techdata

Shade Levels	Inactive: Shade level 2.5 Active, Manual: Shade level 3-8 ShadeTronic 4-12
Energy Supply	Solar cells, Li-polymer battery pack, chargeable via Micro-USB
Battery Life	300 to 500 charging cycles
Sensors	Five sensors
Sensitivity	Continuously, new with “Super High” sensitivity
Switching time	Light to Dark: 0.090ms at 20°C, 0.070ms at 55°C Dark to Light: 0.1s to 2.0s (with FadeTronic)
Field of Vision	2.3 to 6.3 times bigger than a 100 x 50 mm standard ADF
Classification EN379	1/1/1/1
Eye Protection	UV/IR protection: maximum protection at all shade levels Laser protection: 1030-1100nm 16321 OS W3/4-9/5<13 V2 1030-1100 D LB7 IR LB8 OS 1030-1100 OD7 C5 PS3 ISO 19818-1 OS CE
Operating Temperature	-10°C to +55°C / 14°F to 131°F
Storage Temperature	-20°C to +70°C / -4°F to 158°F
Total Weight	685g / 24.02 oz
Certifications	CE, UKCA, complies to ANSI Z87.1, AS/NZS 1337.1, AS/NZS 1338.1, CSA Z94.3
Scope of Delivery	Welding helmet, Optrel IsoFit® Headgear, Operating Instructions, Storage Bag, Micro USB Charging Cable, Front Cover Lens, Warranty Card
Guarantee	2 years with additional 1 year warranty extension (excluding battery) if the product is registered within the first 6 months: click here to register

All Features

Advanced Optics & Visibility

• Crystal Lens Technology 2.0
  Ultra-clear, bright view before, during, and after welding with a light state of 2.0 for maximum visibility.
• True-Color View
  High-contrast, realistic color perception with no green or blue tint, improving weld accuracy.
• Panoramic XXL Field of View
  Delivers up to 6x the viewing area of standard welding helmets for unmatched awareness.
• Anti-Glare Protection
  Reduces glare to improve visibility and minimize eye fatigue during long jobs.

---

Intelligent Auto-Darkening System

• ShadeTronic®
  Automatically adjusts shade levels to match changing arc brightness in real time.
• FadeTronic® (Twilight Function)
  Smooth, adjustable transition from dark to light state to reduce eye strain.
• Delay Function
  Controls how quickly the lens returns to light state after welding.

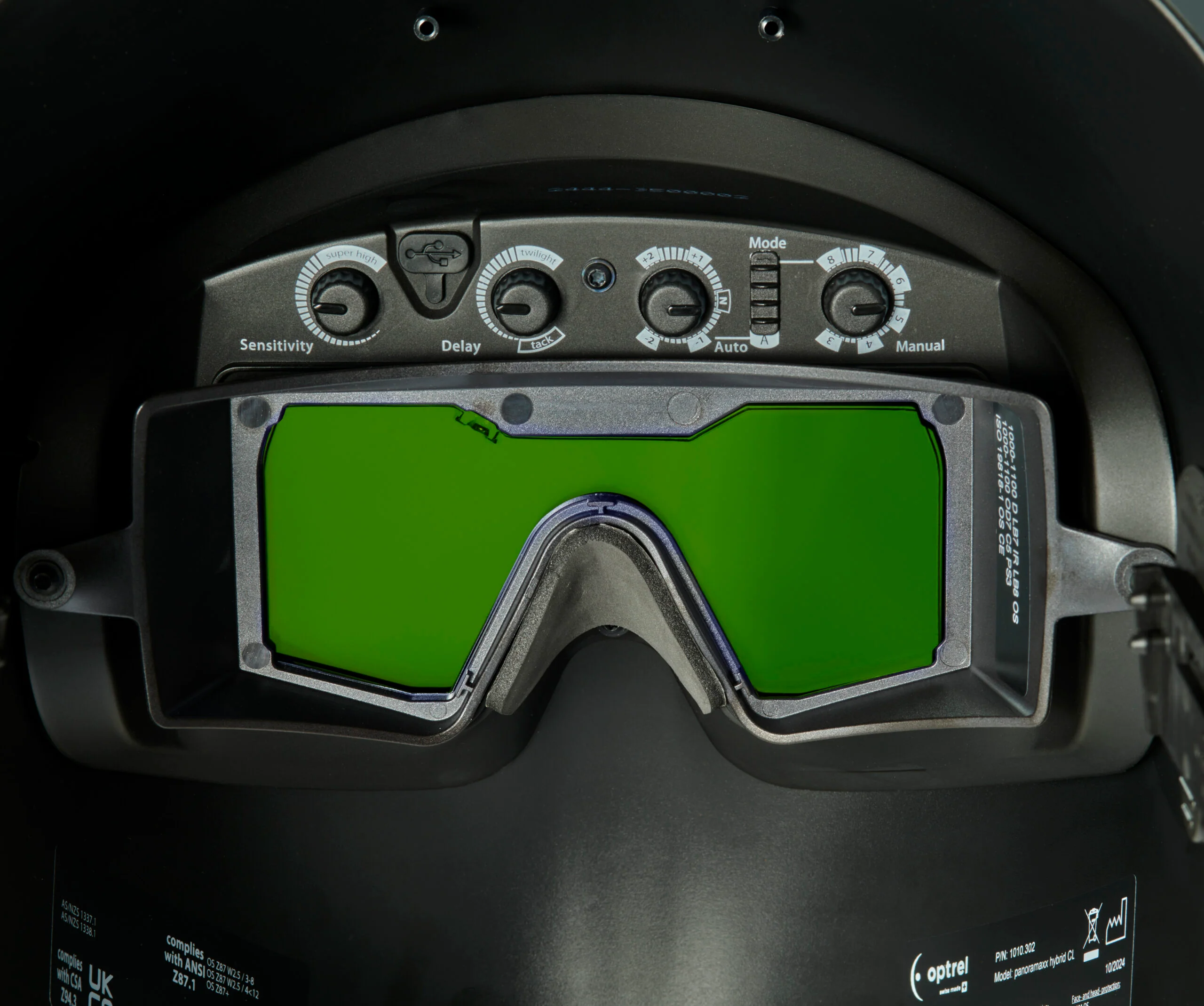

• Sensitivity Regulation
  Fine-tunes lens responsiveness based on your environment and welding conditions.
• Multi Sensor Detection (Up to 5 Sensors)
  Ensures consistent arc detection even in challenging lighting conditions.

---

Laser & Safety Protection

• Laser Protection System

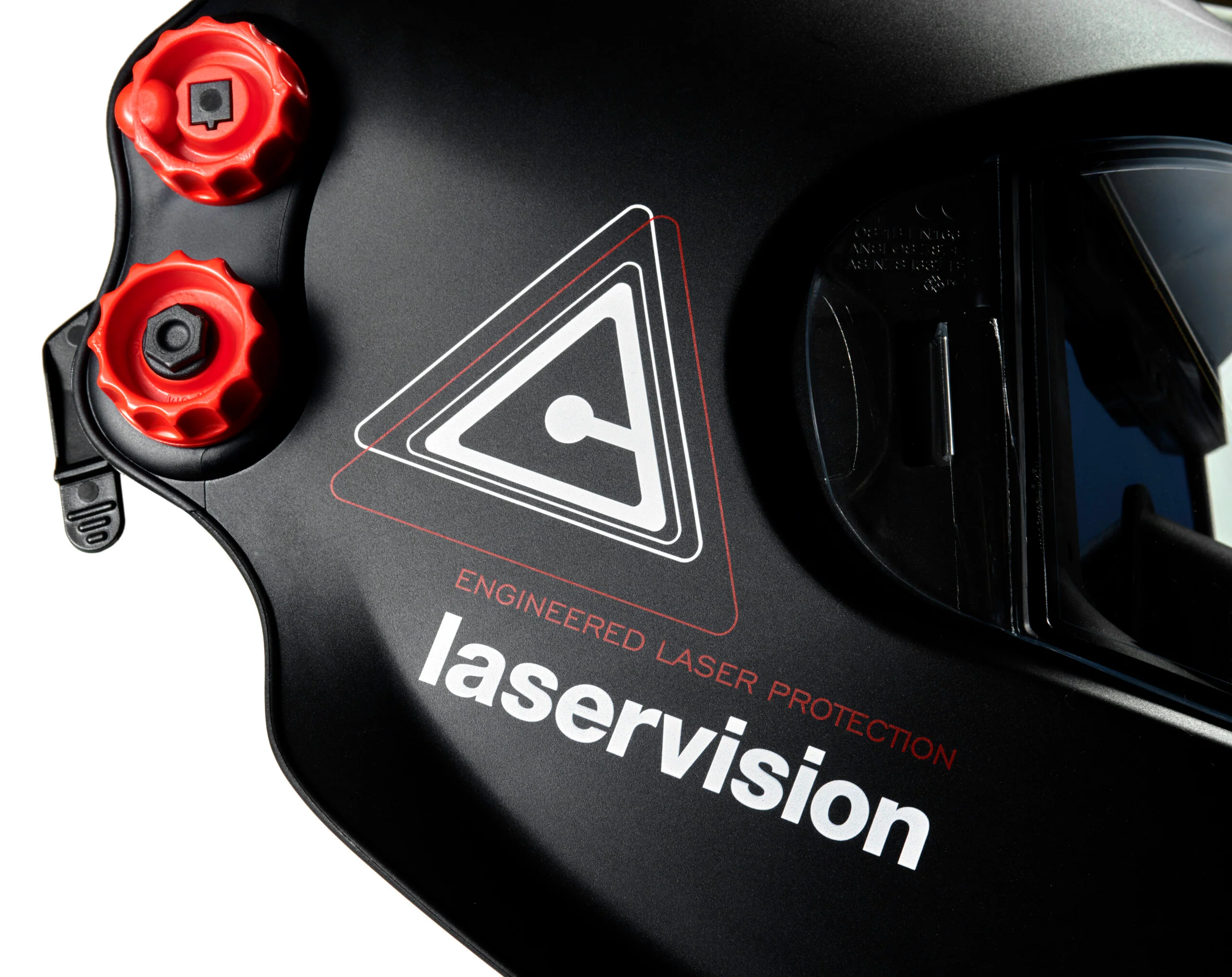

  Designed for hand-held laser welding, with integrated side protection to block scattered radiation.

---

Power & Convenience

• Rechargeable Battery System
  Lithium-polymer battery charges via solar power or USB, ensuring continuous operation.
• Grinding Mode
  Provides the brightest possible view for grinding and non-welding tasks.

---

Comfort & Ergonomics

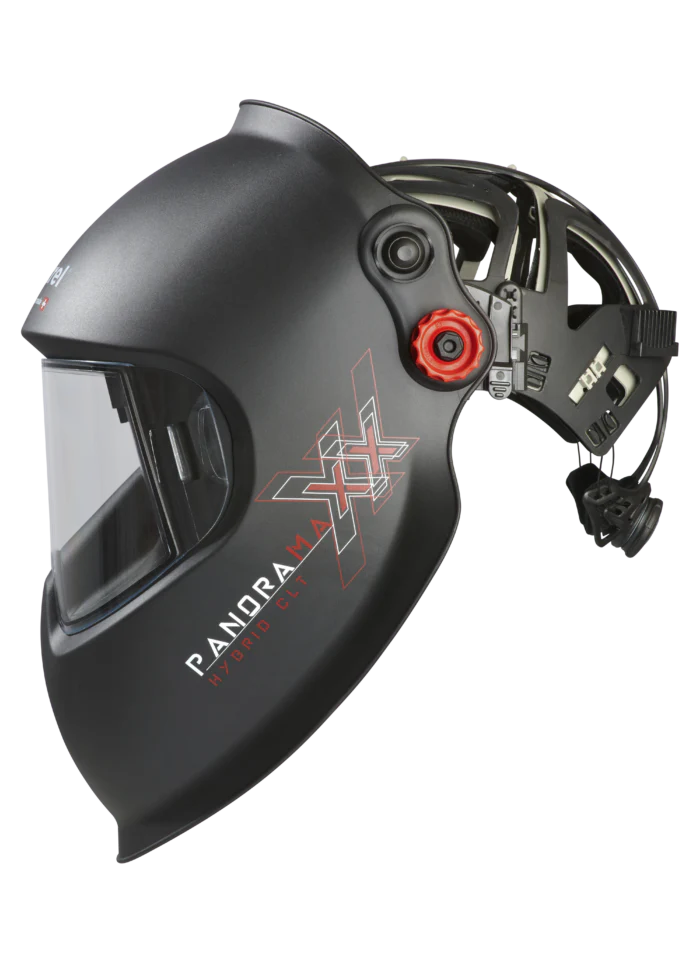

• IsoFit® Headgear
  Fully adjustable 3D fit that adapts to any head shape for all-day comfort.
• Patented Excenter Adjustment
  Precisely positions the helmet with a simple twist for optimal balance.
• Position Locker
  Keeps the helmet securely in place—whether raised or lowered.

---

Jobsite Versatility

• Hard Hat Adapter Compatible
  Works seamlessly with industrial safety helmet accessories.
• Optimized for Overhead Welding
  Rounded front design improves performance and comfort for overhead applications.
