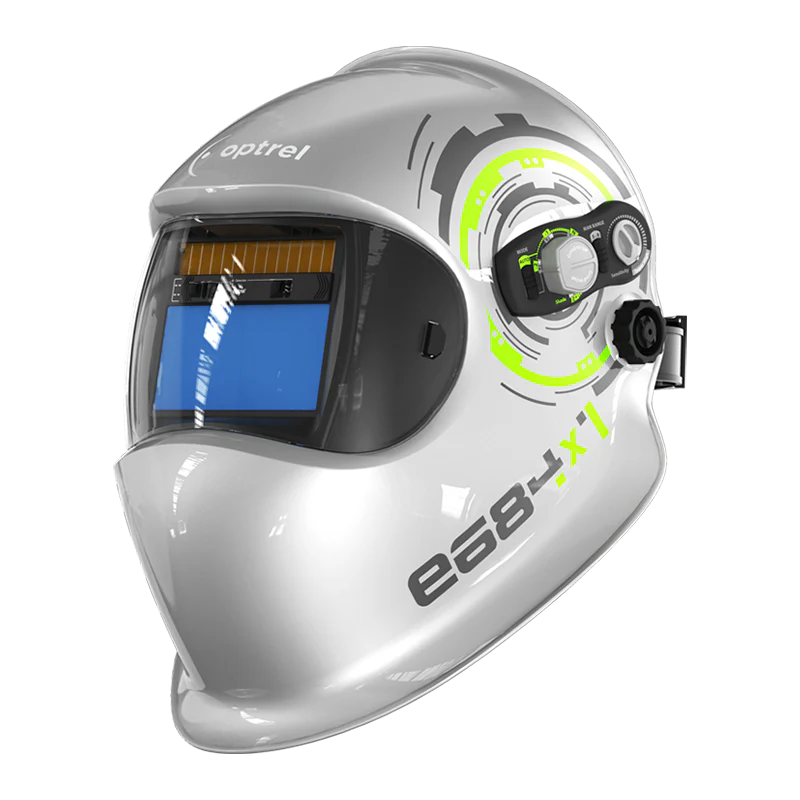

Optrel e684 Silver Auto-Darkening Welding Helmet
The Optrel e684 Silver is a high-end auto-darkening welding helmet designed for professional fabrication, industrial welding, and precision TIG/MIG applications where optical clarity and automatic shade control are critical.
It is part of Optrel’s Sphere Series and features the brand’s Adaptive Shade Autopilot (ShadeTronic®) system, which continuously adjusts the lens shade based on arc brightness and welding conditions.Â
This model is widely used in demanding environments such as steel fabrication, maintenance welding, and manufacturing because it combines true-color optics, fast switching speed, and 1/1/1/1 optical clarity with lightweight ergonomic design.
Key Features
Adaptive Shade Autopilot (ShadeTronic®)
Automatically adjusts shade levels in real time based on arc intensity, reducing or eliminating the need for manual shade changes during different welding processes.Â
True Color Vision
Provides a realistic color view of the weld pool and base material, improving accuracy, puddle control, and edge definition compared to traditional, green-tinted filters.
Optical Class 1/1/1/1
Rated at the highest EN379 optical standard:
- Optical clarity: 1
- Diffusion of light: 1
- Homogeneity: 1
- Angular dependence: 1
This ensures consistent clarity from all viewing angles, especially useful for out-of-position welding.
FadeTronic® Twilight Function
Instead of instantly switching from dark to light, the lens gradually returns to clear mode after welding, reducing eye strain from sudden brightness changes.
Grind Mode
Provides a bright, clear viewing state for grinding and surface prep without removing the helmet.
Sensor Technology
- 3 arc sensors
- High sensitivity mode for low-amp TIG
- Adjustable detection sensitivity for complex environments
Comfort Headgear
Ergonomic headband designed for:
- Even weight distribution
- Reduced neck strain
- Extended wear comfort in industrial use
Technical Specifications
| Category | Specification |
|---|---|
| Optical Classification | 1/1/1/1 |
| Light State | Shade 4 |
| Auto Shade Range | 5 – 13 |
| Manual Range | 5–9 / 9–13 |
| Sensors | 3 |
| Switching Speed (light-dark) | ~0.110–0.170 ms |
| Switching Speed (dark-light) | 0.1 – 2.0 s |
| Weight | ~500 g (17.6 oz) |
| Power Source | Solar cells + 2 Ă— CR2032 batteries |
| Operating Temp | approx. –10°C to +70°C |
Applications
The e684 Silver is suitable for:
- TIG welding (GTAW)
- MIG/MAG welding (GMAW)
- Stick welding (SMAW)
- Flux-cored welding
- Plasma cutting
- Micro-plasma welding
- General fabrication and maintenance work
Benefits
- Extremely clear weld pool visibility (1/1/1/1 optical class)
- Automatic shade adjustment reduces operator fatigue
- Lightweight design improves all-day comfort
- Excellent performance for low-amp TIG welding
- True color optics improve precision and control
- Fast switching reduces eye exposure risk
Limitations
- Premium price compared to standard helmets
- Uses proprietary lenses and consumables (higher long-term cost)
- Not designed for laser welding applications
- Advanced features may be unnecessary for light-duty users
