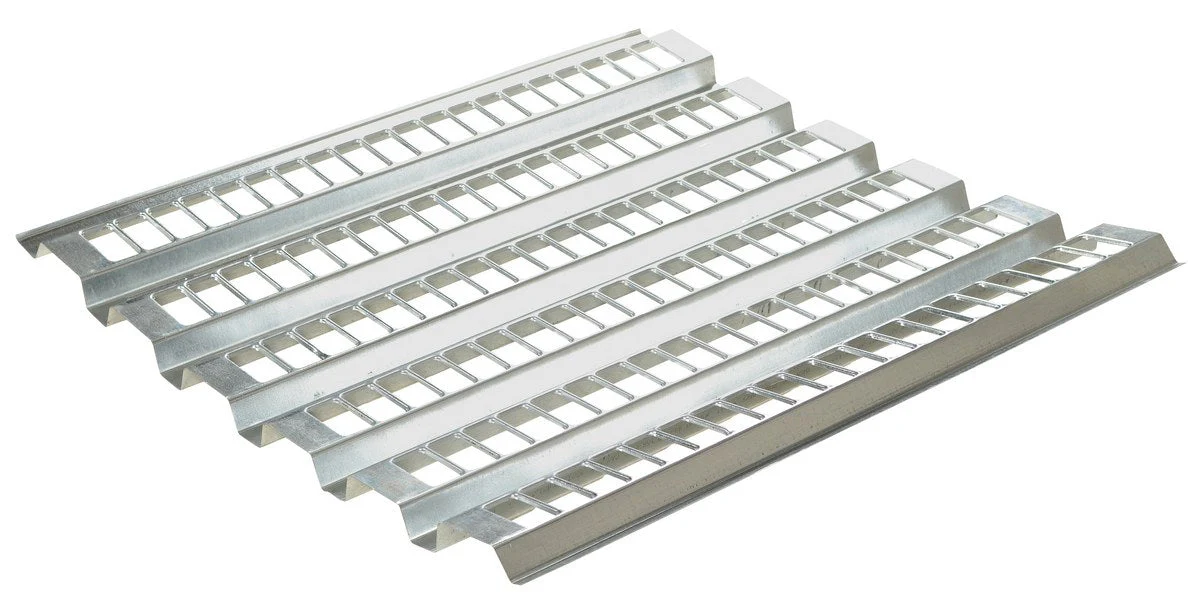

Open Area Rack Decking
Ideal for storing furniture, carpet, record files or products that require a uniform support.
Fire protection friendly with 50% open design. Designed for pallet rack beam with 42" deep racking. The bright galvanized finish makes the 22 gauge steel rack appear more industrial. Fits 1-1/2." beam offset. The top hats are 3-1/2" wide with top slotted holes 1-1/4" x 2-1/2" and the valleys are 2-1/2" wide with slotted holes 1" x 3". Custom sizes available, contact factory.
|
Open Area Rack Decking |
|||||||
| Model | Image | Beam Length |
Frame Depth |
Span | Capacity (lbs) |
Wt. (lbs) |
|
| PCH-96 |  |

|
96" | 42" | 38 1/2" | 3,780 | 62 |
| PCH-108 |  |
|
108" | 42" | 38 1/2" | 3,780 | 72 |
| PCH-120 |  |
|
120" | 42" | 38 1/2" | 3,780 | 82 |
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Description
Ideal for storing furniture, carpet, record files or products that require a uniform support.
Fire protection friendly with 50% open design. Designed for pallet rack beam with 42" deep racking. The bright galvanized finish makes the 22 gauge steel rack appear more industrial. Fits 1-1/2." beam offset. The top hats are 3-1/2" wide with top slotted holes 1-1/4" x 2-1/2" and the valleys are 2-1/2" wide with slotted holes 1" x 3". Custom sizes available, contact factory.
|
Open Area Rack Decking |
|||||||
| Model | Image | Beam Length |
Frame Depth |
Span | Capacity (lbs) |
Wt. (lbs) |
|
| PCH-96 | |
|
96" | 42" | 38 1/2" | 3,780 | 62 |
| PCH-108 | |
|
108" | 42" | 38 1/2" | 3,780 | 72 |
| PCH-120 | |
|
120" | 42" | 38 1/2" | 3,780 | 82 |
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
