Low Profile Electric Lift Tables

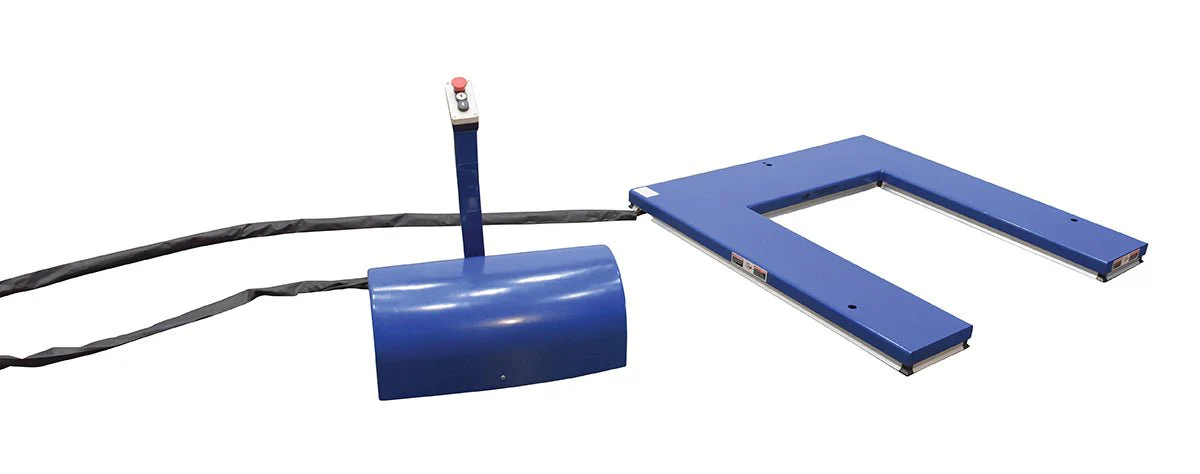

The open center on the "U" Type Electric Lift Tables, series EHU, enable a pallet truck to place a load on the platform.
Series "EHE" center support beam helps to prevent the pallet from deflecting downward in the center. Units feature an external power pack equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed. Remote power pack comes complete with a cover to protect the motor from dust and debris. Raise and lower the unit using the UP and DOWN push buttons on the 24V control box. Safety features include electric toe guards, safety velocity fuse in cylinders, safety maintenance props, and an emergency stop button on the control box. Power supply is 115V single phase with pedestal mounted push buttons. When used in conjunction with a standard pallet jack, only open bottom pallets are to be used.
| Low Profile "U" Type Electric Lift Tables | |||||||
| Model | Image | Platform Size (WxL) |
Capacity (lbs.) |
Raised Height |
Lowered Height |
Wt. (lbs.) |
|
| EHU-2 |  |

|
52-1/2" x 55-3/4" | 2,000 | 33-1/2" | 3-1/2" | 592 |
| EHU-3 |  |
|
53-1/2" x 63" | 3,000 | 33-1/2" | 4-1/4" | 777 |
| EHE-2 |  |
|
52-1/2" x 55-3/4" | 2,000 | 33-1/2" | 3-1/2" | 650 |
| EHE-3 |  |
|
53-1/2" x 63" | 3,000 | 33-1/2" | 4-1/4" | 805 |
| 304 Stainless Steel (External power unit is powder coated steel) | |||||||
| EHU-12-SS |  |
|
50" x 59" | 1,200 | 33-1/2" | 3-3/8" | 592 |
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
Original: $5,340.98
-65%$5,340.98
$1,869.34
Description
The open center on the "U" Type Electric Lift Tables, series EHU, enable a pallet truck to place a load on the platform.
Series "EHE" center support beam helps to prevent the pallet from deflecting downward in the center. Units feature an external power pack equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed. Remote power pack comes complete with a cover to protect the motor from dust and debris. Raise and lower the unit using the UP and DOWN push buttons on the 24V control box. Safety features include electric toe guards, safety velocity fuse in cylinders, safety maintenance props, and an emergency stop button on the control box. Power supply is 115V single phase with pedestal mounted push buttons. When used in conjunction with a standard pallet jack, only open bottom pallets are to be used.
| Low Profile "U" Type Electric Lift Tables | |||||||
| Model | Image | Platform Size (WxL) |
Capacity (lbs.) |
Raised Height |
Lowered Height |
Wt. (lbs.) |
|
| EHU-2 | |
|
52-1/2" x 55-3/4" | 2,000 | 33-1/2" | 3-1/2" | 592 |
| EHU-3 | |
|
53-1/2" x 63" | 3,000 | 33-1/2" | 4-1/4" | 777 |
| EHE-2 | |
|
52-1/2" x 55-3/4" | 2,000 | 33-1/2" | 3-1/2" | 650 |
| EHE-3 | |
|
53-1/2" x 63" | 3,000 | 33-1/2" | 4-1/4" | 805 |
| 304 Stainless Steel (External power unit is powder coated steel) | |||||||
| EHU-12-SS | |
|
50" x 59" | 1,200 | 33-1/2" | 3-3/8" | 592 |
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
