Husqvarna PG 510 Concrete Grinder

The PG 510 is a planetary floor grinder with three grinding discs and a total grinding width of 515 mm. It is suitable for removing coatings, grinding and polishing concrete, etc.

The PG 510 is a planetary floor grinder with three grinding discs and a total grinding width of 515 mm. It is suitable for removing coatings, grinding and polishing concrete, etc. The grinding head on the PG 510 is effectively sealed to keep dust and moisture out. This greatly extends the lifetime of the bearings and belts. The PG 510 is ideal as a rental machine and suitable for both professional and semi-professional work. Quick-release couplings allow the grinding head to be separated from the chassis which can then be easily folded for transport. The grinder also has a digital hour meter.

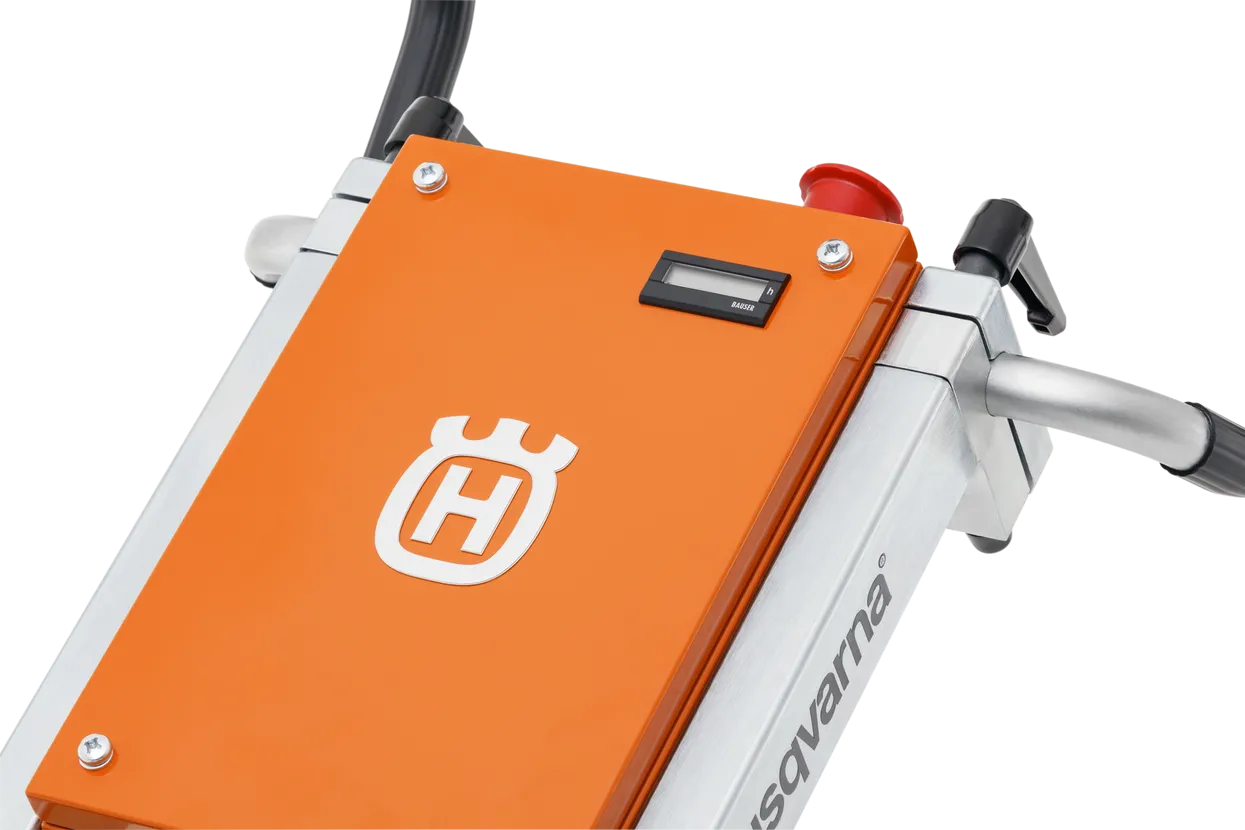

The speed is fixed and no settings are required. The machine also has an user-friendly logical control panel with overload protection.

Self-adjusting floating cover with brush list follows the surface and gives a tight seal to prevent the dust from entering the working environment.

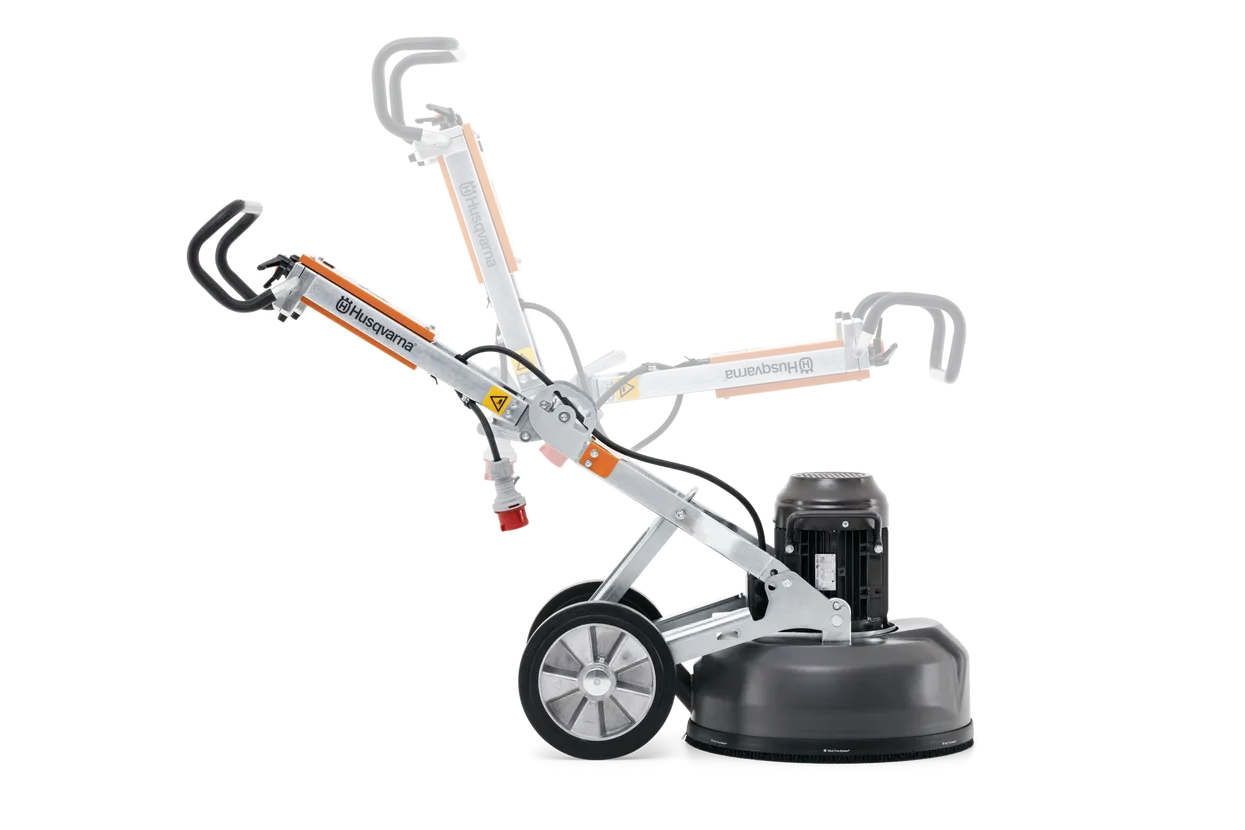

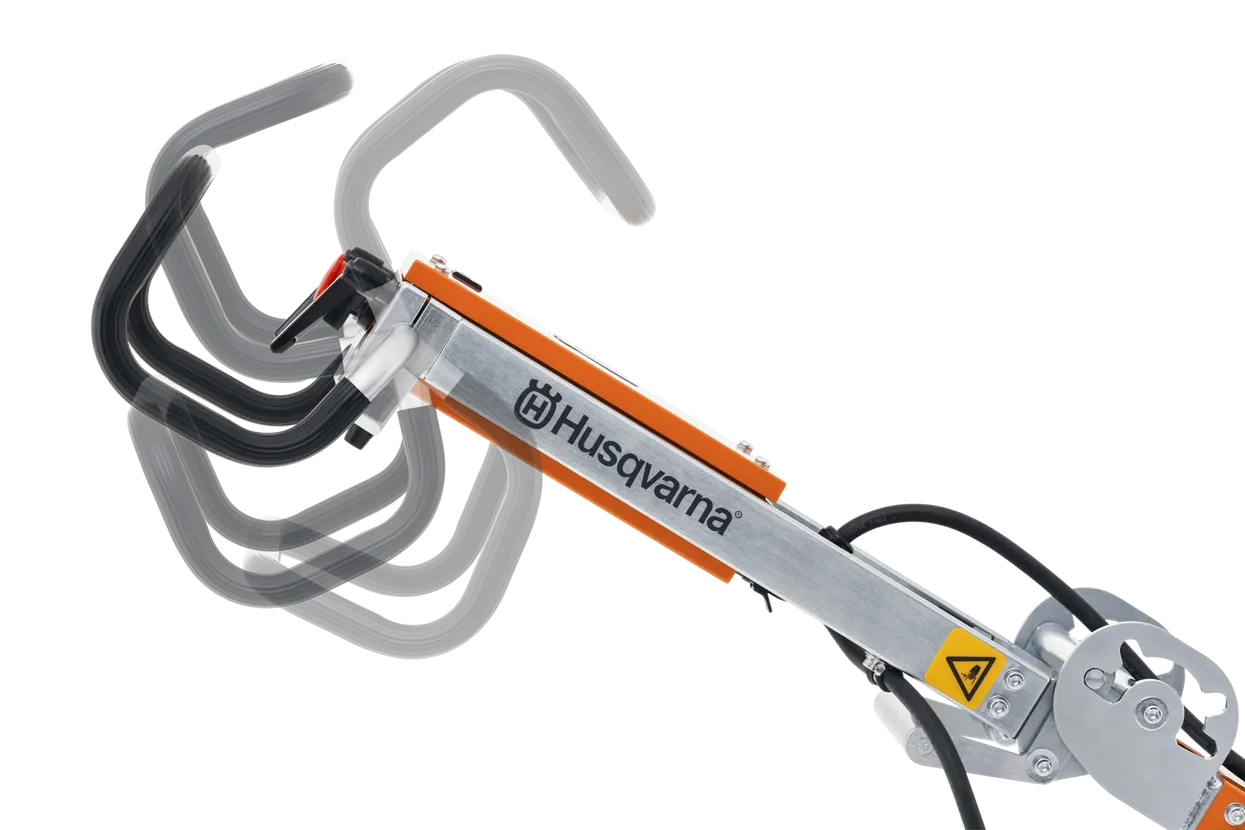

The machine is light and fits easily in any car thanks to the compact design and foldable frame and dividable parts.

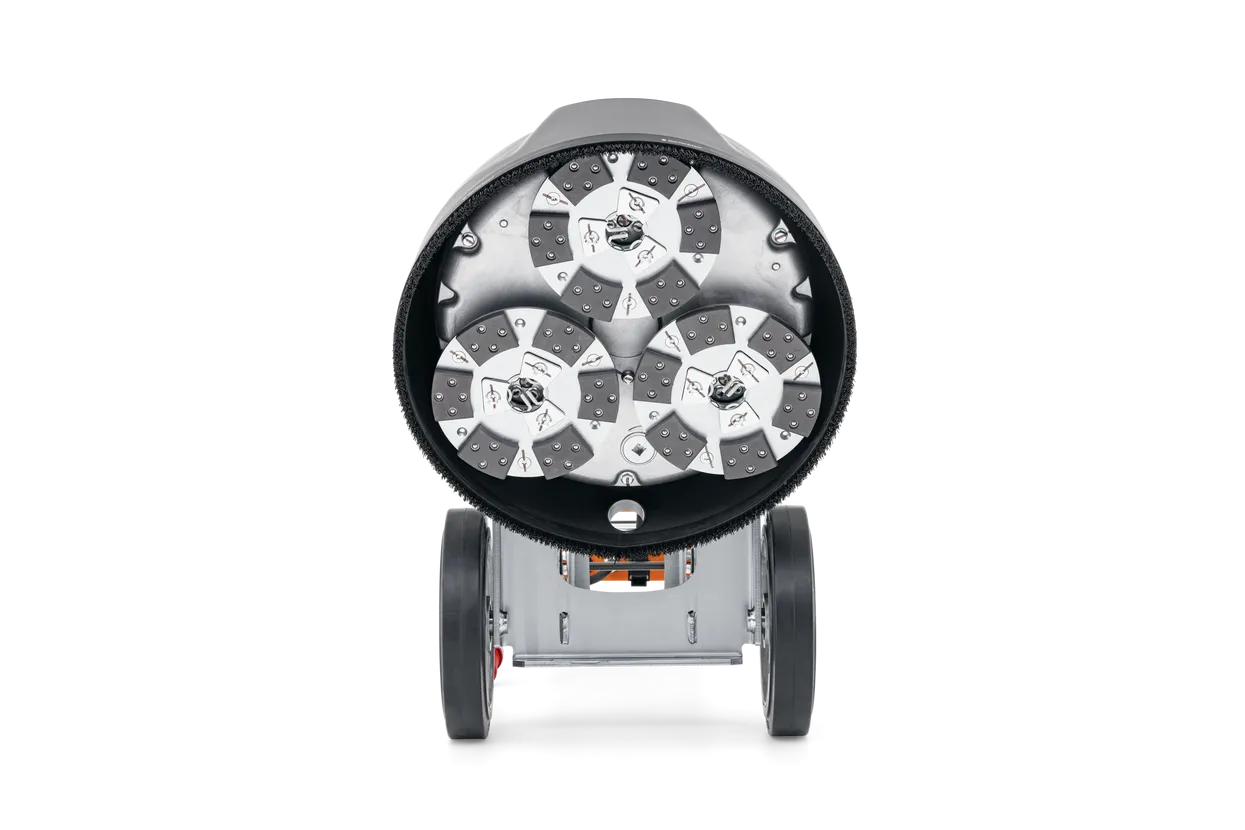

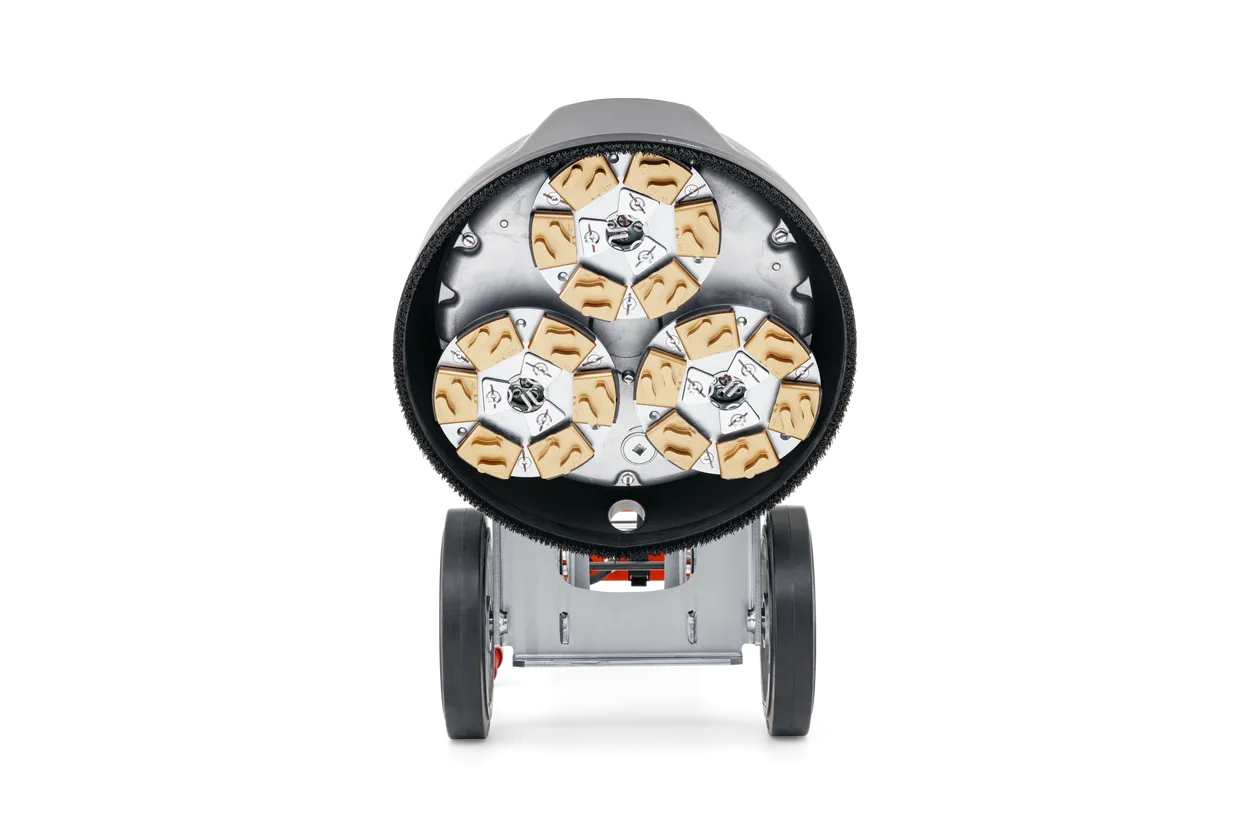

The machine has three grinding discs making it suitable for a wide range of applications.

Specifications

Engine
Engine Power (As rated by the engine manufacturer)	4 hp
Motor
Power source	Corded
Phases	1 ph
Voltage	220-240 V
Rated current	18 A
Frequency	60 Hz
Pins	2
Equipment
Grinding width	20 in
Number of grinding discs	3
Direction of rotation	One direction
Grinding disc diameter	9 in
Grinding disc speed min	0 rpm
Grinding disc speed max	438 rpm
Dimensions
Product size length	60 in
Product size width	22 in
Product size height	37 in
Packaging length (Calc)	40.157 in
Packaging width (Calc)	24.016 in
Packaging height (Calc)	41.339 in
Article gross weight (Calc)	330.693 lbs
