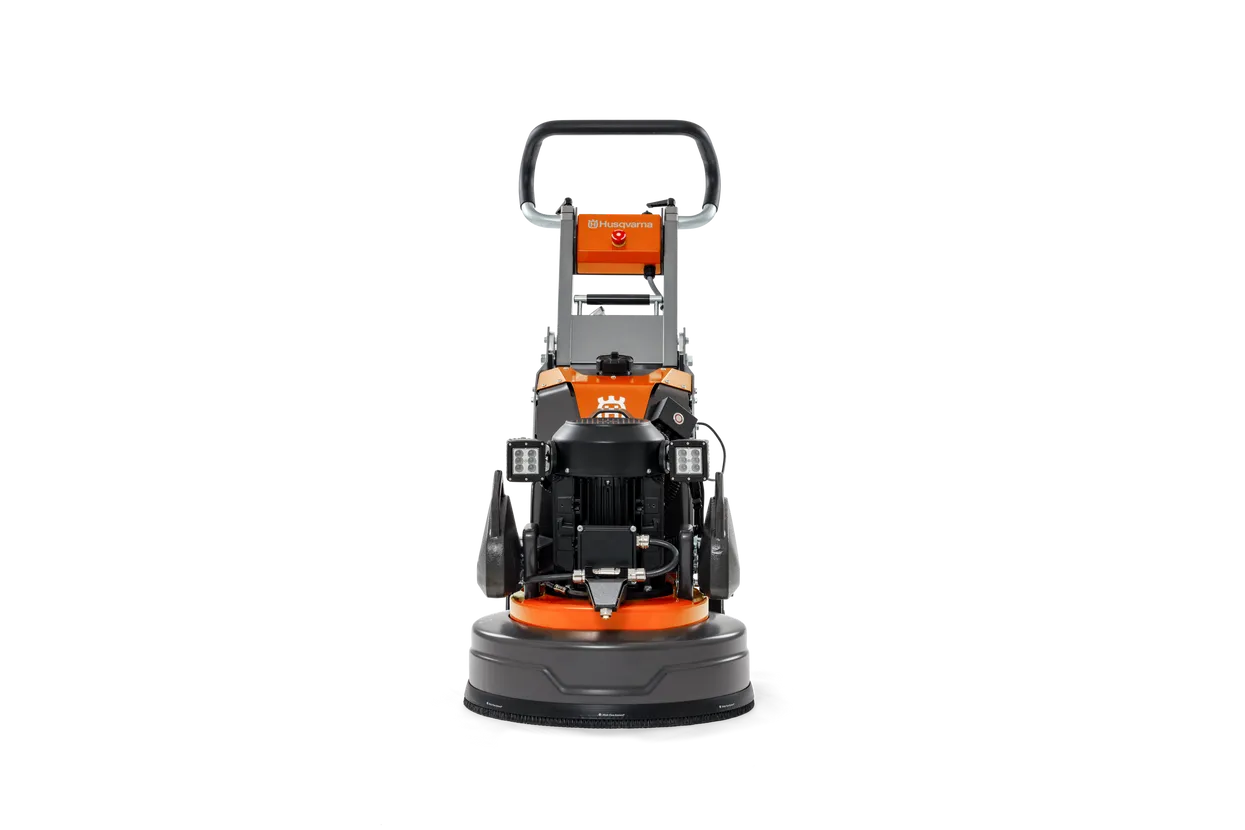

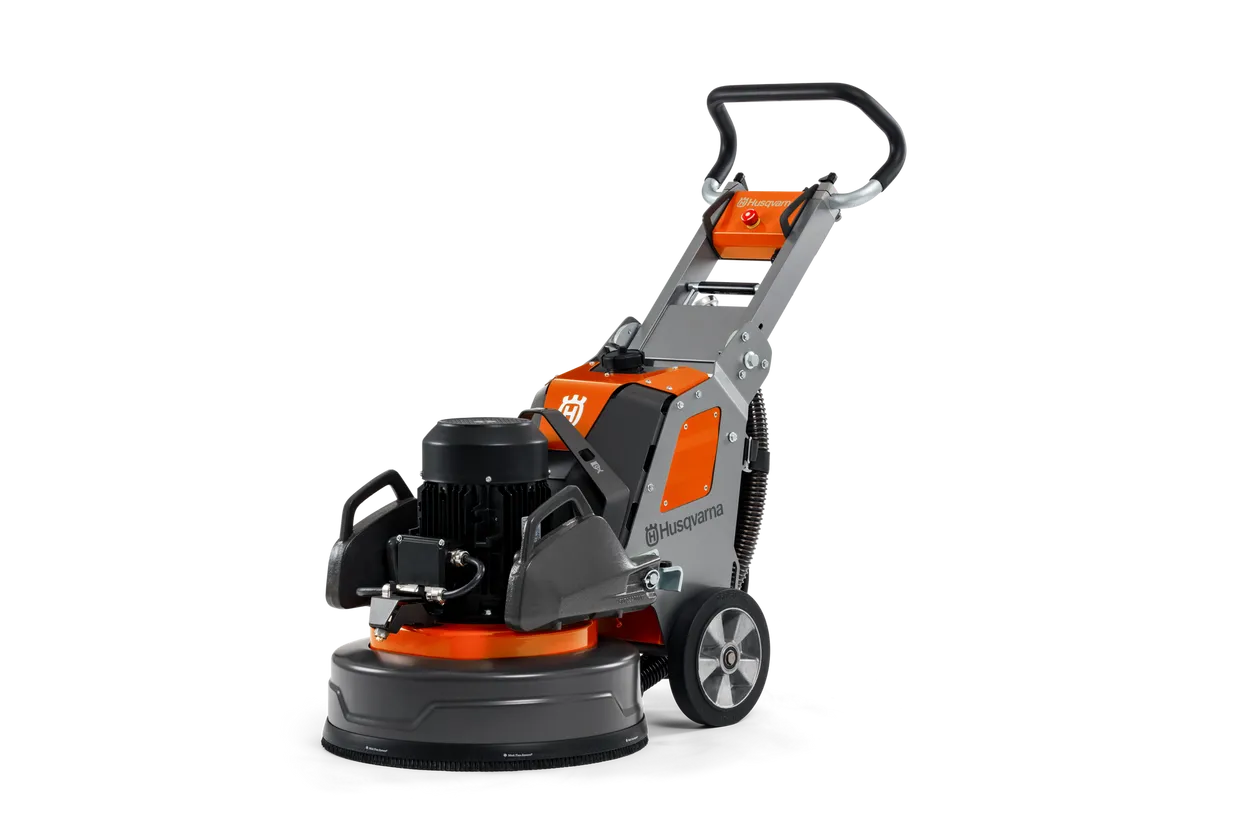

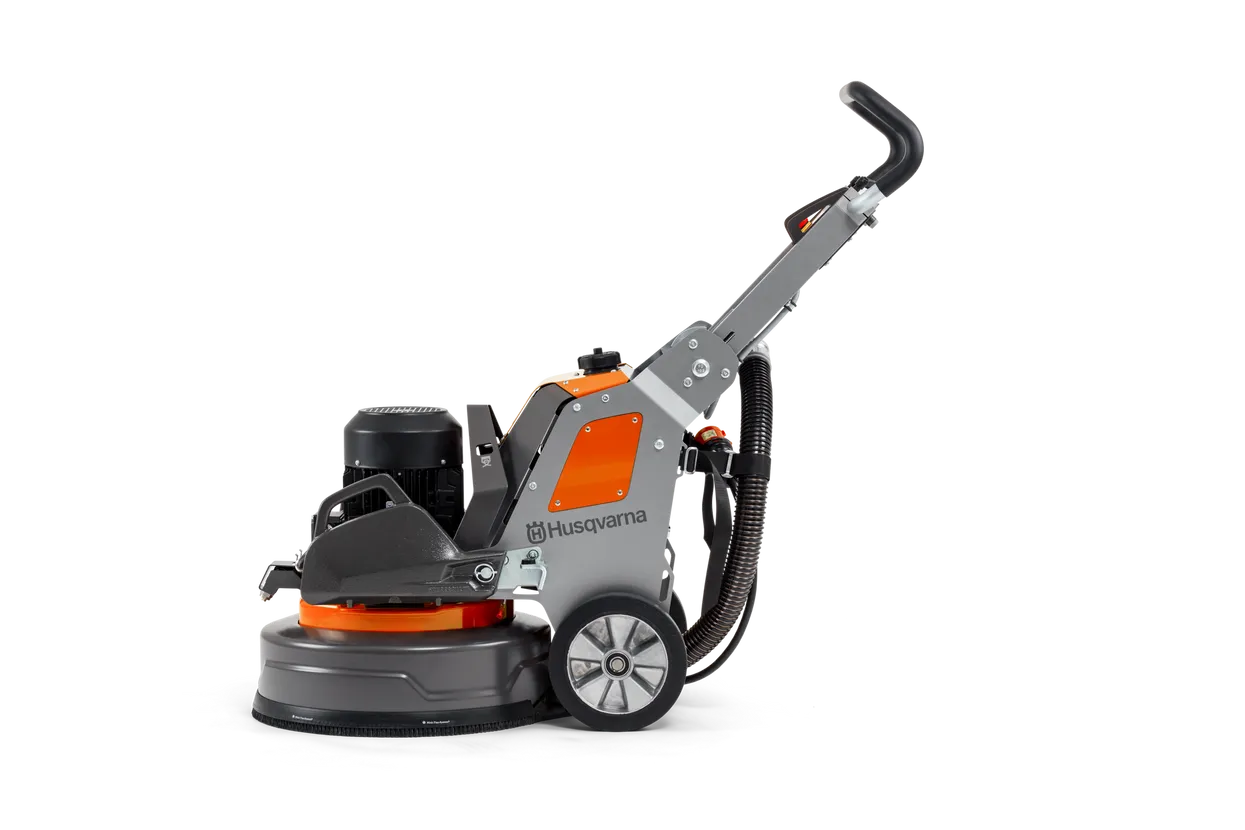

Husqvarna PG 5 Concrete Grinder

The PG 5 is a compact and powerful planetary floor grinder with three grinding discs and a 4 kW motor.

It is suitable for everything from removing coatings to grinding and polishing concrete or natural stone. The machine also features a mist cooler system that cools the diamond tools during operation, significantly increasing the removal rate and reducing the risk of glazing the tools (compared with not using the mist cooler system). For convenience, the chassis can be easily separated from the grinding head and the weights dismounted prior to transport.

The hermetically sealed design of the grinding head and electrical cabinet, along with the robustness of the components, contributes to high reliability and low maintenance.

Optional: Water kit

Tool holder: EZchange™ Airflow

Higher removal rate with mist cooler system

Sealed to last

Protected electronics

Improved dust pick-up

Ergonomic handle

Time saving tool change

Adjustable grinding pressure

Magnetic LED lights

Fleet ready

Quick release of tool holders

Fits into most standard cars

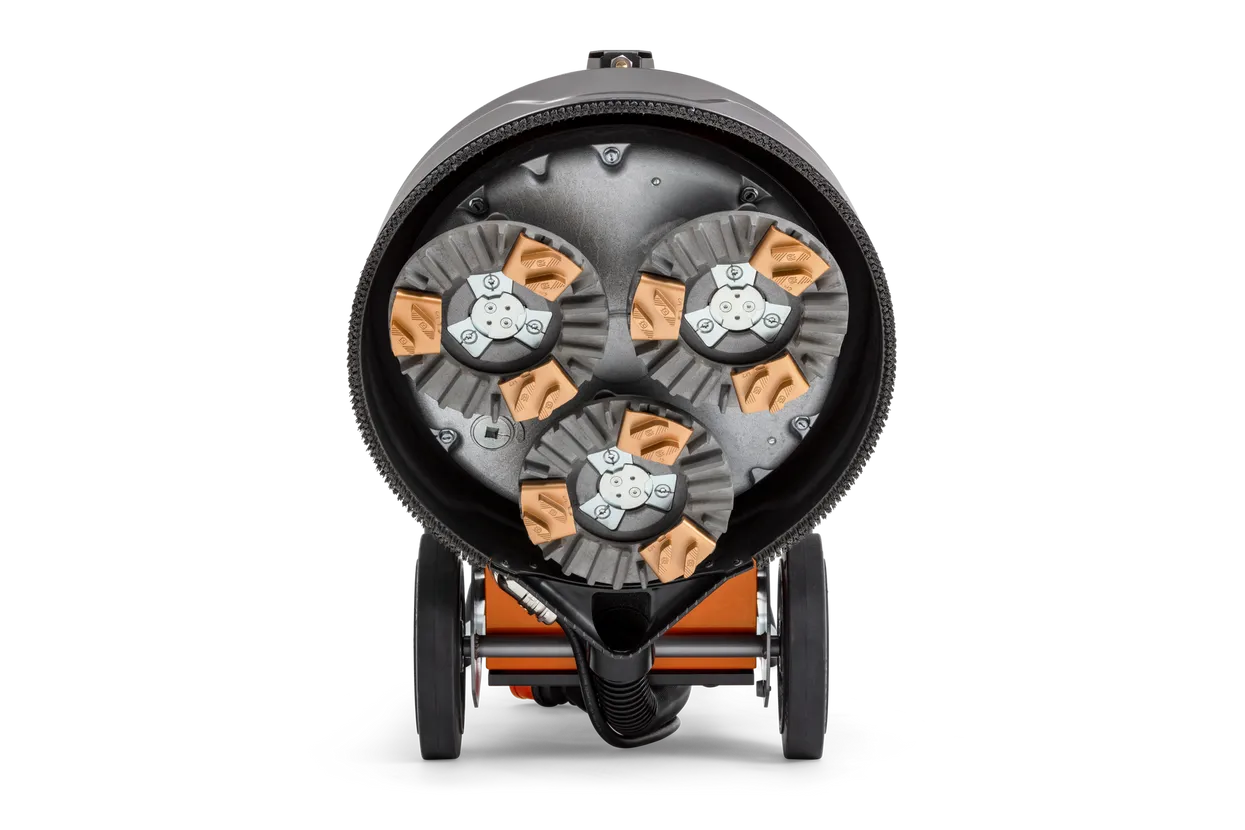

EZchange™ Airflow tool holders

Specifications

Engine Power (As rated by the engine manufacturer)	5.4 hp
Motor
Power source	Corded
Rated input power	5.4 hp
Phases	1 ph
Voltage	200-240 V
Rated current	30 A
Frequency	50-60 Hz
Pins	2P+E
Equipment
Grinding width	20.3 in
Number of grinding discs	3
Direction of rotation	Both directions
Grinding disc diameter	9.1 in
Grinding disc speed min	353 rpm
Grinding disc speed max	1,176 rpm
Transmission
Type of operation	Push
Dimensions
Product size length	35.7 in
Product size width	22.1 in
Product size height	28.4 in
Weight	403 lbs
Packaging length (Calc)	43.307 in
Packaging width (Calc)	23.622 in
Packaging height (Calc)	39.37 in
Article gross weight (Calc)	445.334 lbs
