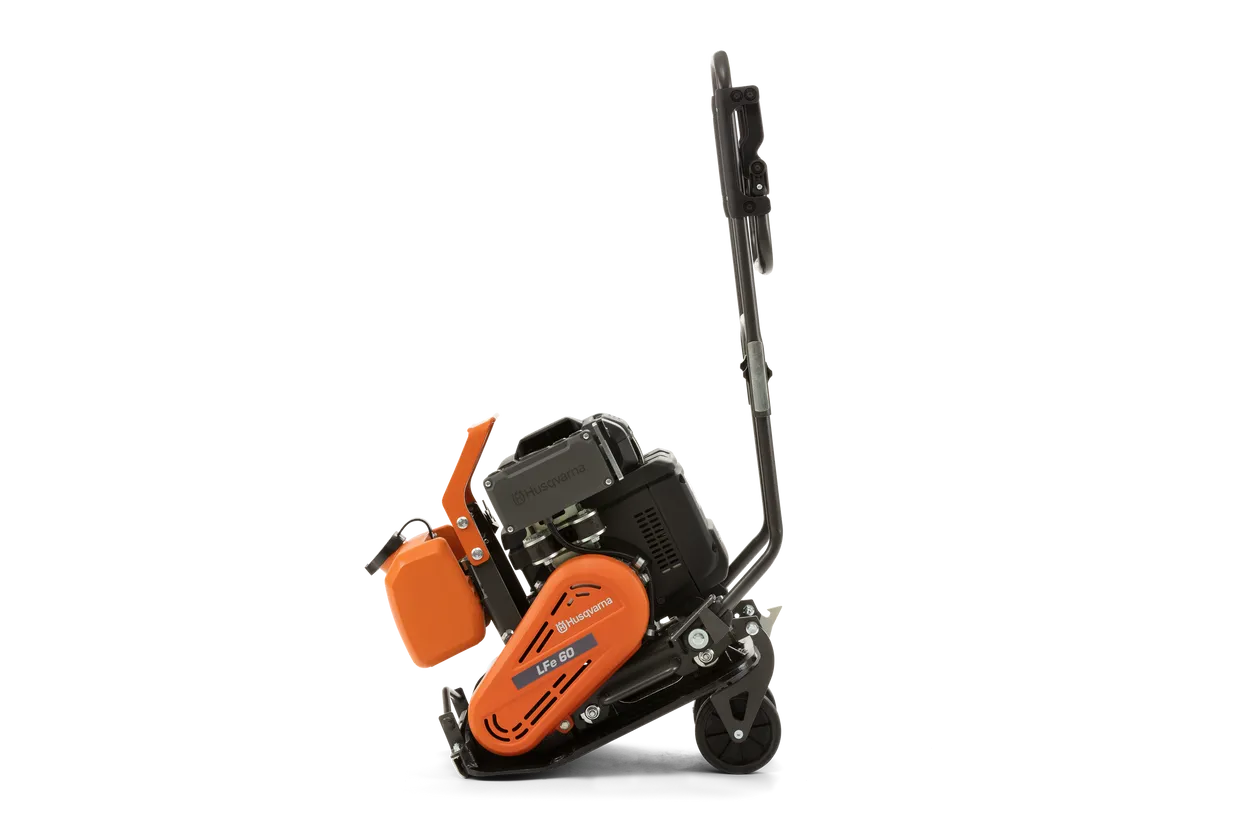

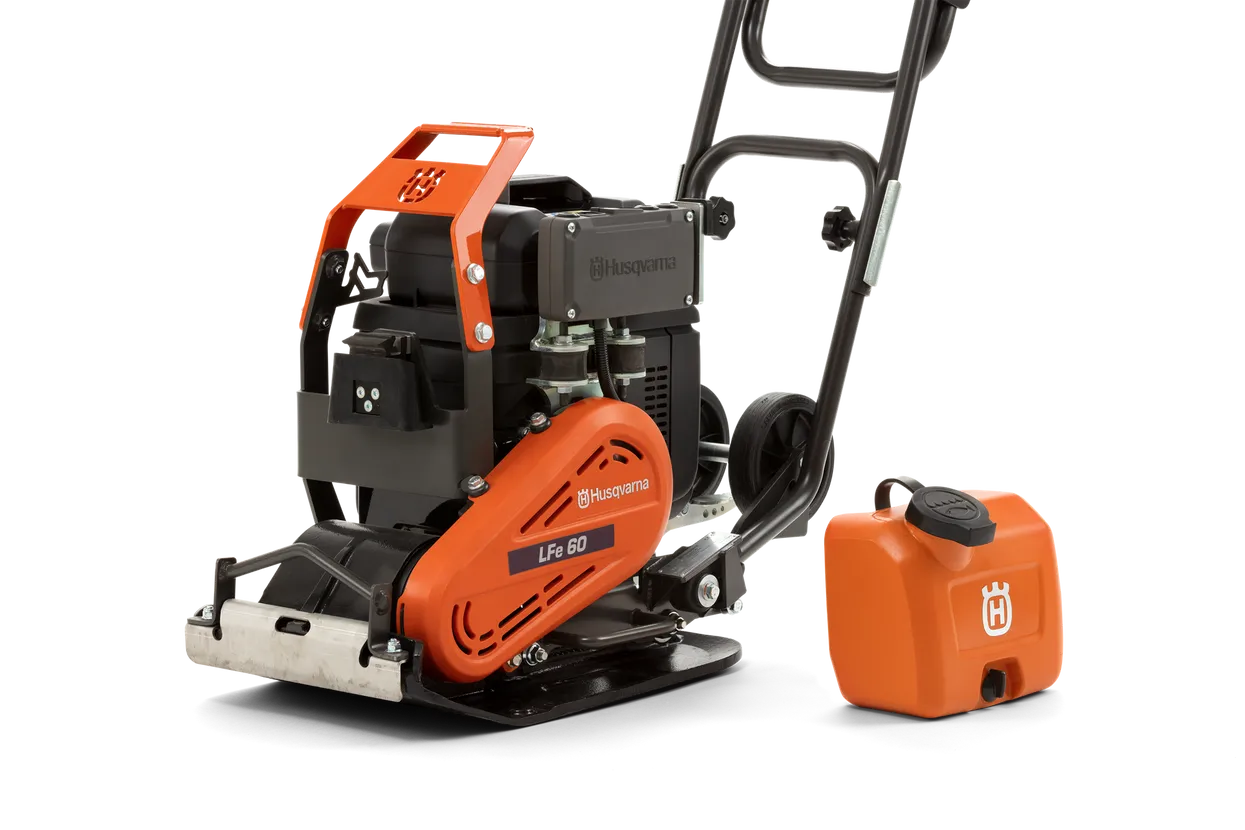

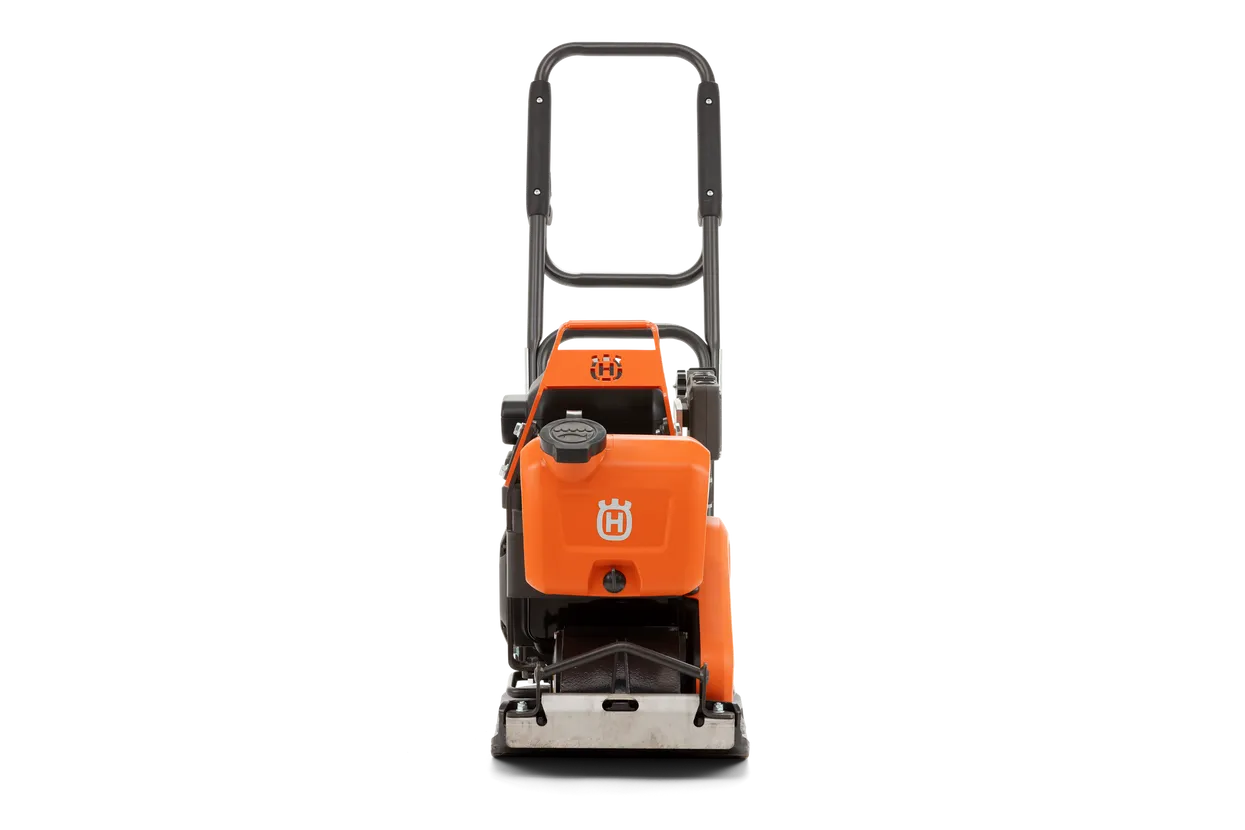

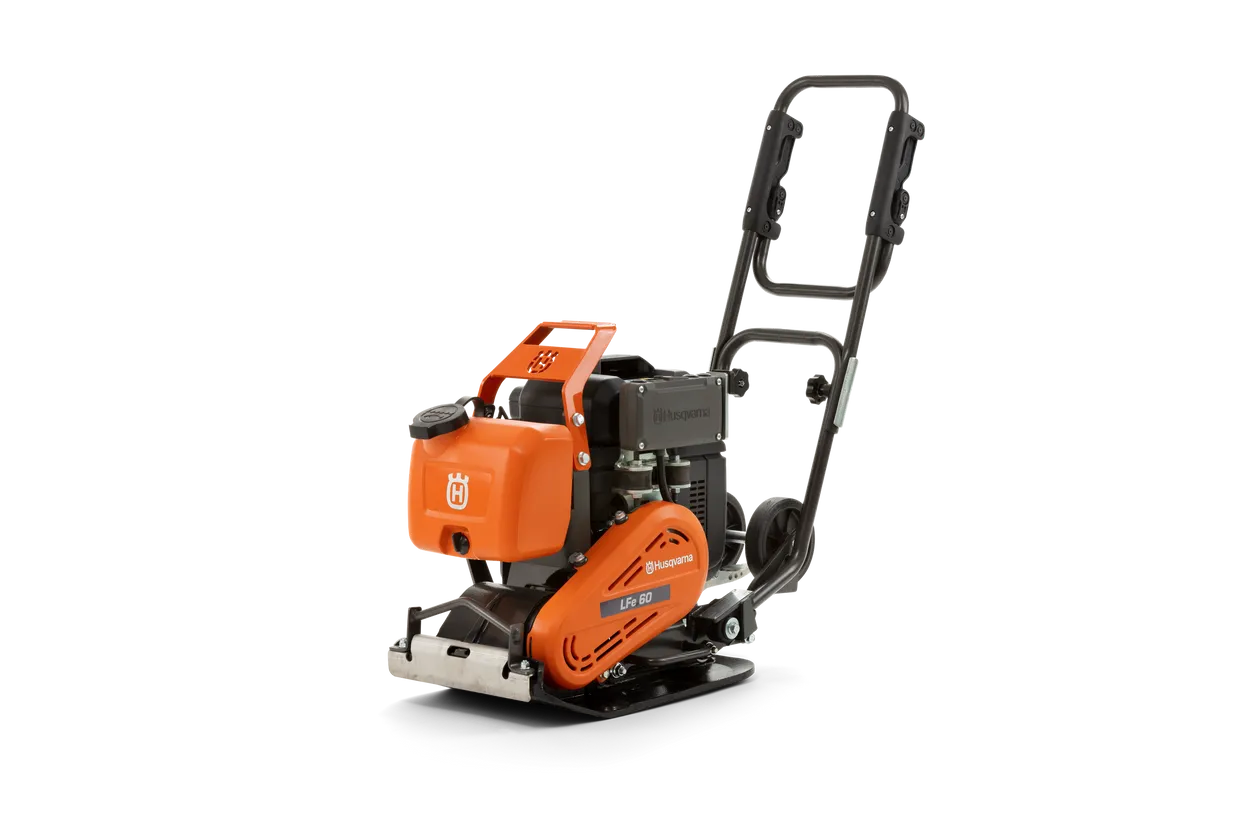

Husqvarna LFe 60 LAT Plate Compactor

The battery-powered LFe 60 LAT is designed for efficient compaction of asphalt and soil. It is ideal for repair jobs and maintenance work such as driveways and parking lots.

The brushless electric motor runs on the new Honda battery platform, specifically developed for compaction applications. It is almost maintenance-free and offers a low running cost. The machine is easy to handle, with low noise and zero CO₂ emissions during use. The water tank is removable and easy to refill. The machine is easy to clean and especially suited to compact fresh asphalt, as the bottom plate and the water sprinkling system are designed to prevent the fresh asphalt from sticking to the equipment or creating marks on the ground.

Specifications

Motor/engine model	Egx BLDC 36 V
Starter	Electric
Power source	Battery
Product data
Compaction application	Asphalt and Soil
Frequency	50-60 Hz
Centrifugal force	2,338 lbf
Speed	72 ft/min
Dimensions
Plate width	13.78 in
Product size length	39.6 in
Product size width	13.8 in
Product size height	38 in
Weight	194 lbs.
Packaging length (Calc)	33.268 in
Packaging width (Calc)	24.409 in
Packaging height (Calc)	33.071 in
Article gross weight (Calc)	233.69 lbs.
Sound and noise
Sound power level, guaranteed (LWA)	100 dB(A)
Sound pressure level at operators' ear (LpA)	85 dB(A)
Vibration
Vibrations left/front handle	1.53 m/s²
Vibrations right/rear handle	1.53 m/s²
