Husqvarna Floor Saw 7000 D Walk Behind Saw

Husqvarna Floor Saw 7000 D Walk Behind Saw

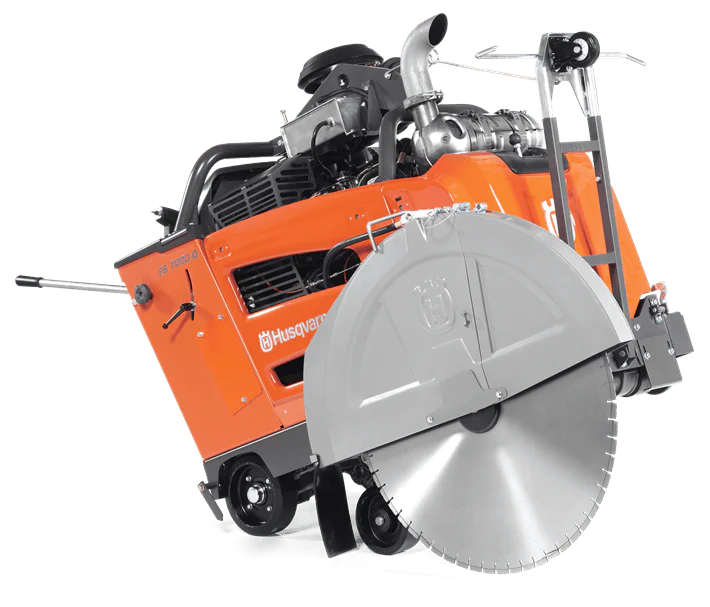

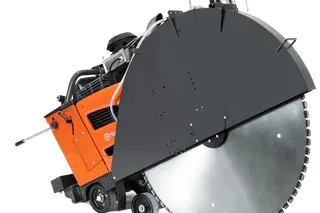

The modern FS 7000 D is our most powerful diesel walk-behind flat saw with low emissions, developed to be compliant with Tier 4 regulations. Ideal for concrete and asphalt cutting up to 17 1/4" deep. Suitable for mid-sized road work, service work and smaller jobs that require high production rates. It is highly versatile thanks to its high output, compact size and good maneuverability. It is equipped with an intuitive and ergonomic digital control panel with all important functions and is easy to monitor.

Cutting depth, max - 17.25 in

Output power (As rated by the engine/motor manufacture) - 74.3 hp

Blade diameter, max - 42 in

Single Speed Saw

3 Speed Saw Specs

FEATURES:

Want to take a closer look? Learn more about the product in depth by exploring its features and benefits.

Powerful and fuel-efficient

Common-rail diesel engine with low emissions.

Low emissions

Equipped with diesel particle filter (DPF). Complies with Stage IIIB / Tier 4 regulations.

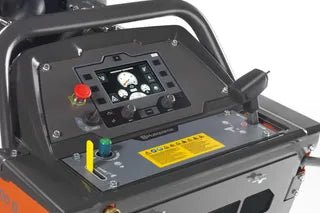

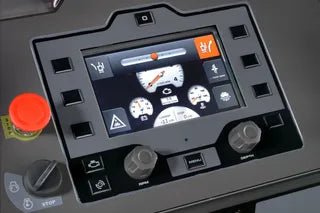

Intuitive and ergonomic control panel

All important functions are easy to reach and monitor, such as blade rpm, forward speed, electronic tracking, depth gauge, belt and pulley ratios, runtime and service minder.

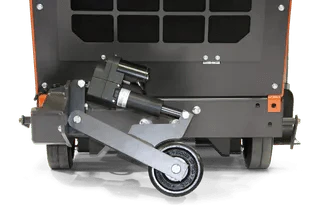

Easy adjustment of tracking for straight cuts

Electric tracking system includes position indicator on the display, it can automatically return to neutral position and has the ability to memorize last used setting.

Engine

Output power (As rated by the engine/motor manufacture)

74.3 hp

Engine cooling

Liquid /Air

Fuel tank volume

1352 fl oz

Cutting equipment

Arbor diameter

1 in

Blade depth control

Electro hydro

Blade diameter, max

42 in

Cutting depth, max

17.25 in

Transmission:

Transmission speed reverse

0 fpm

Transmission speed forward

250 fpm

Dimensions

Product size width

38.38 in

Product size height

59 in

Weight

2275 lbs

Specifications

Tech Specs	D20 / D26 / D30 / D36 / D40
Maximum Blade Diameter - in (mm)	20 (508) / 26 (660) / 30 (762) / 36 (914) / 42 (1,067)
Maximum Depth of Cut - in (mm)	7-3/4 (197) / 10-1/2 (267) / 12-1/2 (305) / 15 (381) / 17-1/2 (445)
Average Blade shaft, RPM	2,362 / 1,762 / 1,624 / 1,354 / 1,150
Blade Flanges - in (mm)	4-1/2(114) / 5 (127) / 6 (152) / 7 (178)
Max Weight Crated	2,213 (1,004) / 2,224 (1,109) / 2,233 (1,013) / 2,246 (1,019) / 2,385 (1,082)
Max Weight Uncrated	2,103 (954) / 2,114 (959) / 2,123 (963) / 1,700 (771) / 2,275 (1,032)
Tech Specs	D26 / D30 / D36 / D40
Maximum Blade Diameter - in (mm)	26 (660) / 30 (762) / 36 (914) / 42 (1,067)
Maximum Depth of Cut - in (mm)	10-1/2 (267) / 12-1/2 (305) / 15 (381) / 17-1/2 (445)
Average Blade shaft, RPM	1,860 / 2,170 / 3,100 / 1,600 / 1,880 / 2,680 / 1,360 / 1,620 / 2,300 / 1,180 /1,380 / 1,960
Blade Range	14/18/26 (350/450/660) / 18/26/30 (450/660/762) / 20/30/36 (508/762/914) / 30/36/42 (762/914/1,067)
Blade Flanges - in (mm)	5 (127) / 6 (152) / 7 (178)
Max Weight Crated	2,256 (1,023) / 2,265 (1,027) / 2,278 (1,033) / 2,417 (1,096)
Max Weight Uncrated	2,146 (973) / 2,155 (977) / 2,168 (983) / 2,307 (1,046)
