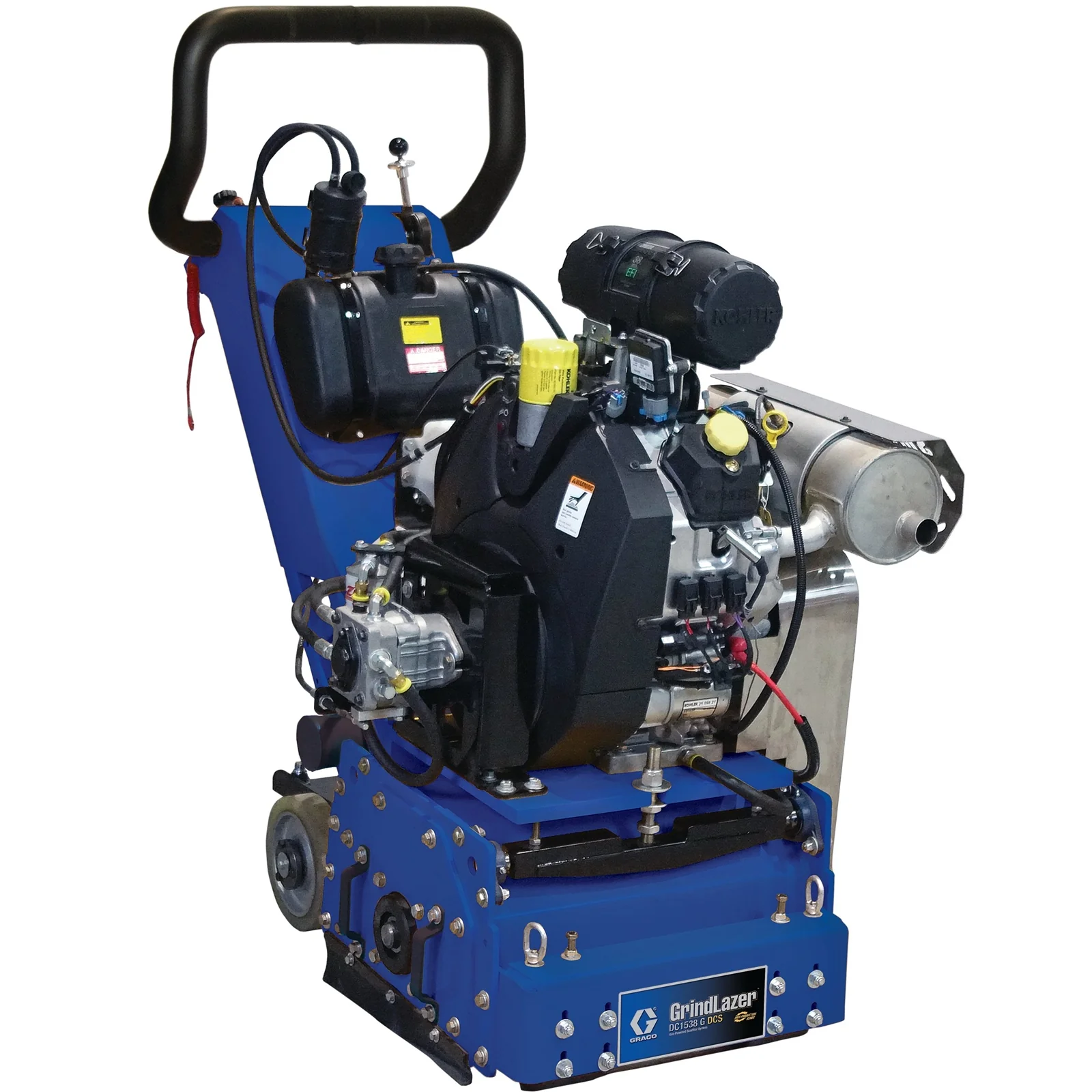

GrindLazer Self-Propelled Gas-Powered Scarifier with Depth Control
Graco GrindLazer HP DC1538-G DCS Overview
The Graco GrindLazer HP DC1538-G DCS Self-Propelled Gas-Powered Scarifier with High-Speed Pulley Kit is Graco's highest-production walk-behind scarifier engineered for large-scale concrete and asphalt surface preparation. Equipped with a powerful 38 HP Kohler EFI commercial engine, hydrostatic self-propelled drive, electronic Depth Control System (DCS), and a 16-inch cutting width, this machine delivers exceptional productivity for contractors performing heavy-duty scarifying, coating removal, pavement marking removal, concrete leveling, grooving, and industrial floor preparation.
Designed for demanding commercial applications, the HP DC1538-G DCS combines precision electronic depth control with high production rates to help operators maintain consistent cutting depths while reducing fatigue on large projects. The integrated High-Speed Pulley Kit optimizes drum speed for diamond and PCD tooling, making the machine especially effective for removing epoxy coatings, waterproofing membranes, traffic markings, and other difficult surface materials.
Its hydrostatic drive system maintains smooth, consistent travel speeds over concrete and asphalt, while the rugged steel frame, industrial components, and contractor-grade design provide the durability required for daily use in commercial, municipal, and infrastructure applications. Whether preparing warehouse floors for epoxy coatings, removing thermoplastic road markings, restoring parking structures, or profiling bridge decks, the GrindLazer HP DC1538-G DCS delivers professional results with maximum efficiency.
Operational Specifications
| UPC PRODUCT | 769946019056 |
|---|---|
| DIVISION | CED |
| FAMILY CODE | FAMGZU |
| COUNTRY OF ORIGIN | US |
| UNIT OF MEASURE | EA |
| HEIGHT | 53 IN | 134.620 CM |
| LENGTH | 72 IN | 182.880 CM |
| WIDTH | 48 IN | 121.920 CM |
| VOLUME | 106 FT3 | 3.002 M3 |
| SHIPPING WEIGHT | 921 LBS | 417.759 KG |
| HTS CODE (US) | 8479100080 |
| HTS CODE (CA) | 8479100090 |
Technical Specifications
| AIR FILTER TYPE | Heavy-Duty |
|---|---|
| SERIES | High Production Series |
| VACUUM PORT | Yes |
| PRODUCT SERIES | High Production |
| MODEL | GrindLazer |
| MAXIMUM CUT WIDTH (MM) | 406 |
| MAXIMUM CUT WIDTH (IN) | 16 |
| MAXIMUM CUT WIDTH (CM) | 41 |
| MAXIMUM CUT RATE (FT2/HR) | 3500 |
| ENGINE START TYPE | Electric Start |
| ENGINE SIZE (HP) | 38 |
| ENGINE BRAND | Kohler |
| DEPTH_ADJUSTMENT | Depth Control System (DCS) |
| CUTTER DRUM DIAMETER (IN) | 10 |
Key Features
Self-Propelled Hydrostatic Drive
- Variable-speed hydrostatic drive system
- Reduces operator fatigue
- Maintains consistent travel speed
- Excellent traction on concrete and asphalt
- Designed for large production projects
Digital Depth Control System (DCS)
- Electronic push-button depth adjustment
- Live cutting depth display
- Programmable zero point
- 0.01-inch depth adjustment increments
- English and metric display options
- Helps prevent accidental drum damage
- Improves cutting consistency
High-Speed Pulley Kit
- Factory-installed high-speed pulley
- Optimized for diamond cutter drums
- Designed for PCD cutter drums
- Faster coating removal
- Improved productivity for grinding applications
38 HP Kohler EFI Engine
- Commercial-grade Kohler EFI gasoline engine
- Electronic fuel injection
- Electric start
- High torque output
- Excellent fuel efficiency
- Reliable performance for demanding applications
Heavy-Duty Construction
- Industrial steel frame
- Long-life bearings
- Heavy-duty cutter housing
- Designed for continuous commercial use
- Built for demanding jobsite conditions
Dust Collection Ready
- Dual vacuum ports
- Compatible with Graco LazerVac® systems
- Compatible with cyclone separators
- Supports silica dust control when used with an appropriate vacuum system
Quick-Change Drum System
- Removable side plate
- Fast drum replacement
- Easier maintenance
- Reduced downtime
Description
