GrindLazer Pro RC813 G Gas-Powered Scarifier

Graco GrindLazer Pro RC813-G Gas Powered Scarifier

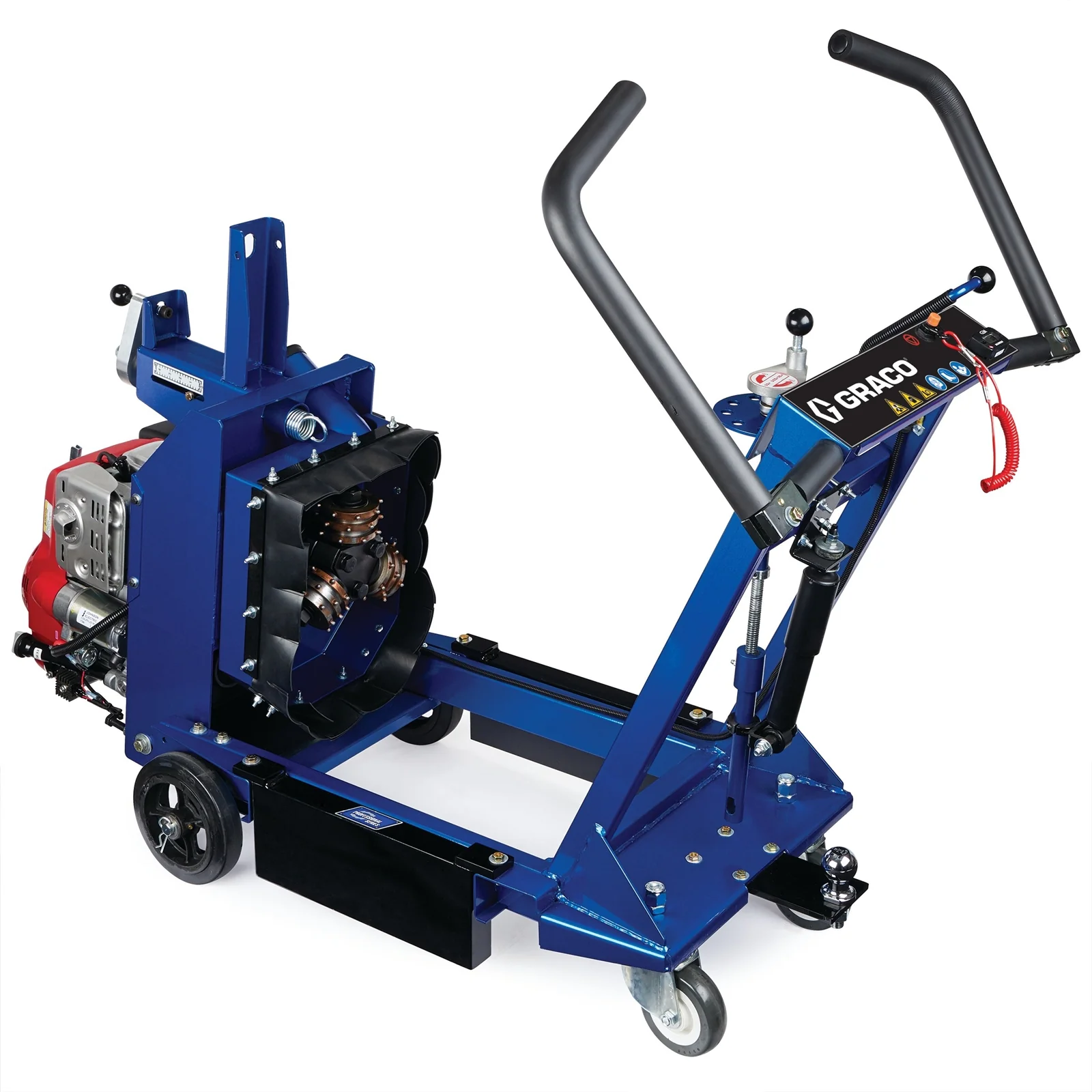

The Graco GrindLazer Pro RC813-G Gas Powered Scarifier is a professional walk-behind pavement marking removal machine designed for contractors and municipalities requiring precise, high-productivity surface preparation. Featuring Graco's innovative rotary cutting technology, the RC813-G removes painted and thermoplastic pavement markings without creating grooves or damaging the underlying asphalt or concrete surface. Powered by a reliable Honda GXV390 13 HP commercial-grade gasoline engine with electric start, this heavy-duty scarifier delivers exceptional performance for roadway maintenance, airport runway rehabilitation, parking lot restoration, and industrial pavement preparation.

Unlike traditional scarifiers, the GrindLazer Pro RC813-G utilizes a rotary cutting system that gently removes traffic markings while preserving the pavement surface, making it ideal for projects where maintaining a smooth finished surface is essential. Its advanced depth control system, rugged steel construction, sealed bearing design, and ergonomic operator controls provide excellent productivity, durability, and ease of operation in demanding commercial environments.

Product Information

The GrindLazer Pro RC813-G is engineered for professional pavement marking removal and surface preparation. Equipped with a Honda GXV390 commercial engine, the machine provides dependable power, easy electric starting, and excellent fuel efficiency. The Cyclone® air filtration system helps protect the engine from airborne dust, extending engine life while reducing maintenance requirements.

Its innovative rotary cutter assembly removes traffic paint, thermoplastic markings, and surface coatings without leaving grooves or excessive surface damage. Independent adjustment of pitch, cutting depth, and cutting pressure allows operators to optimize performance for different pavement conditions while maintaining consistent removal quality.

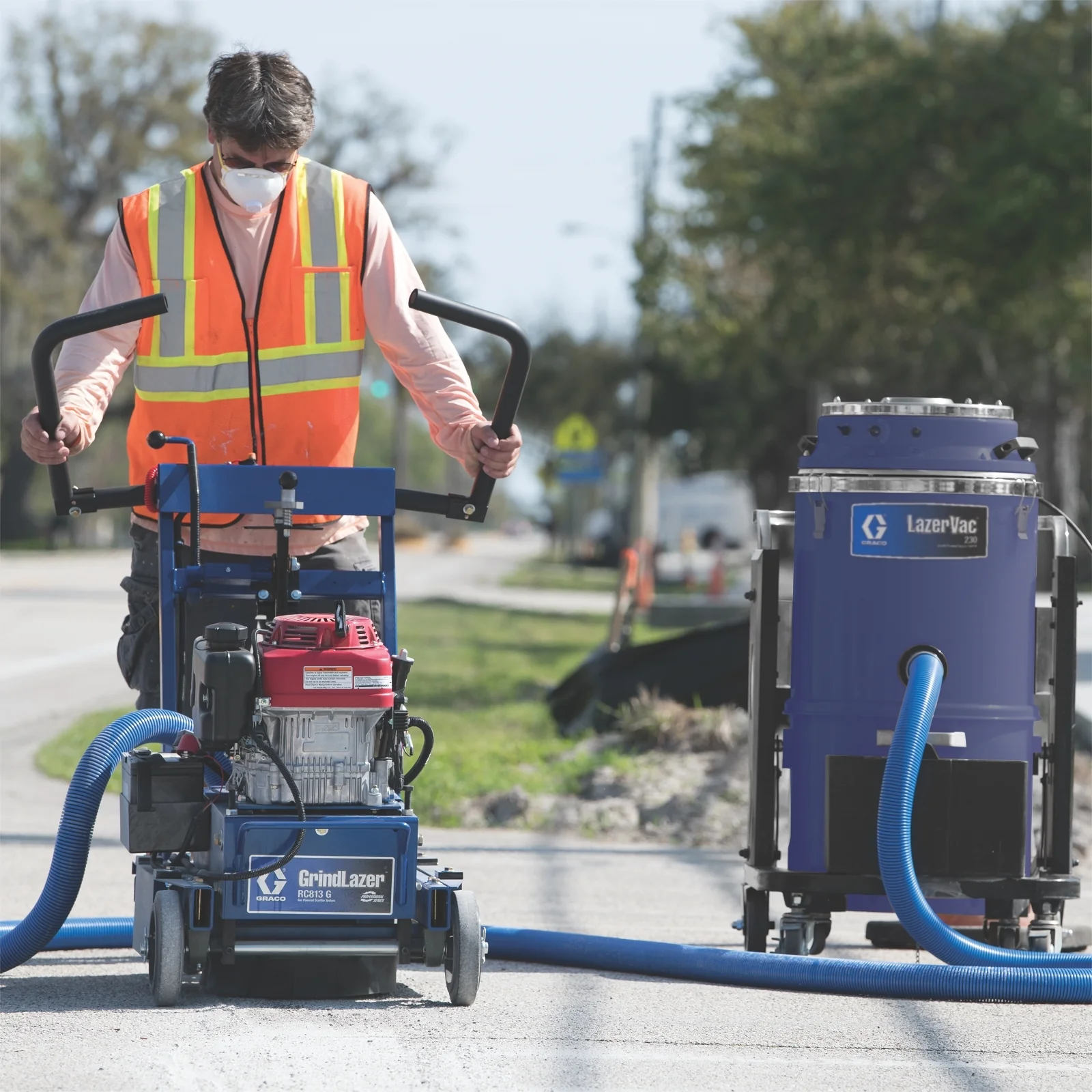

The heavy-duty steel frame is designed to withstand demanding commercial use, while adjustable anti-vibration handlebars improve operator comfort during extended operation. A tilt-up chassis provides quick access to the cutter assembly for drum changes and maintenance, minimizing downtime. Maintenance-free sealed bearings improve durability, and the integrated vacuum port connects directly to the Graco LazerVac™ dust collection system to reduce airborne dust and improve jobsite cleanliness. The built-in tachometer and hour meter allow operators to monitor engine RPM and schedule preventative maintenance.

Operation Manual

Common Applications and Uses

The GrindLazer Pro RC813-G is commonly used for:

• Traffic line removal

• Thermoplastic pavement marking removal

• Highway maintenance

• Roadway striping removal

• Airport runway and taxiway marking removal

• Parking lot stripe removal

• Municipal street maintenance

• Crosswalk marking removal

• Bicycle lane marking removal

• Road symbol and directional arrow removal

• Temporary construction marking removal

• Concrete surface preparation

• Asphalt surface preparation

• Bridge deck maintenance

• Pavement restoration

• Industrial pavement maintenance

• Warehouse floor preparation

• Loading dock surface preparation

• Surface preparation before restriping

• Pavement maintenance for commercial and municipal infrastructure

Technical Specifications

Specification	Details
Manufacturer	Graco
Product Name	GrindLazer Pro RC813-G
Manufacturer Part Number	25M847
Product Type	Walk-Behind Pavement Marking Removal Machine
Series	GrindLazer Professional Series
Power Source	Gasoline
Engine Manufacturer	Honda
Engine Model	GXV390
Engine Horsepower	13 HP
Engine Type	4-Cycle OHV Commercial Engine
Starting System	Electric Start
Air Filtration	Cyclone® Air Cleaner
Cutter System	Rotary Cutting System
Maximum Cutting Width	8 in. (203 mm)
Cutting Direction	Rotary
Depth Adjustment	Independent Manual Adjustment
Frame Construction	Heavy-Duty Steel
Vacuum Port	Yes
Dust Collection Compatible	Yes (Graco LazerVac™)
Tachometer	Yes
Hour Meter	Yes

Key Features

• Honda GXV390 13 HP commercial-grade gasoline engine

• Electric start for fast, reliable starting

• Rotary "No-Groove Line Eraser" cutting technology

• Removes traffic markings without damaging pavement

• Independent depth, pitch, and pressure adjustment

• Heavy-duty all-steel frame

• Adjustable anti-vibration handlebars

• Maintenance-free sealed bearings

• Tilt-up chassis for easy cutter access

• Integrated vacuum port for dust collection

• Built-in tachometer and hour meter

• Professional-grade construction for demanding commercial applications

Compatible Applications

The RC813-G is suitable for use on asphalt and concrete surfaces in airports, highways, city streets, parking lots, bridge decks, industrial facilities, warehouses, distribution centers, loading docks, commercial properties, and municipal infrastructure projects where clean, precise pavement marking removal is required.

Standard Equipment

The GrindLazer Pro RC813-G typically includes the complete scarifier machine, Honda GXV390 commercial engine with electric start, rotary cutter assembly, advanced depth control system, heavy-duty operator handlebars, sealed bearing system, tilt-up chassis, tachometer/hour meter, integrated vacuum port, and the operator's manual.
