GrindLazer Pro DC1013 G Gas-Powered Scarifier

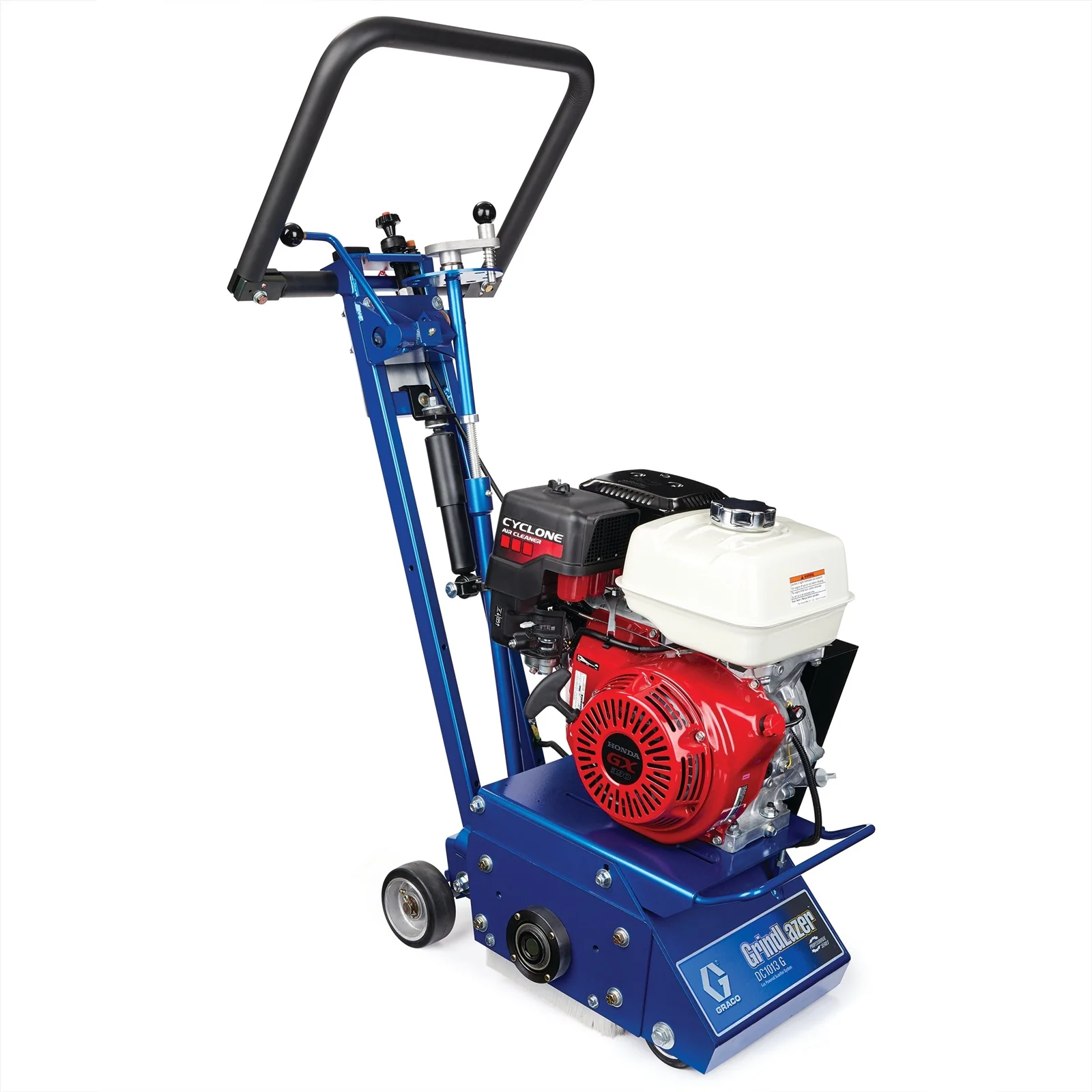

Graco GrindLazer Pro DC1013-G Gas Powered Scarifier

A professional walk-behind concrete scarifier engineered for high-output surface preparation, concrete profiling, coating removal, and pavement maintenance. Powered by a dependable Honda GX390 13 HP commercial-grade gasoline engine, the DC1013-G combines exceptional cutting performance, precise depth control, and rugged durability to tackle demanding commercial and industrial surface preparation projects. Featuring a 10-inch maximum cutting width and a wide selection of cutter drums, it is designed for contractors who require maximum productivity on large concrete and asphalt surfaces.

Product Information

The GrindLazer Pro DC1013-G is built for professional contractors performing aggressive concrete scarifying, leveling, and coating removal. Its high-output drum-style cutter delivers fast material removal while producing the proper Concrete Surface Profile (CSP) required for epoxy coatings, overlays, waterproofing systems, and concrete repair materials. The 13 HP Honda GX390 commercial engine with Cyclone® air filtration provides reliable power while protecting the engine from harmful airborne dust and extending engine life.

The machine features Graco's DialDown™ Depth Control System, allowing operators to quickly and accurately adjust cutter depth for precise, repeatable cutting performance. Its center-weight "No-Bounce" design keeps the machine balanced over the cutter drum for improved control and a smoother, more consistent cut. Heavy-duty all-steel wheel assemblies provide long service life and accurate cutting, while anti-vibration handlebars reduce operator fatigue during extended operation.

Maintenance-free sealed bearings minimize downtime and protect critical rotating components from abrasive dust. The heavy-duty wide HTD drive belt efficiently transfers engine power while reducing maintenance and increasing durability. An integrated vacuum port allows connection to the optional Graco LazerVac™ dust collection system to help reduce airborne dust, and the dual-function tachometer and hour meter display engine RPM and operating hours for simplified maintenance scheduling.

Operation Manual

Common Applications and Uses

The GrindLazer Pro DC1013-G is commonly used for:

• Concrete surface preparation

• Concrete scarifying

• Surface profiling

• Pavement maintenance

• Concrete leveling

• Coating removal

• Epoxy removal

• Paint removal

• Thermoplastic traffic marking removal

• Mastic removal

• Adhesive removal

• Industrial floor restoration

• Warehouse floor preparation

• Parking garage restoration

• Sidewalk repair

• Trip hazard removal

• Bridge deck preparation

• Airport pavement maintenance

• Highway maintenance

• Decorative concrete preparation

• Overlay preparation

• Waterproofing membrane preparation

• Self-leveling underlayment preparation

• Concrete repair projects

• Commercial and industrial flooring applications

Technical Specifications

Specification	Details
Manufacturer	Graco
Product Name	GrindLazer Pro DC1013-G
Manufacturer Part Number	25M846
Product Type	Walk-Behind Concrete Scarifier
Series	GrindLazer Professional Series
Power Source	Gasoline
Engine Manufacturer	Honda
Engine Model	GX390
Engine Horsepower	13 HP
Engine Type	4-Cycle OHV Commercial Engine
Starting System	Recoil Pull Start
Air Filter Type	Cyclone® Air Cleaner
Cutter Type	Drum
Cutter Drum Diameter	7 in. (178 mm)
Maximum Cutting Width	10 in. (254 mm)
Maximum Production Rate	Up to 600 sq. ft./hour*
Cutting Direction	Forward
Depth Adjustment	Manual DialDown™ Depth Control
Drive System	Heavy-Duty Wide HTD Belt
Vacuum Port	Yes
Water Connection	Optional
Tachometer	Yes
Hour Meter	Yes

Key Features

• Honda GX390 13 HP commercial-grade gasoline engine

• Cyclone® air filtration system

• Heavy-duty all-steel frame

• High-output drum-style cutter

• 10-inch maximum cutting width

• DialDown™ Depth Control System

• Center-weight "No-Bounce" design

• Precision all-steel wheel assemblies

• Adjustable anti-vibration handlebars

• Maintenance-free sealed main bearing

• Heavy-duty wide HTD drive belt

• Integrated vacuum port for LazerVac™ dust collection

• Dual-purpose tachometer and hour meter

• Professional-grade construction for demanding commercial applications

Compatible Applications

The DC1013-G is suitable for concrete and asphalt surfaces in warehouses, manufacturing facilities, parking garages, sidewalks, bridge decks, highways, airports, industrial plants, commercial buildings, loading docks, distribution centers, municipal infrastructure, and other applications requiring professional surface preparation, scarifying, and coating removal.

• Heavy-Duty All-Steel Frame

  • Jobsite Tough Design
• Durable 13 HP Honda Power With Cyclone Filter

  • Contractor-Preferred Power
  • Cyclone filter protects the engine from harmful airborne dust
• Center-Weight Design

  • Efficient “No-Bounce" Cutting
  • Better control for a better quality cut
• DialDown Depth Control System

  • Easy Cutter Depth Control
  • Easy to “dial down” for precise cutting depth control
• Precision All-Steel Wheel Assemblies

  • Accurate Cuts & Long Life
• Anti-Vibration Handlebars
  • Padded for minimal vibration transfer for all-day comfort
• Sealed Main Bearing
  • Maintenance-Free Design
  • Long life and ease-of-use
• Heavy-Duty Wide HTD Drive Belt

  • Eliminate Costly Downtime
• Vacuum Port

  • Less Dust
  • For optional LazerVac vacuum system
• Dual Purpose Tachometer and Hour Meter

  • Easy-to-Read Gauges
  • Ideal for maintenance—ensuring your equipment is in top shape
  • Displays engine RPMs while running

Standard Equipment

The GrindLazer Pro DC1013-G typically includes the complete scarifier machine, Honda GX390 commercial engine, standard cutter drum (configuration may vary), DialDown™ depth control system, heavy-duty all-steel frame, anti-vibration handlebars, sealed bearing system, wide HTD drive belt, tachometer/hour meter, integrated vacuum port, and the operator's manual.

*Actual production rates vary depending on cutter configuration, material hardness, cutting depth, and operator technique.
