GrindLazer Pro DC1013 G DCS(Depth Control System) Gas-Powered Scarifier

GrindLazer Pro DC1013 G DCS(Depth Control System) Gas-Powered Scarifier

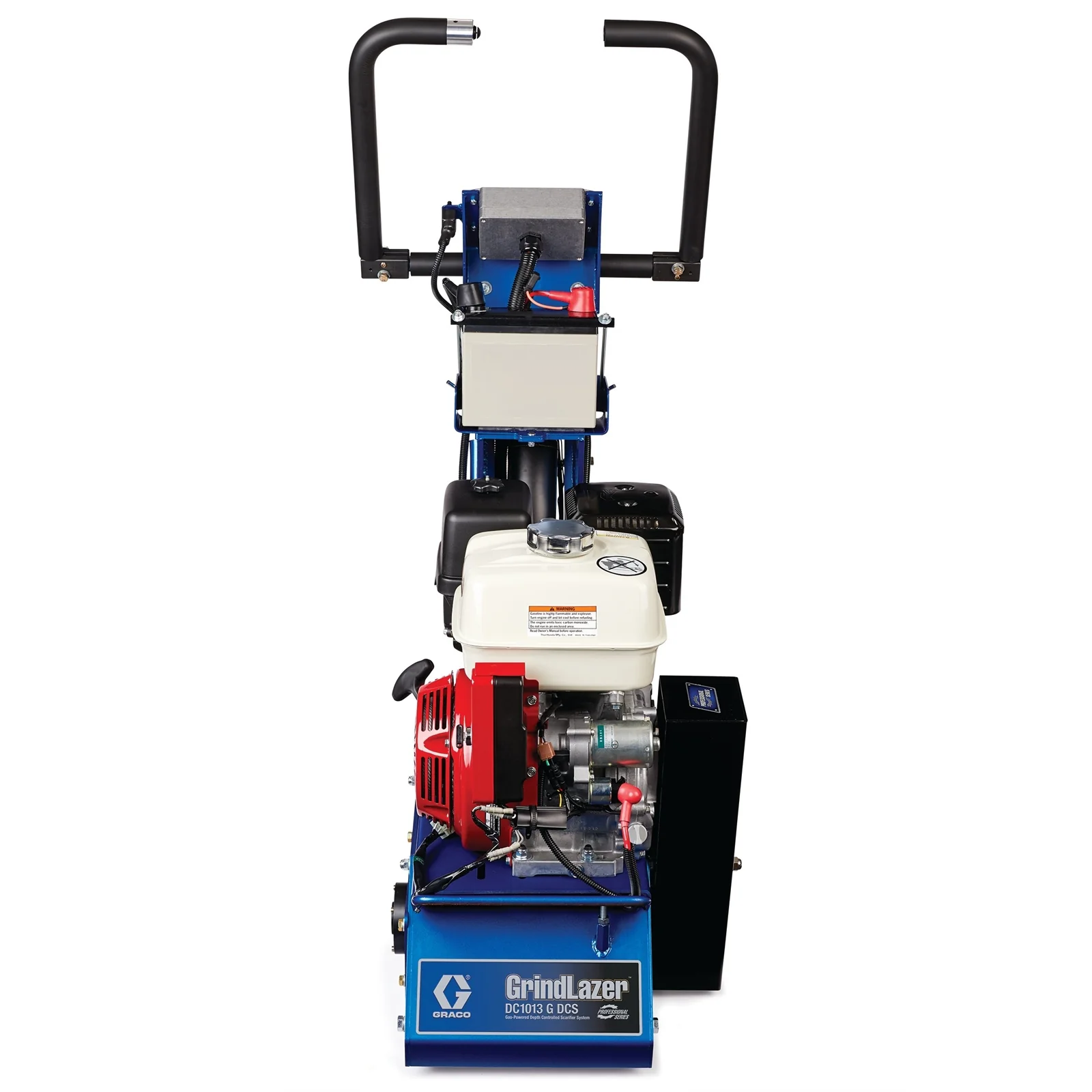

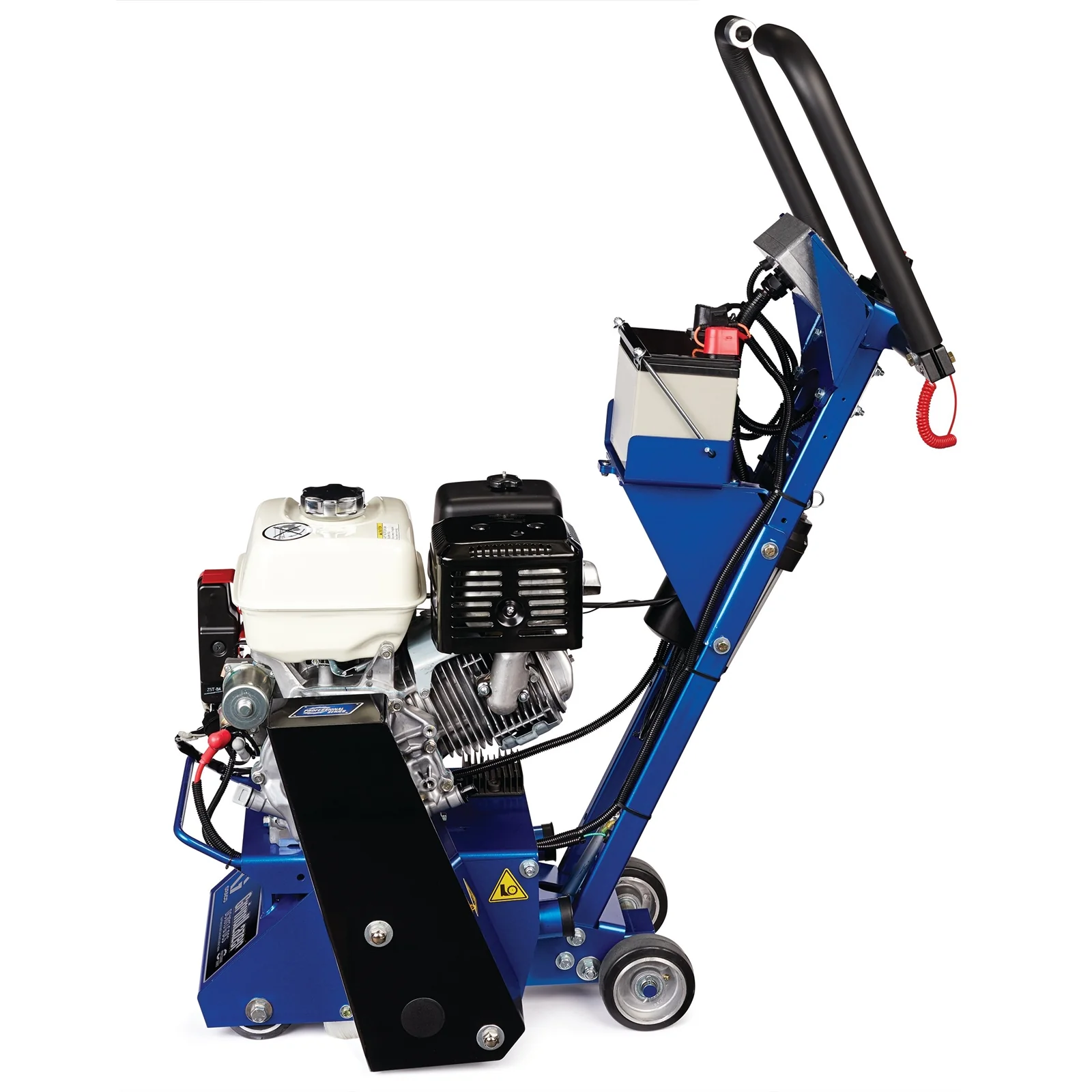

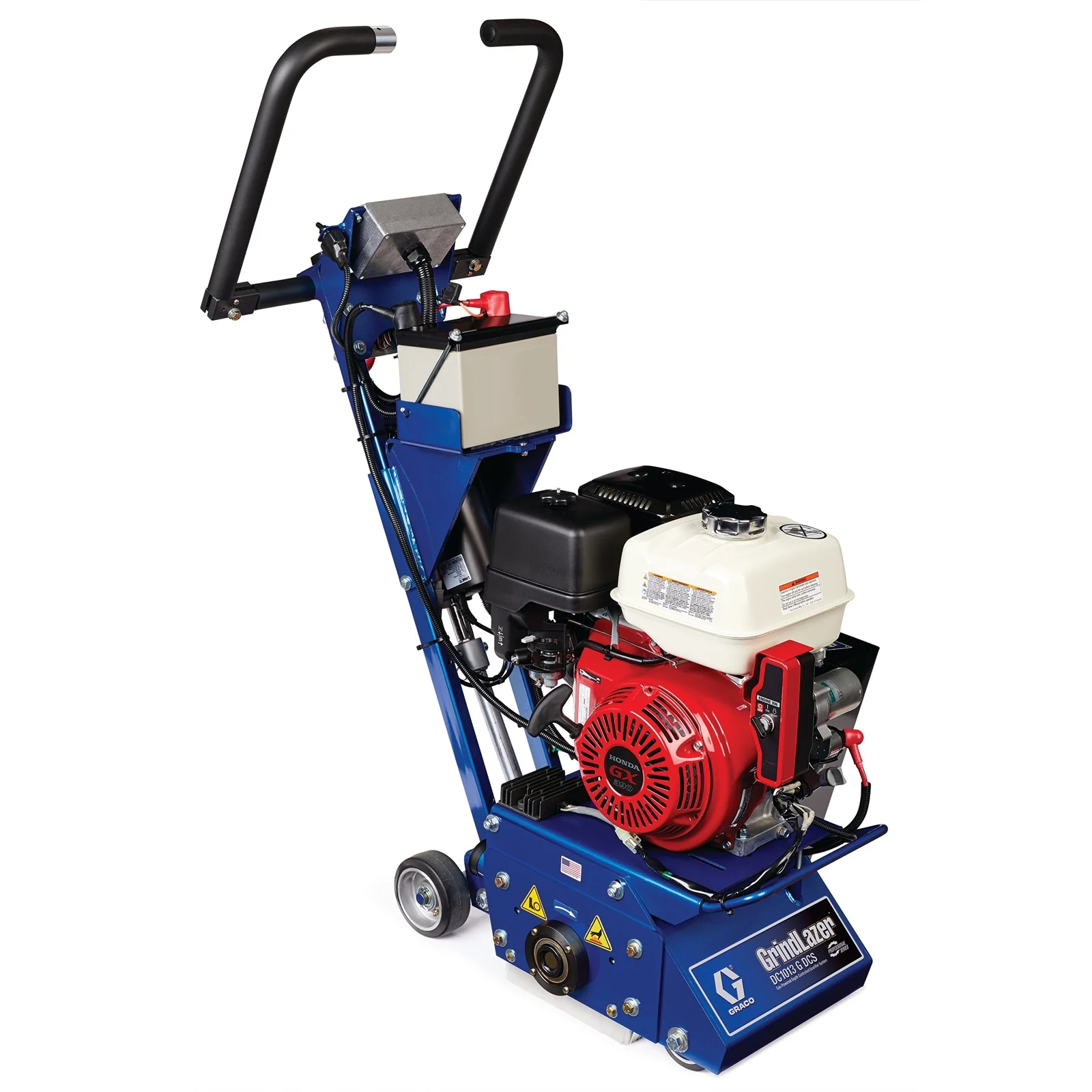

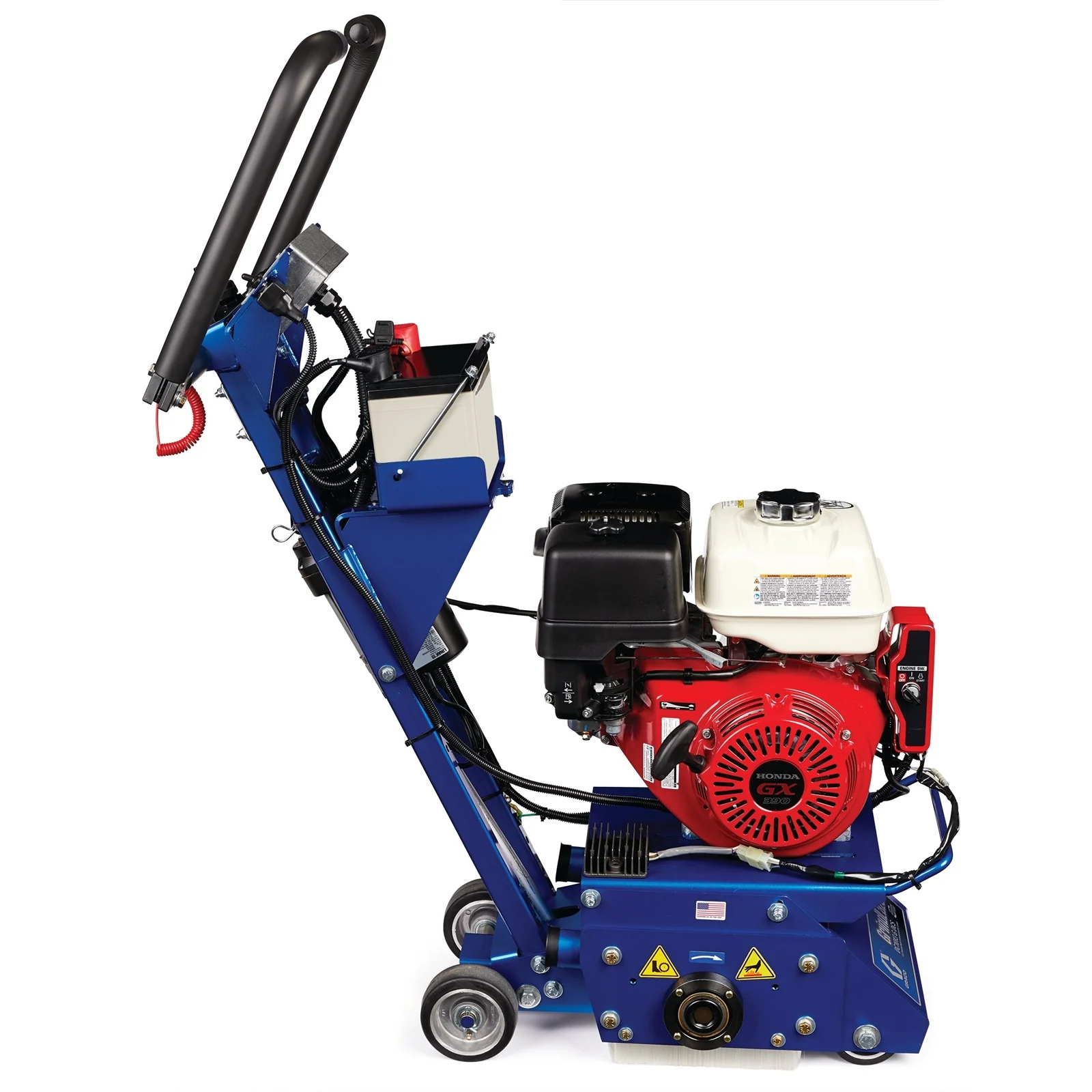

The Graco GrindLazer Pro DC1013-G DCS Gas Powered Scarifier is a high-performance walk-behind concrete scarifier designed for demanding surface preparation, pavement marking removal, concrete leveling, and industrial floor restoration. Powered by a Honda GX390 13 HP commercial-grade gasoline engine with electric start, the DC1013-G DCS combines exceptional cutting performance with Graco's advanced Depth Control System (DCS) to deliver accurate, repeatable cutting depths and maximum productivity. Featuring a 10-inch (254 mm) cutting width and a wide selection of cutter drums, this professional scarifier is ideal for contractors performing aggressive concrete scarifying, coating removal, and pavement maintenance on large commercial and industrial projects.

Product Information

The GrindLazer Pro DC1013-G DCS is engineered to provide precise depth control and high-output performance for professional surface preparation applications. Its drum-style cutting system quickly removes coatings, thermoplastic traffic markings, surface imperfections, and deteriorated concrete while producing the proper Concrete Surface Profile (CSP) required for epoxy coatings, overlays, waterproofing systems, and concrete repair materials.

Graco's advanced Depth Control System (DCS) eliminates manual measuring and guesswork by allowing operators to quickly adjust cutter depth to match changing terrain. The DCS Controller with LiveLook™ Display provides real-time active depth monitoring, user-programmable zero-point calibration, and selectable English or metric units for accurate, repeatable cutting performance. A remote momentary switch mounted on the handlebars enables operators to adjust cutter depth while maintaining full control of the machine.

Powered by a Honda GX390 commercial engine equipped with a Cyclone® air filtration system, the DC1013-G DCS delivers reliable performance while protecting the engine from harmful airborne dust. The heavy-duty all-steel frame, center-weight "No-Bounce" design, precision all-steel wheel assemblies, anti-vibration handlebars, maintenance-free sealed bearings, and heavy-duty wide HTD drive belt provide excellent durability, improved cutting quality, and long service life. An integrated vacuum port connects to the optional Graco LazerVac™ dust collection system to help reduce airborne dust, while the dual-purpose tachometer and hour meter simplify machine monitoring and maintenance scheduling.

Common Applications and Uses

The GrindLazer Pro DC1013-G DCS is commonly used for:

• Concrete surface preparation

• Concrete scarifying

• Surface profiling

• Concrete leveling

• Pavement maintenance

• Coating removal

• Epoxy removal

• Paint removal

• Thermoplastic traffic marking removal

• Mastic removal

• Adhesive removal

• Industrial floor restoration

• Warehouse floor preparation

• Parking garage restoration

• Sidewalk repair

• Trip hazard removal

• Bridge deck preparation

• Airport pavement maintenance

• Highway maintenance

• Decorative concrete preparation

• Overlay preparation

• Waterproofing membrane preparation

• Self-leveling underlayment preparation

• Concrete repair projects

• Commercial and industrial flooring applications

Technical Specifications

Specification	Details
Manufacturer	Graco
Product Name	GrindLazer Pro DC1013-G DCS
Manufacturer Part Number	25N668
Product Type	Walk-Behind Concrete Scarifier
Series	GrindLazer Professional Series
Power Source	Gasoline
Engine Manufacturer	Honda
Engine Model	GX390
Engine Horsepower	13 HP
Engine Type	4-Cycle OHV Commercial Engine
Starting System	Electric Start
Air Filter Type	Cyclone® Air Cleaner
Cutter Type	Drum
Cutter Drum Diameter	7 in. (178 mm)
Maximum Cutting Width	10 in. (254 mm)
Maximum Production Rate	Up to 700 sq. ft./hour*
Cutting Direction	Forward
Depth Adjustment	Depth Control System (DCS)
Drive System	Heavy-Duty Wide HTD Belt
Vacuum Port	Yes
Tachometer	Yes
Hour Meter	Yes

Features

• Depth Control System

  • Eliminate Measuring & Guesswork
  • Quickly & easily adjust the cutter depth to align with ever-changing terrain
  • Accurate cut depth for tape or thermoplastic inlays
  • Eliminates damage due to “dropped drums”

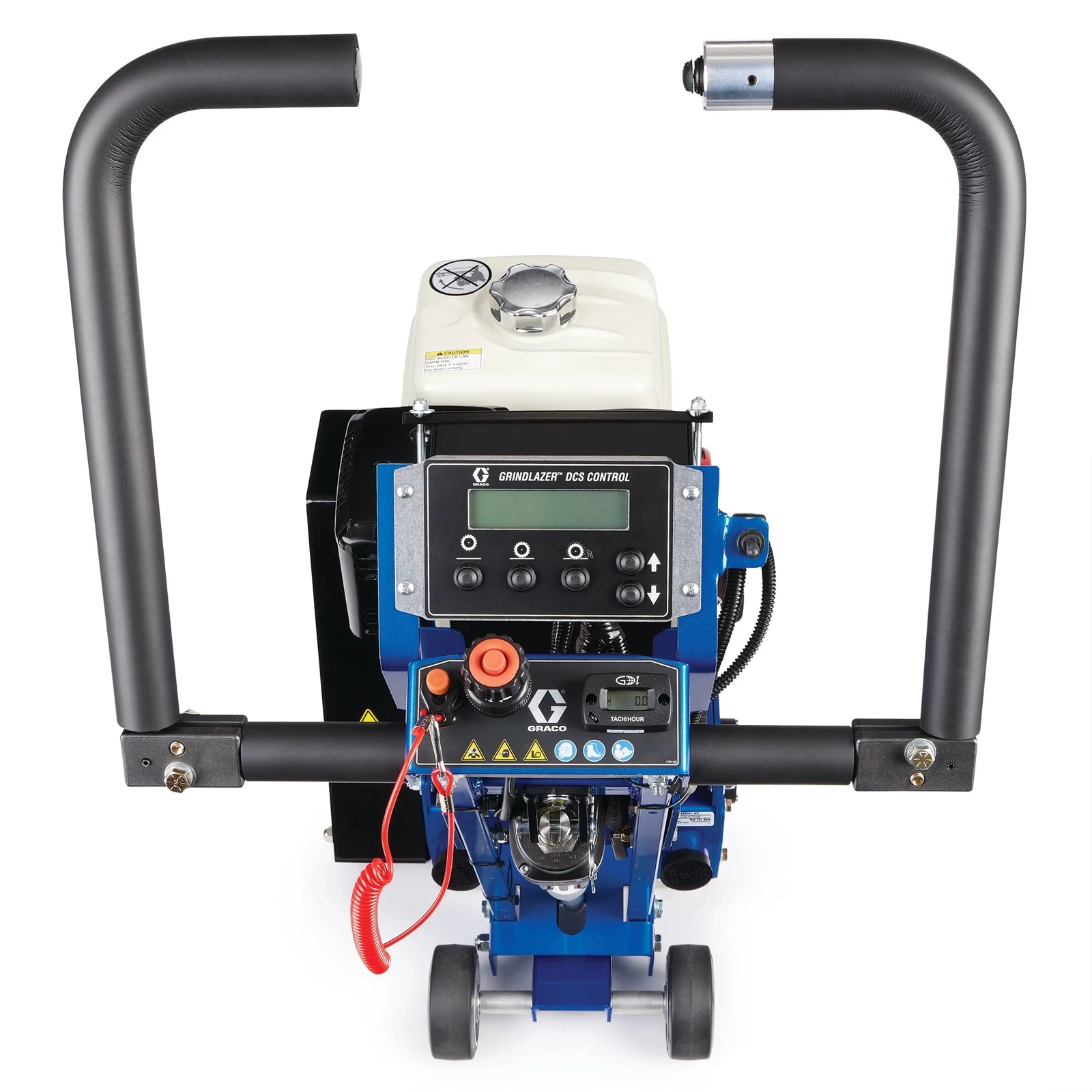

• DCS Controller with LiveLook Display

  • Ultimate Control & Application Flexibility
  • User settable “zero point” to match cutter assembly
  • Displays “active depth”
  • English and metric units
  • Robust design stands up the harsh abuse
  • Fully-encapsulated electronic components
  • Ultimate protection from vibration, jobsite and weather conditions
• Remote Momentary Switch

  • Total Operator Control
  • Control cut depth while keeping both hands on the GrindLazer
• Heavy-Duty All-Steel Frame

  • Heavy-duty design will hold up to the harsh jobsite environment
• Durable 13 HP Honda® Power With Cyclone Filter

  • Contractor-Preferred Power
  • Cyclone filter protects the engine from harmful airborne dust
• Center-Weight Design

  • Efficient “No-Bounce" Cutting
  • Better control for a better quality cut
• Precision All-Steel Wheel Assemblies

  • Accurate Cuts & Long Life

• Anti-Vibration Handlebars

  • Padded for minimal vibration transfer for all-day comfort
• Sealed Main Bearing

  • Maintenance-Free Design
  • Long life and ease-of-use
• Additional Features
  • Heavy-Duty Wide HTD Drive Belt
  • Vacuum Port for optional LazerVac vacuum system
  • Dual Purpose Tachometer and Hour Meter

Compatible Applications

The DC1013-G DCS is suitable for concrete and asphalt surfaces in warehouses, manufacturing facilities, parking garages, sidewalks, bridge decks, highways, airports, industrial plants, loading docks, distribution centers, municipal infrastructure, commercial buildings, and other projects requiring professional scarifying, surface preparation, concrete profiling, and coating removal.

Standard Equipment

The GrindLazer Pro DC1013-G DCS typically includes the complete scarifier machine, Honda GX390 commercial engine with electric start, standard cutter drum (configuration may vary), Depth Control System (DCS) with LiveLook™ display, remote depth adjustment switch, heavy-duty all-steel frame, anti-vibration handlebars, wide HTD drive belt, sealed bearing system, tachometer/hour meter, integrated vacuum port, and the operator's manual.

*Actual production rates vary depending on cutter configuration, material hardness, cutting depth, and operator technique.
