Graco GrindLazer HP DC1525-P — Self-Propelled Propane Concrete Scarifier for High-Production Surface Prep

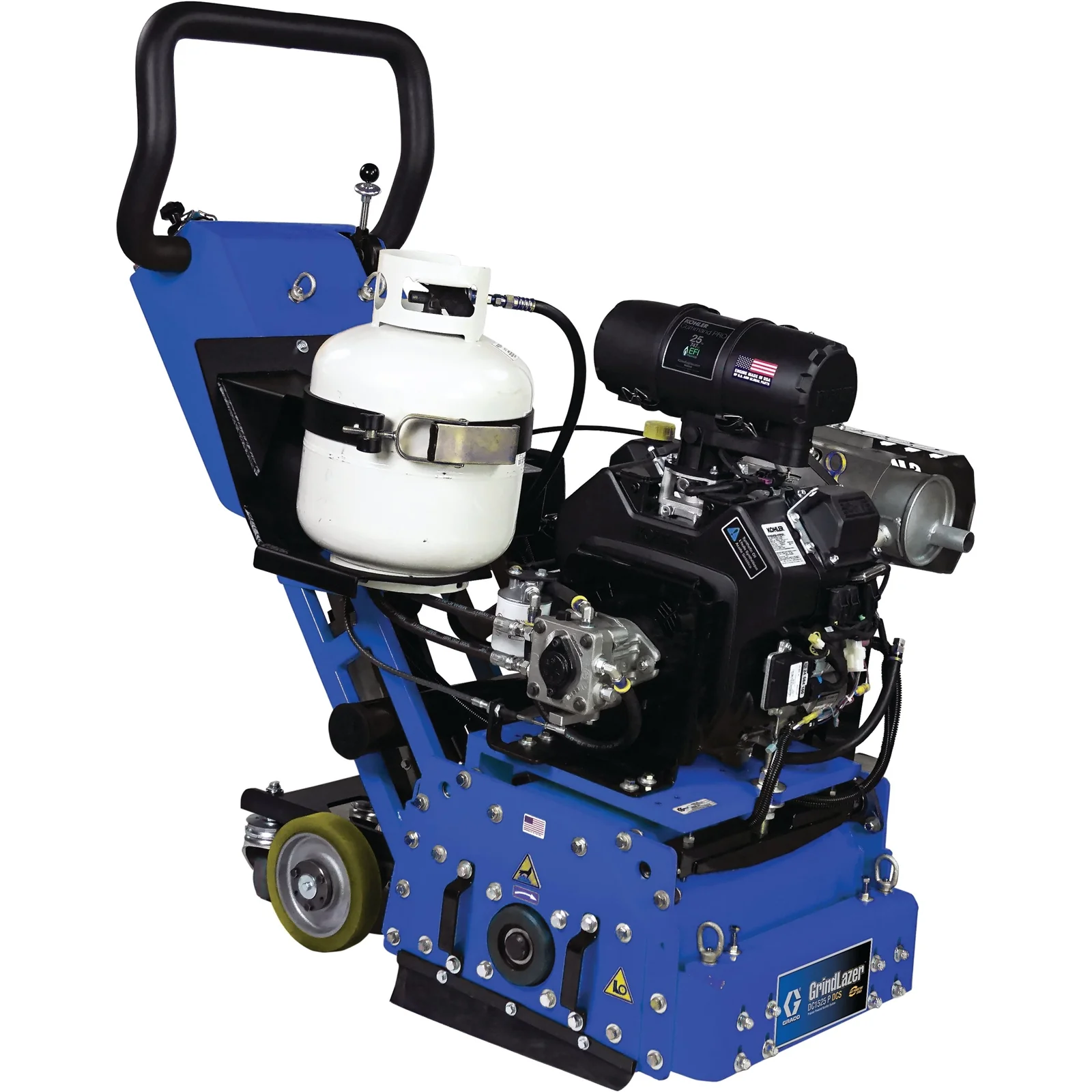

The Graco GrindLazer HP DC1525-P (Model 25R101) is a heavy-duty, self-propelled propane-powered concrete scarifier engineered for high-production surface preparation on large commercial and industrial job sites. Powered by a propane engine and equipped with the low-speed pulley kit, this machine delivers controlled, aggressive material removal from concrete and other hard surfaces. It is designed for contractors who need a cordless, high-output scarifier with the mobility to operate without electrical infrastructure. The DC1525-P is purpose-built for applications including coating removal, concrete profiling, and trip hazard correction.

Unlike electric scarifiers that are tethered to power sources and limited by cord management on large floors, the GrindLazer HP DC1525-P runs on propane, enabling unrestricted movement across expansive slabs, parking structures, and exterior concrete. The low-speed pulley kit differentiates this configuration from standard-speed variants by providing increased torque at the drum, allowing the machine to work more aggressively through thick coatings, stubborn surface contamination, and uneven concrete profiles without stalling.

Key Features & Benefits

Propane-Powered Engine

Propane power eliminates dependence on electrical infrastructure, making this scarifier viable for remote job sites, outdoor applications, and large interior spaces where running power cords is impractical or unsafe. Propane also produces lower emissions than gasoline, which is relevant for enclosed or semi-enclosed environments.

Self-Propelled Drive System

The self-propelled drivetrain reduces operator fatigue significantly over long production runs, allowing a single operator to maintain consistent forward speed and drum pressure across large floor areas. Consistent speed translates directly to a uniform surface profile, which is critical for coating adhesion and flooring system performance.

Low-Speed Pulley Kit Included

The low-speed pulley configuration reduces drum RPM while increasing torque output, enabling the machine to tackle thick coatings, heavy surface buildup, and difficult concrete without bogging down. This makes the 25R101 configuration particularly well-suited for aggressive material removal where a standard-speed drum would struggle.

High-Clearance Drum Width

The 15-inch cutting width allows contractors to cover large floor areas efficiently, reducing the number of passes required compared to smaller walk-behind units. Fewer passes mean lower labor hours per square foot, directly improving project economics.

Graco Drum and Tooling Compatibility

The GrindLazer platform is designed to accept Graco's full range of scarifier drums and cutting tools, giving contractors flexibility to change tooling configurations for different surface conditions or profile requirements without changing machines.

Robust Commercial-Grade Construction

Built for repetitive, high-load commercial use, the GrindLazer HP frame and drivetrain are engineered to withstand the vibration and stress of continuous scarifying operations, reducing downtime and maintenance intervals compared to lighter-duty alternatives.

Common Applications

Concrete Surface Profiling

Scarifying creates an aggressive surface profile (CSP) on concrete slabs to improve mechanical adhesion for epoxy coatings, overlays, urethane systems, and other floor treatments — a requirement on most commercial flooring specifications.

Coating and Paint Removal

The GrindLazer HP effectively strips thick epoxy coatings, traffic paint, rubber tire marks, and other bonded materials from concrete surfaces, preparing the substrate for recoating or repair.

Trip Hazard Correction

Raised concrete joints and slab edges create liability hazards in commercial facilities. The scarifier can mill down high spots to eliminate trip hazards efficiently across large areas.

Parking Structure Deck Preparation

Propane power makes this unit suitable for partially enclosed parking structures where electric machines may lack adequate cord access and gasoline engines pose higher exhaust concerns.

Bridge Deck and Exterior Slab Prep

The self-propelled, propane-powered design handles outdoor horizontal concrete surfaces including bridge decks, aprons, loading docks, and exterior slabs where surface prep precedes waterproofing or overlay applications.

Industrial Floor Rehabilitation

Manufacturing and warehouse floors subjected to heavy traffic, oil contamination, or failed coatings require aggressive mechanical preparation before resurfacing. The DC1525-P delivers the production rate needed for large industrial floor projects.

Concrete Delamination and Laitance Removal

Weak surface laitance and delaminated concrete must be removed before structural overlays or repair mortars can bond properly. Scarifying is a proven method for exposing sound substrate rapidly.

Compatible Materials

• Portland cement concrete slabs
• Epoxy and urethane coatings on concrete
• Traffic and line paint on concrete
• Rubber deposits and tire marks
• Concrete laitance and weak surface layers
• Thin-set mortar residue
• Mastics and adhesive residues (with appropriate tooling)
• Bridge deck concrete surfaces
• Exterior concrete flatwork

Technical Specifications

Specification	Details
Model Number	25R101
Product Line	GrindLazer HP DC1525-P
Power Source	Propane
Drive Type	Self-Propelled
Cutting Width	15 inches (approximate — verify with Graco datasheet)
Pulley Kit Included	Low-Speed Pulley Kit
Speed Configuration	Low-Speed (increased torque)
Intended Use	Commercial/Industrial Concrete Scarifying
Vendor	Graco
SKU / Product Code	25R101

Frequently Asked Questions

Q: Why choose propane over electric for this scarifier?
A: Propane eliminates cord management on large floors and allows operation in areas without accessible 3-phase power. It also suits outdoor and semi-enclosed environments like parking decks where running extension cords is impractical across hundreds or thousands of square feet.

Q: What is the purpose of the low-speed pulley kit in the 25R101 configuration?
A: The low-speed pulley reduces the drum's rotational speed while increasing torque. This is beneficial when removing thick coatings or scarifying hard concrete where a higher-speed drum would skip or stall rather than cut consistently into the surface.

Q: What type of cutting drums and tooling are compatible with the GrindLazer HP DC1525-P?
A: The GrindLazer HP platform accepts Graco's range of scarifier drum assemblies. Specific compatible drum types and flail configurations should be confirmed with Graco or your DTS representative based on your surface preparation requirements.

Q: What surface profile (CSP) does this machine produce?
A: Scarifiers typically produce CSP 5–9 depending on tooling selection, number of passes, and concrete hardness. The low-speed pulley configuration tends to produce more aggressive profiles. Verify target CSP requirements with your coating or overlay manufacturer before selecting tooling.

Q: Is this unit suitable for indoor use given it runs on propane?
A: Propane combustion produces exhaust, so adequate ventilation is required for indoor use. It is generally better suited to outdoor surfaces, parking structures, and large well-ventilated industrial interiors. Confirm site ventilation requirements and local regulations before operating indoors.

Q: Does the 25R101 include the scarifier drum, or is that purchased separately?
A: The 25R101 is sold as a complete unit and package per the product classification. Confirm drum and tooling inclusion details with your Graco representative or DTS sales team, as tooling configurations may vary by order.
