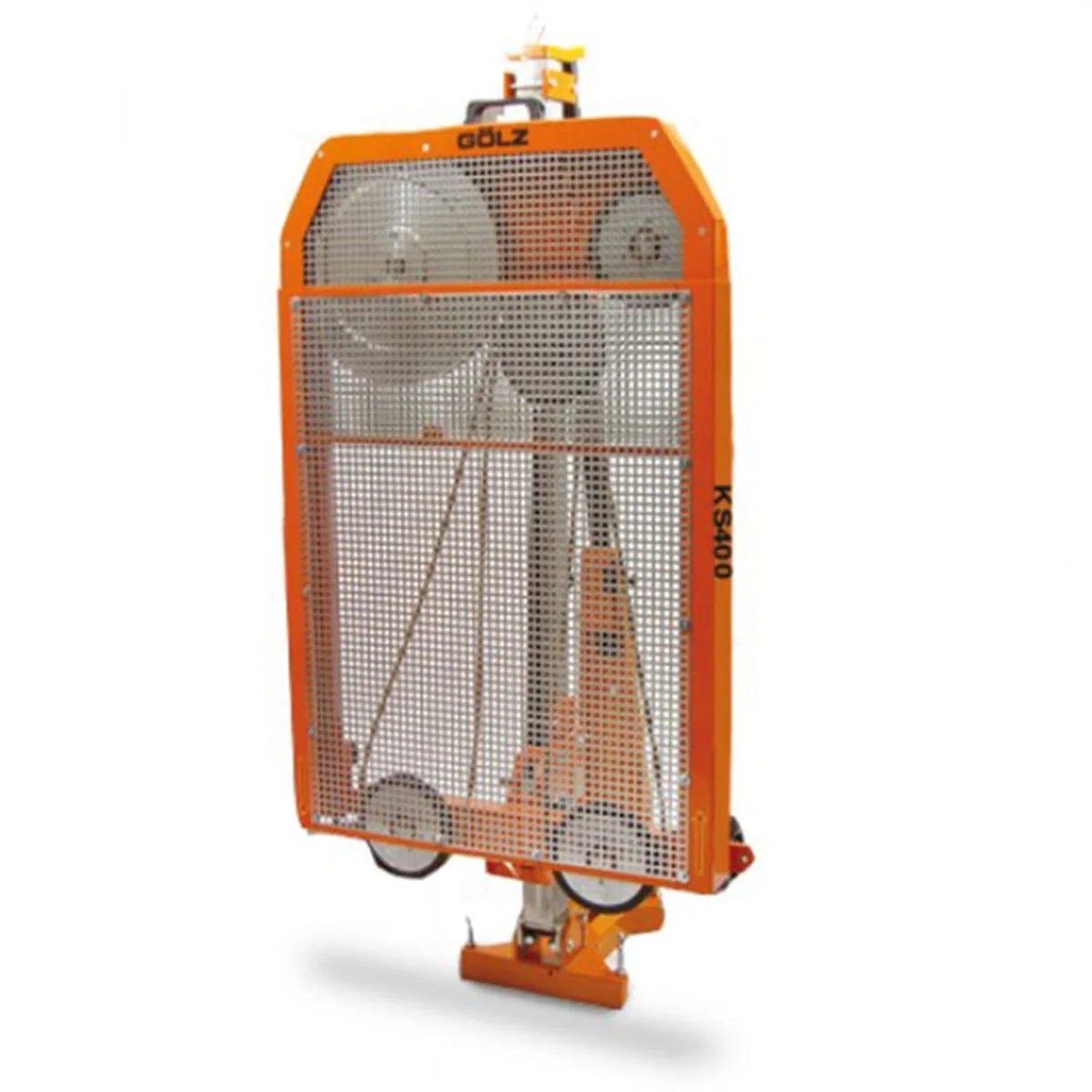

Golz KS400E Wire Saw
KS400 Portable compact wire saw for small cutting jobs from 16 inches by 16 inches (400x400 mm) to 32 inches by 32 inches (800x800 mm)
Compact wire saw based on core drill rig KB400 for small cutting jobs
Especially designed for small and precise cutting jobs, either dry or wet. Based on the modular Gölz system, the KS400 can be converted to a core drill rig within a few minutes.

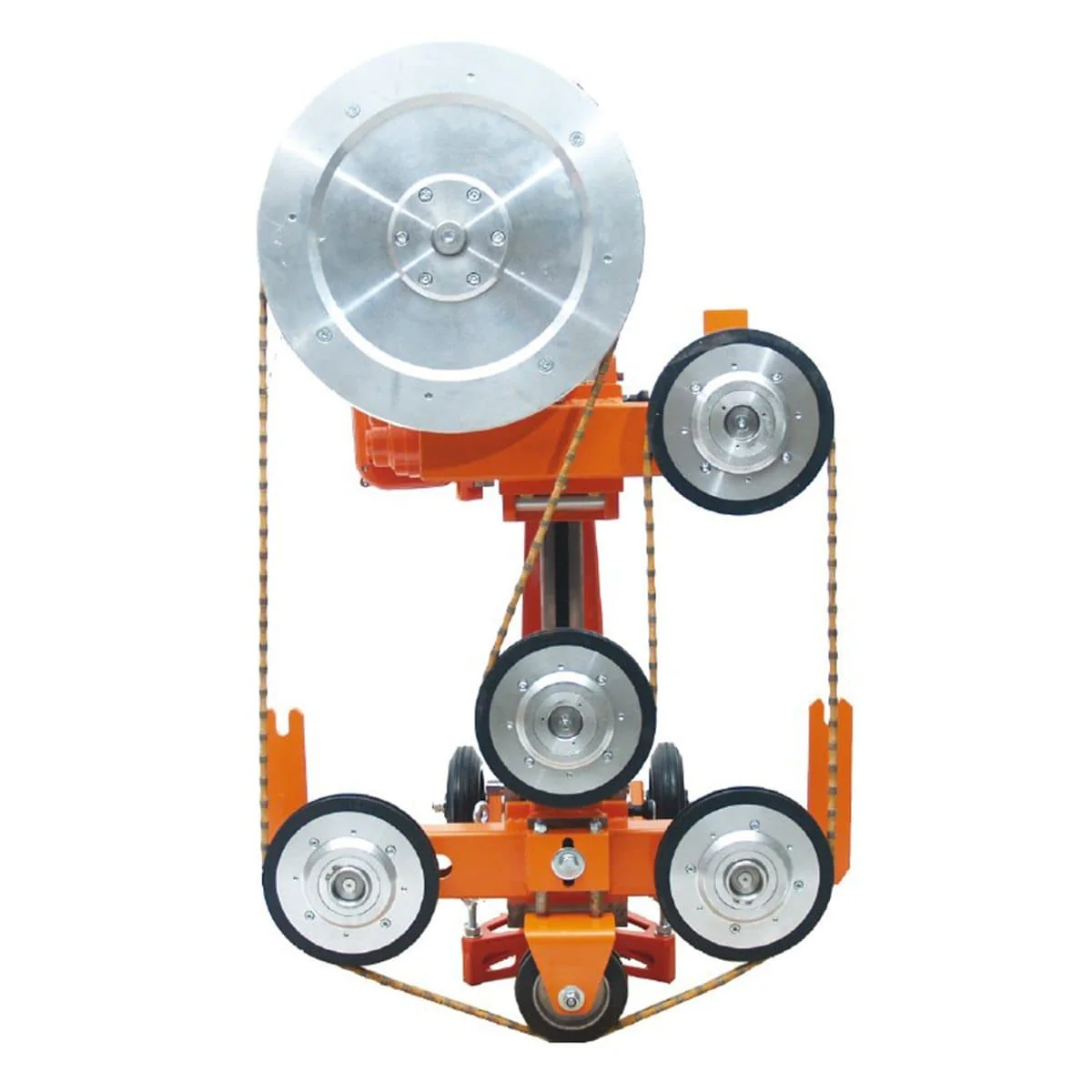

Wire drive:
Driven by a single phase, 3,3 kW core drill motor and automatic feeding unit BorMatic80. Good cutting performance in reinforced steel, dry or wet, by using premium 8 mm Gölz diamond wire.
| US Standard | Metric | |
| Drive | electric | |
| Power | 4.5 hp | 3,3 kW |
| Wire-storage | 95 in. | 2,40 meter |
| Wire-Ø | 8 in. | 200 mm |
| Drive-Ø | 16 in. | 400 mm |
| Dimensions (LxWxH) | 21.65 x 32 x 43 in. | 550x810x1100 mm |
| Weight complete | 216 lbs. | 98 kg |
| Order number | 0283 400 1000 |
Description
KS400 Portable compact wire saw for small cutting jobs from 16 inches by 16 inches (400x400 mm) to 32 inches by 32 inches (800x800 mm)
Compact wire saw based on core drill rig KB400 for small cutting jobs
Especially designed for small and precise cutting jobs, either dry or wet. Based on the modular Gölz system, the KS400 can be converted to a core drill rig within a few minutes.
Wire drive:
Driven by a single phase, 3,3 kW core drill motor and automatic feeding unit BorMatic80. Good cutting performance in reinforced steel, dry or wet, by using premium 8 mm Gölz diamond wire.
| US Standard | Metric | |
| Drive | electric | |
| Power | 4.5 hp | 3,3 kW |
| Wire-storage | 95 in. | 2,40 meter |
| Wire-Ø | 8 in. | 200 mm |
| Drive-Ø | 16 in. | 400 mm |
| Dimensions (LxWxH) | 21.65 x 32 x 43 in. | 550x810x1100 mm |
| Weight complete | 216 lbs. | 98 kg |
| Order number | 0283 400 1000 |
