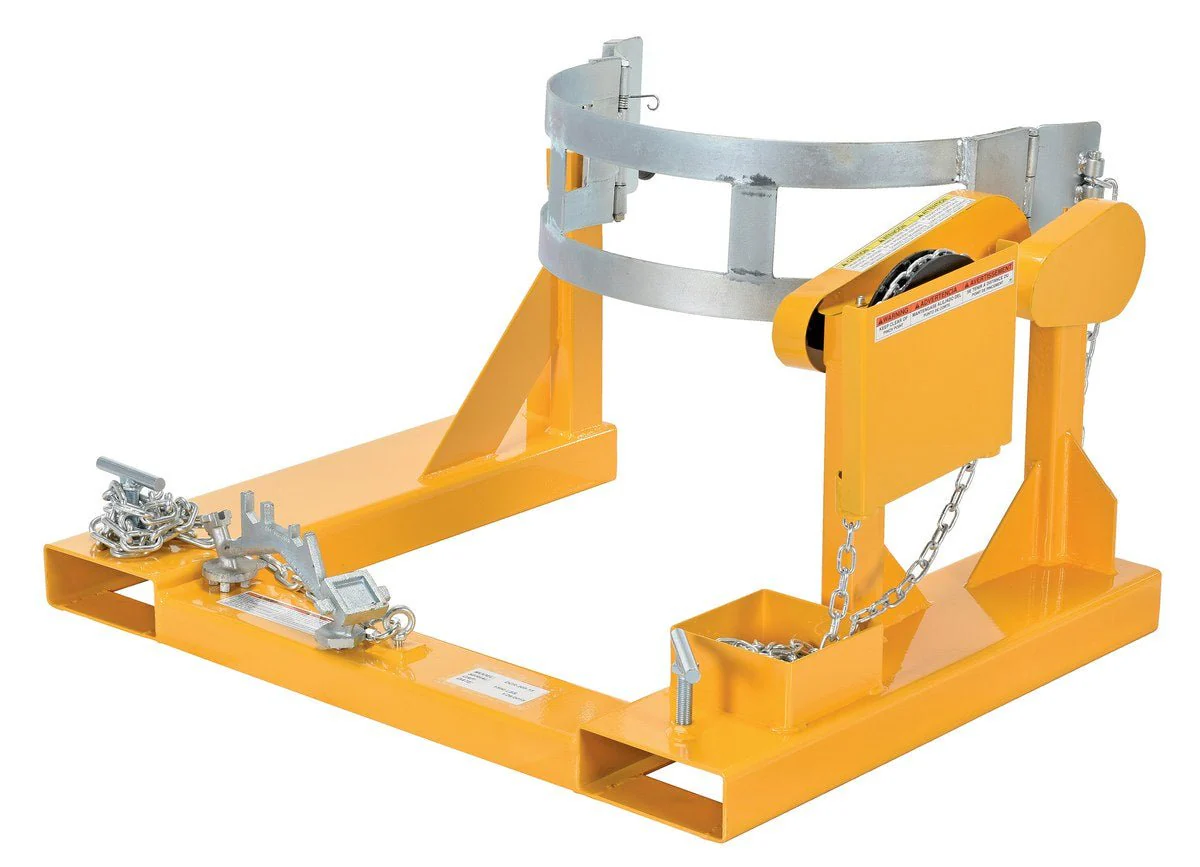

Fork Truck Drum Carrier/Rotators

This product allows you to easily transport and rotate 55-gallon steel drums using a fork truck.

Each standard unit is provided with a 15 foot long chain to allow the drum to be rotated up to 360 degrees from the fork truck operator's seat. Fork pockets measure 7-5/8"W x 2-5/8"H usable, except DCR-205-8 and DCR-205-15 usable is 7" W. DC powered units include (2) two 12V batteries, on-board charger, battery charge indicator gauge, and hand held control on a 4 ft. to 20 ft. long coil cord. Safety restraint is used to secure unit to fork truck. Bung Nut Wrench, model BNW-I, is also included for opening and closing drums.

Fork Mounted Drum Carrier/Rotator
Model	Image	PDF's	Drum Restraint Method	Acceptable Drum Styles	Capacity (lbs)	Crank Turns Per 90 Degrees Rotation	Wt. (lbs)
15 Foot Pull Chain Rotation
DCR-205-8			33" Chain	55 Gallon Steel	800	10	228
DCR-205-15			33" Chain	55 Gallon Steel	1,500	10	222
DCR-205-20			Dual Ratchet Strap	55 Gallon Steel	2,000	15	229
12V DC Battery Powered Rotation
DCR-205-8-DC			36" Chain	55 Gallon Steel	800	--	375
DCR-205-12-DC			36" Chain	55 Gallon Steel	1,200	--	375

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
