Electric Hydraulic Tandem Lifting Tables

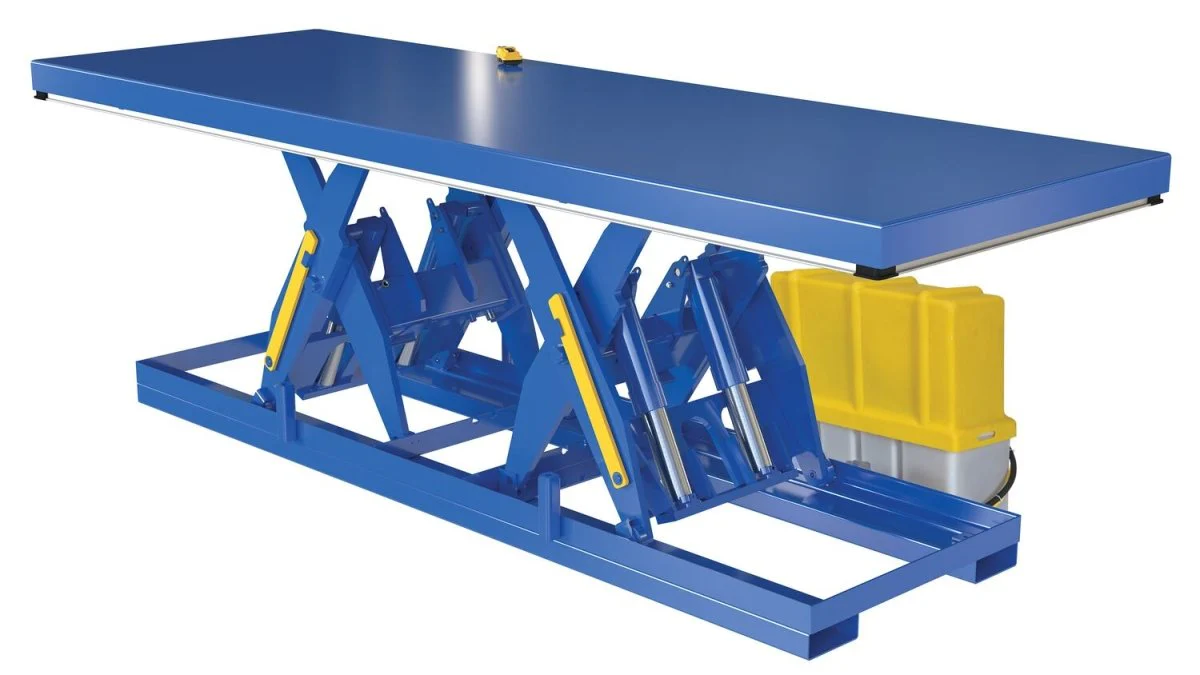

An electric hydraulic tandem scissor lift table is an exceptional asset in a variety of manufacturing and warehouse facilities.
With a tandem design, lifting and positioning items is now a simple and secure process. The durable steel construction allows lifting of both large and heavy items. A hand control is included, allowing the user to keep a distance from the lift for additional safety. AC powered with 460V 3 phase.
- Dual scissor lifts for added strength
- Open design allows loading and unloading from all sides
- Variable height positions
- Liquid paint finish
| Electric Hydraulic Tandem Lifting Tables | |||||
| Model | Overall Size (WxLxH) |
Deck Size (WxL) |
Capacity (lbs) |
Service Range |
Wt. (lbs) |
| EHLT-TL-30144-2-46 | 144"x30"x46" | 144"x30" | 2,000 | 10"-46" | 892 |
| EHLT-TL-48144-2-46 | 144"x48"x46" | 144"x48" | 2,000 | 10"-46" | 933 |
| EHLT-TL-30144-4-46 | 144"x30"x46" | 144"x30" | 4,000 | 10"-46" | 945 |
| EHLT-TL-48144-4-46 | 144"x48"x46" | 144"x48" | 4,000 | 10"-46" | 1112 |
| EHLT-TL-30180-2-58 | 180"x30"x58" | 180"x30" | 2,000 | 10"-58" | 1219 |
| EHLT-TL-48180-2-58 | 180"x48"x58" | 180"x48" | 2,000 | 10"-58" | 1316 |
| EHLT-TL-30180-4-58 | 180"x30"x58" | 180"x30" | 4,000 | 10"-58" | 1543 |
| EHLT-TL-48180-4-58 | 180"x48"x58" | 180"x48" | 4,000 | 10"-58" | 1652 |
KEY:
= Approval Drawing --
= Warranty --
= Testing Certificate
Original: $9,403.22
-65%$9,403.22
$3,291.13
Description
An electric hydraulic tandem scissor lift table is an exceptional asset in a variety of manufacturing and warehouse facilities.
With a tandem design, lifting and positioning items is now a simple and secure process. The durable steel construction allows lifting of both large and heavy items. A hand control is included, allowing the user to keep a distance from the lift for additional safety. AC powered with 460V 3 phase.
- Dual scissor lifts for added strength
- Open design allows loading and unloading from all sides
- Variable height positions
- Liquid paint finish
| Electric Hydraulic Tandem Lifting Tables | |||||
| Model | Overall Size (WxLxH) |
Deck Size (WxL) |
Capacity (lbs) |
Service Range |
Wt. (lbs) |
| EHLT-TL-30144-2-46 | 144"x30"x46" | 144"x30" | 2,000 | 10"-46" | 892 |
| EHLT-TL-48144-2-46 | 144"x48"x46" | 144"x48" | 2,000 | 10"-46" | 933 |
| EHLT-TL-30144-4-46 | 144"x30"x46" | 144"x30" | 4,000 | 10"-46" | 945 |
| EHLT-TL-48144-4-46 | 144"x48"x46" | 144"x48" | 4,000 | 10"-46" | 1112 |
| EHLT-TL-30180-2-58 | 180"x30"x58" | 180"x30" | 2,000 | 10"-58" | 1219 |
| EHLT-TL-48180-2-58 | 180"x48"x58" | 180"x48" | 2,000 | 10"-58" | 1316 |
| EHLT-TL-30180-4-58 | 180"x30"x58" | 180"x30" | 4,000 | 10"-58" | 1543 |
| EHLT-TL-48180-4-58 | 180"x48"x58" | 180"x48" | 4,000 | 10"-58" | 1652 |
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
