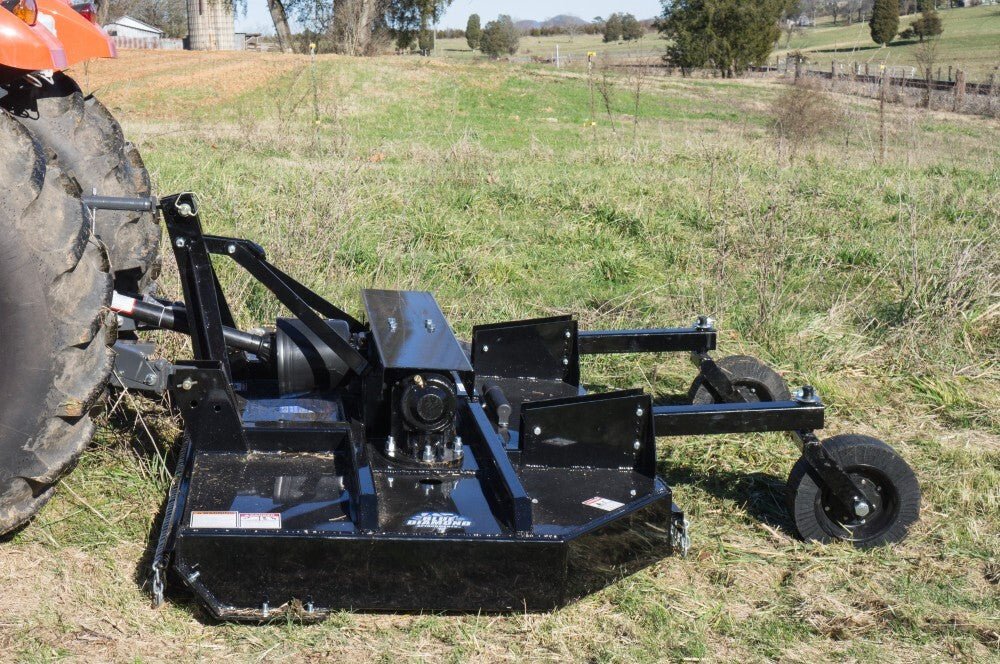

Dual Spindle Cutter – Lift Type – Heavy Duty
The Blue Diamond® Heavy Duty Dual Spindle Cutters are designed for heavy duty applications such as weeds, grass, and brush up to 3” diameter.
These cutters are designed to work with a minimum 42 hp or 52 hp tractors and are available in 8’ and 10’ widths. The cutter uses a dual spindle with two free-swinging blades each, which reduces the shock of impact when a stationary object is contacted. A slip clutch and dual shock couplers protect the gearboxes and drivelines from damage. These come standard with driveline and clutch shields along with front and rear chain discharge shields. Two different types are offered: a lift type and a pull type.
Features
- Fully welded cutter deck and gearbox channel
- 3” diameter cutting capacity
- 5-year limited gearbox warranty
- Replaceable wear skids
- Compact dual spindle design
- Slip clutch protection/dual couplers and front/rear chain discharge shields come standard
- 2-year warranty
Product Specs
| PART NUMBER | 403125 | 403127 |
| MODEL | 8' | 10' |
| MIN. HORSEPOWER | 42 | 52 |
| CUTTING WIDTH | 96" | 120" |
| TRANSPORT WIDTH | 98" | 122" |
| HITCH | Category 1 & 2 | Category 1 & 2 |
| CUTTING HEIGHT | 2”-10” | 2”-10” |
| MAX CUTTING CAPACITY | 3” | 3” |
| DECK THICKNESS | 10 GA | 10 GA |
| SIDE BANDS | 8” | 8” |
| PTO DRIVE SHAFT | Series 5 w/Slip Clutch | Series 5 w/Slip Clutch |
| CENTER DRIVE SHAFT | Shock Coupler Protected | Shock Coupler Protected |
| STUMP JUMPER | 5/8” Plate | 5/8” Plate |
| CENTER GEARBOX | 125 hp | 125 hp |
| OUTBOARD GEARBOXES | 100 hp | 100 hp |
| WHEEL | 1250 | 1480 |
| SKID SHOES | Replaceable | Replaceable |
| GEARBOX WARRANTY | 5 yr limited | 5 yr limited |
| CHAIN GUARDS | Standard | Standard |
