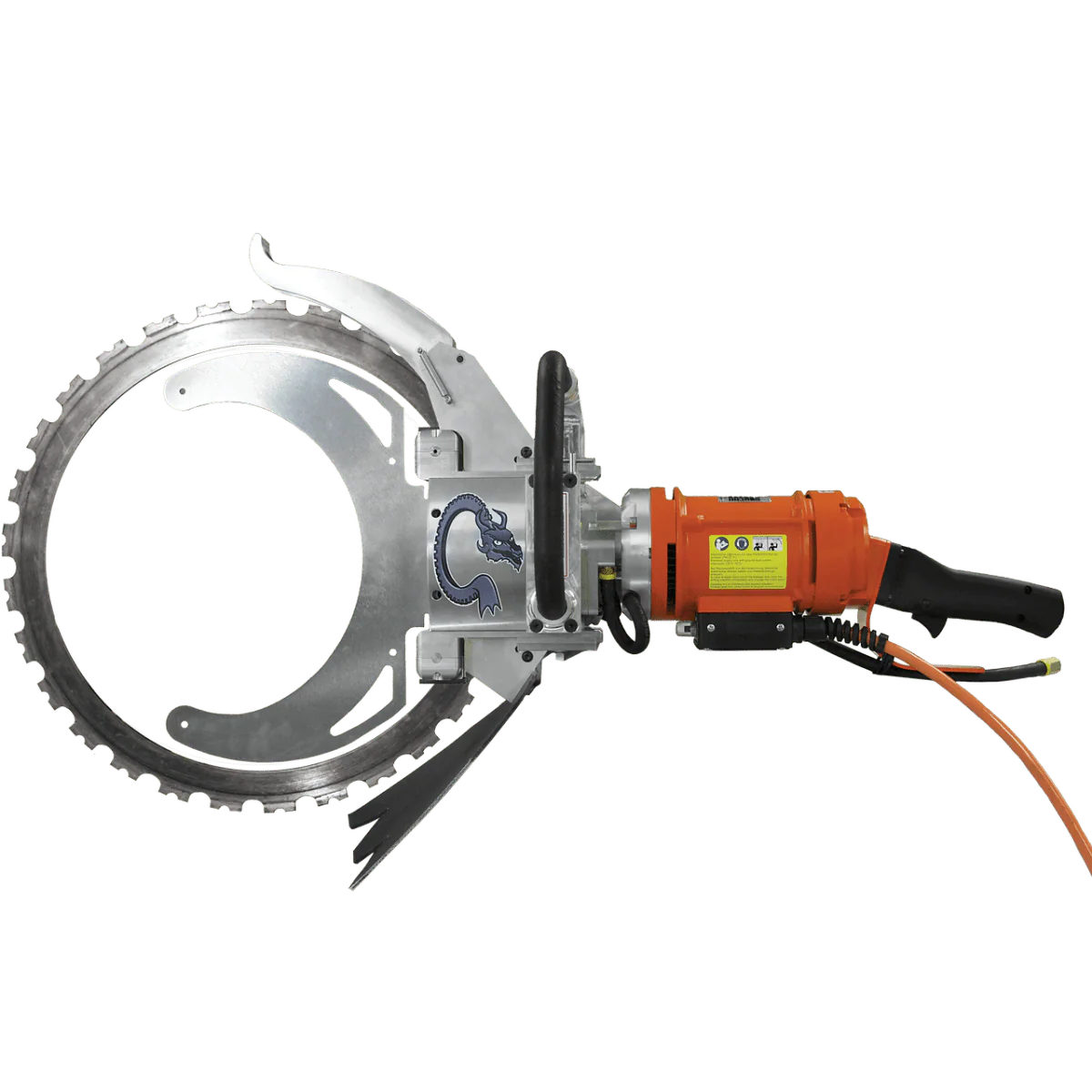

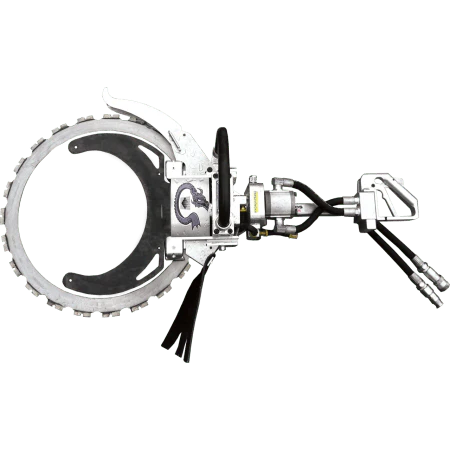

Dragon Ring Saws

Dragon Ring Saws designed for cutting concrete or block with a Ring Saw Blade

Features/Benefits (All Models):

• The ONLY hand saw capable of cutting up to 16" deep in concrete or block
• Best power transfer to blade-where it is needed
• 1/3 less cutting cost than chain sawing
• Eliminate over cuts on corners with this ring saw for concrete
• Up to three times faster than chain sawing
• Diamond blade life up to five times longer
• Light weight

Specifications (All Models):

Minimum Blade Diameter:	16"
Maximum Blade Diameter:	20"
16" Blade Cutting Depth:	12"
20" Blade Cutting Depth:	16"
Blade Cooling:	Water cool only (no dry cutting)

HDS60 Hydraulic Specifications:

PSI (pounds per square inch):	2000 (2500 Max)
Weight:	29.8 lbs.
Connections:	1/2" hose (appox. 12" length) 1/2" fittings

EDS60 Electric Motor Specifications:

Power head:	Weka RS30
Power:	115V, 30A, 3200W 230V, 15A, 3200W
Overload:	electronic
Weight:	34 lbs.
