Crane Spreader Bar

Handle extra-long material easier and more safely

A Star Industries spreader bar for cranes is the perfect solution for handling long and awkward material that tends to bend. It’s great for handling rebar cages as well as beams, trusses, metal roofing and siding.

• Choice of 4 crane spreader bar options and 7 forklift spreader bar options
• Use with rough terrain forklifts, either straight mast or extendable reach that accept forks 7” wide x 2 ½” thick.
• Two separate hook points that allows the spreader bar to be suspended from a crane.
• Crane Spreader Bar Manual

Crane Spreader Bar Models

Model	Type	Size	Capacity	Weight
1142	Fixed length	6ft	10,000 lbs	220 lbs
1177A	Fixed length	12ft	20,000 lbs	725 lbs
1150A	Adjustable	8ft to 12ft	8,000 / 6,400 / 5,000 lbs	534 lbs
1160A	Adjustable	12ft to 20ft	16,800 / 11,200 / 8,000 lbs	1140 lbs

All Crane Spreader Bars have a Center Hook

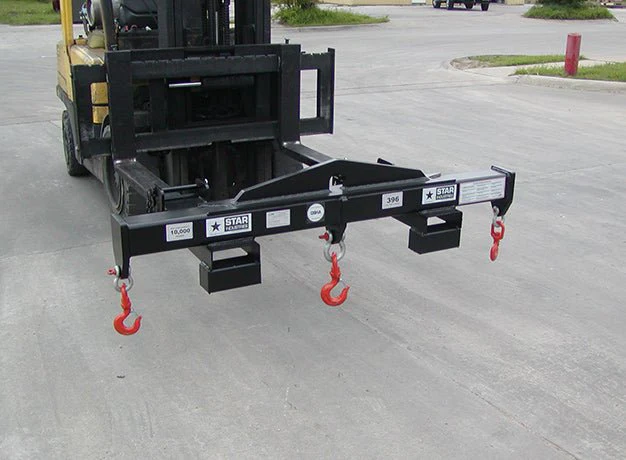

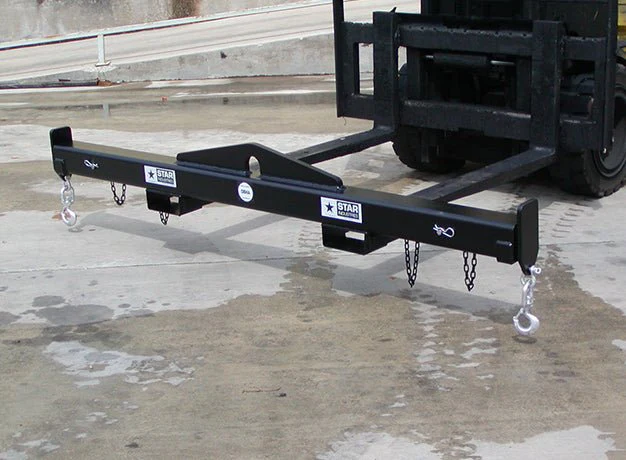

Forklift Spreader Bar Models

Model	Type	Size	Fork Pocket	Capacity	Weight
1140	Fixed length	6ft	39” OC. Requires 48” or wider carriage	10,000 lbs	390 lbs
1140-24CC	Fixed length	6ft	24” OC. Requires 32” or wider carriage	10,000 lbs	390 lbs
1149	Fixed length	7ft	39” OC. Requires 48” or wider carriage	34,000 lbs	830 lbs
1177B	Fixed length	12ft	39” OC. Requires 48” or wider carriage	20,000 lbs	825 lbs
1150C	Adjustable	8ft to 10ft to 12ft	39” OC. Requires 48” or wider carriage	8,000 / 6,400 / 5,000 lbs	545 lbs
1150C-FP300C	Adjustable	8ft to 10ft to 12ft	30” OC. Requires 38” or wider carriage	8,000 / 6,400 / 5,000 lbs	545 lbs
1160B	Adjustable	12ft to 16ft to 20ft	Requires 48” or wider carriage	16,800 / 11,200 / 8,000 lbs	1140 lbs
1160BA	Adjustable includes crane pick points	12ft to 16ft to 20ft	Requires 48” or wider carriage	16,800 / 11,200 / 8,000 lbs	1140 lbs
