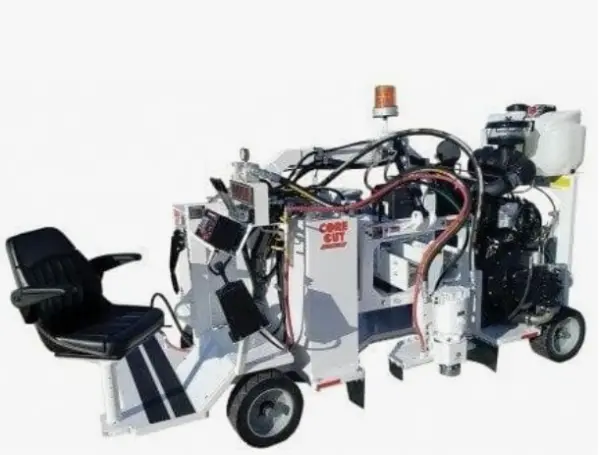

CC114HCS Curb Cutter 36" Diesel Saw

Powerful 36" Diesel Saw Built for Horizontal Cutting Applications

The Diamond Products CC114HSC is a heavy-duty diesel saw designed for precise horizontal cutting. Powered by a 114HP Tier 4 Kubota V3800 engine, this machine features an advanced hydraulic system, modern digital controls, and full-time all-wheel drive to handle the toughest jobs with ease.

• Designed specifically for horizontal cutting applications
• 10” modern digital control touchscreen for intuitive operation
• Ergonomic operator station for maximum comfort and efficiency
• LED lighting package including strobes, work, safety, and backup lights
• Blade angle sensors in both X and Y axes
• Through-hub blade water system for optimal cooling
• 50-gallon on-board water and diesel tanks for extended operation
• Auxiliary hydraulic capacity for expanded tool compatibility

Specifications

Blade Capacity	36” Standard
Engine	114HP Tier 4 Kubota V3800 Diesel
Drive	Full-Time All Wheel Drive (AWD)
Hydraulics	Robust redesigned hydraulic system
Controls	CAN-based electronic drive-by-wire
Blade Angle Control	±20° pitch and roll with 30” blade
Length	148”
Width	66”
Height	76”
Wheelbase	110” x 49”
Weight	7,200 lbs (approx.)
Part #	5801585
Catalog #	108439
