Cat Diamond Blade - Pro 600 for Abrasive Materials
Cat® Asphalt / Abrasive blades are able to cut all types of asphalt and abrasive materials.
Cat® Asphalt / Abrasive blades are designed for intensive use across the 3 performance grades: Good, Better and Best. Each individual product has specifically designed segments shape and geometry which complements the diamond grit and bond formulation that is proved to enhance the cutting performance in terms of fluidity and smoothness of cut, speed and blade life. Each increase in performance rating increases the performance in terms of speed and life by use of higher diamond quality and diamond concentration, bond formulation and segment height. All blades have special undercut protection segments for clearing debris from the cut alleviating undercutting of the segments.
ATTRIBUTES
- High Diamond Concentration & Diamond Quality

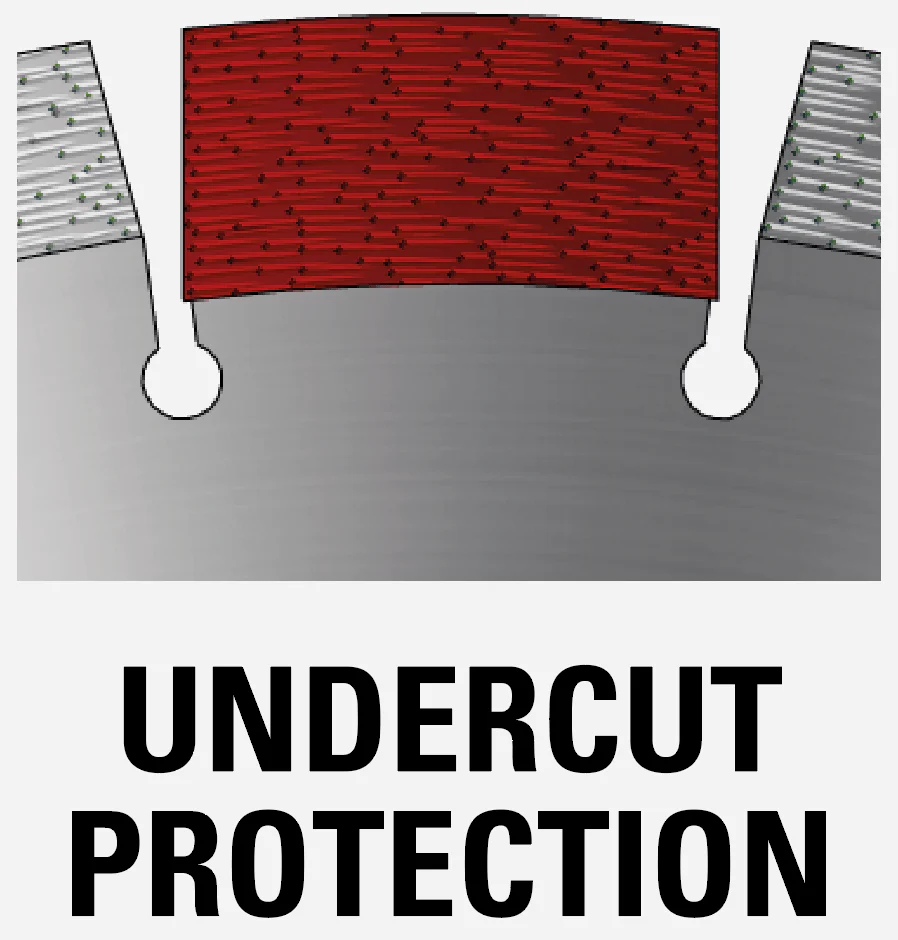

- Undercut Protection Segments To Clear Debris
- Fully Hardened & Heat Treated Steel Core
- Long Life, Good Speed Of Cut, Widest Application Span
- Above Industry Standard Diamond Quality & Bond Formulation
- 2X Laser Welded For Safety & Stability Of Segments
- Keyhole Gullet Design For Dust Extraction From Cut.
APPLICATION
★★★★ Asphalt, Concrete Block Under 15N/Mm², Thermal Block 7 N/Mm², Green Concrete Universal, Green Concrete With Very Hard Aggregate, Green Concrete With Medium Hard Aggregate.
★★★ Lignacite Blocks, Lava Rock, Pumice
★★ Asphalt Over Concrete.
★ Soft Facing Bricks
★★★★ Correct Bond For Application Optimal Performance, Speed & Life
★★★ Good Match Bond For Application Excellent Performance Speed & Life
★★ Acceptable Bond For Application Reduced Performance, Speed & Life
★ Occasional Use Only - Much Reduced Performance, Speed & Short Life - Glazing & Premature Wear Will Occur
| PRODUCT TYPE | DIAMETER | SEGMENT HEIGHT | SEGMENT WIDTH | MAIN ARBOR - BORE | REDUCING RINGS INCLUDED | MACHINES USED SEE KEY |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART NO | CODE NO | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | |
| DA33622U | USAAM801210 | 300 | 12 | 10 | 0.394 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 |

|
| DA33623U | USAAM801410 | 350 | 14 | 10 | 0.394 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 |
|
| DA33624U | USAAM801610 | 400 | 16 | 10 | 0.394 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 |
|
| DA33625U | USAAM801810 | 450 | 18 | 10 | 0.394 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 |
|
Available in USA, non-oSa accredited.
Original: $239.32
-65%$239.32
$83.76
Description
Cat® Asphalt / Abrasive blades are able to cut all types of asphalt and abrasive materials.
Cat® Asphalt / Abrasive blades are designed for intensive use across the 3 performance grades: Good, Better and Best. Each individual product has specifically designed segments shape and geometry which complements the diamond grit and bond formulation that is proved to enhance the cutting performance in terms of fluidity and smoothness of cut, speed and blade life. Each increase in performance rating increases the performance in terms of speed and life by use of higher diamond quality and diamond concentration, bond formulation and segment height. All blades have special undercut protection segments for clearing debris from the cut alleviating undercutting of the segments.
ATTRIBUTES
- High Diamond Concentration & Diamond Quality
- Undercut Protection Segments To Clear Debris
- Fully Hardened & Heat Treated Steel Core
- Long Life, Good Speed Of Cut, Widest Application Span
- Above Industry Standard Diamond Quality & Bond Formulation
- 2X Laser Welded For Safety & Stability Of Segments
- Keyhole Gullet Design For Dust Extraction From Cut.
APPLICATION
★★★★ Asphalt, Concrete Block Under 15N/Mm², Thermal Block 7 N/Mm², Green Concrete Universal, Green Concrete With Very Hard Aggregate, Green Concrete With Medium Hard Aggregate.
★★★ Lignacite Blocks, Lava Rock, Pumice
★★ Asphalt Over Concrete.
★ Soft Facing Bricks
★★★★ Correct Bond For Application Optimal Performance, Speed & Life
★★★ Good Match Bond For Application Excellent Performance Speed & Life
★★ Acceptable Bond For Application Reduced Performance, Speed & Life
★ Occasional Use Only - Much Reduced Performance, Speed & Short Life - Glazing & Premature Wear Will Occur
| PRODUCT TYPE | DIAMETER | SEGMENT HEIGHT | SEGMENT WIDTH | MAIN ARBOR - BORE | REDUCING RINGS INCLUDED | MACHINES USED SEE KEY |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART NO | CODE NO | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | |
| DA33622U | USAAM801210 | 300 | 12 | 10 | 0.394 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 |
|
| DA33623U | USAAM801410 | 350 | 14 | 10 | 0.394 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 |
|
| DA33624U | USAAM801610 | 400 | 16 | 10 | 0.394 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 |
|
| DA33625U | USAAM801810 | 450 | 18 | 10 | 0.394 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 |
|
Available in USA, non-oSa accredited.
