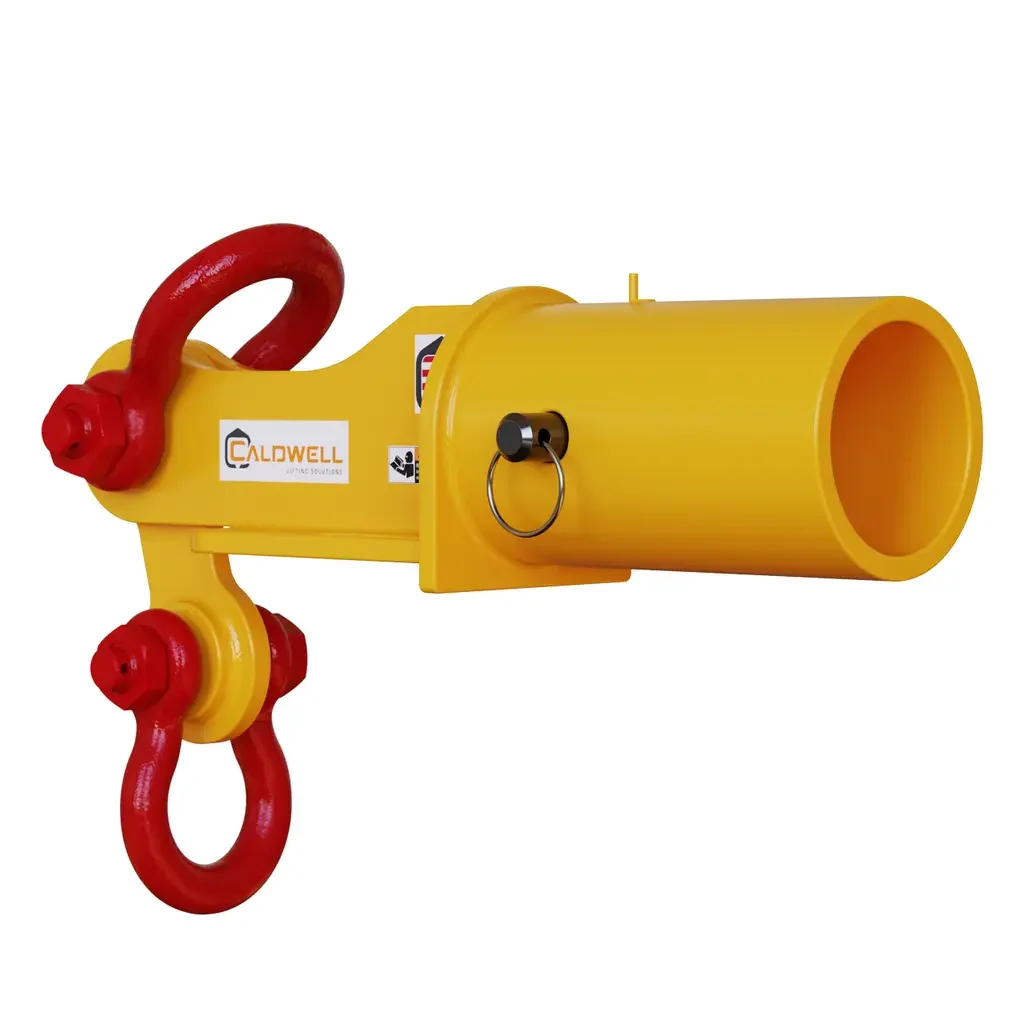

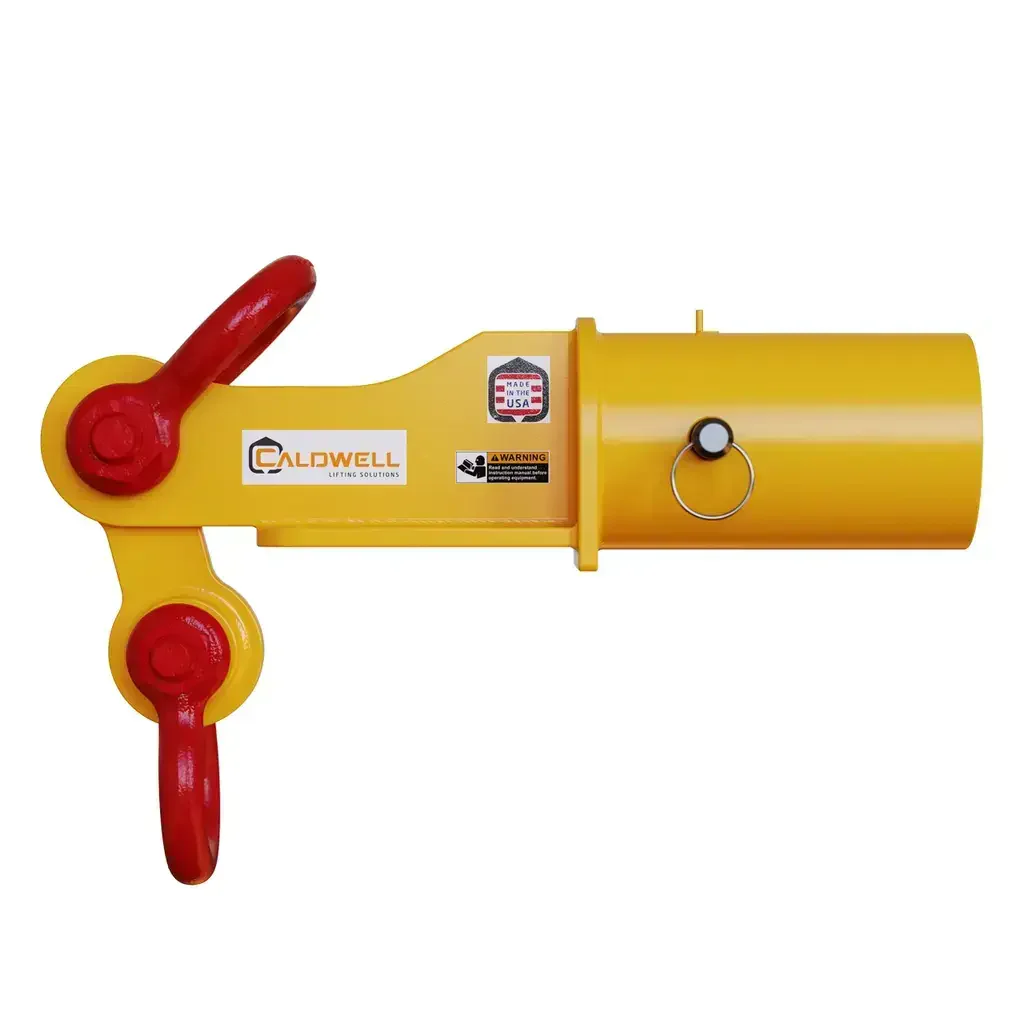

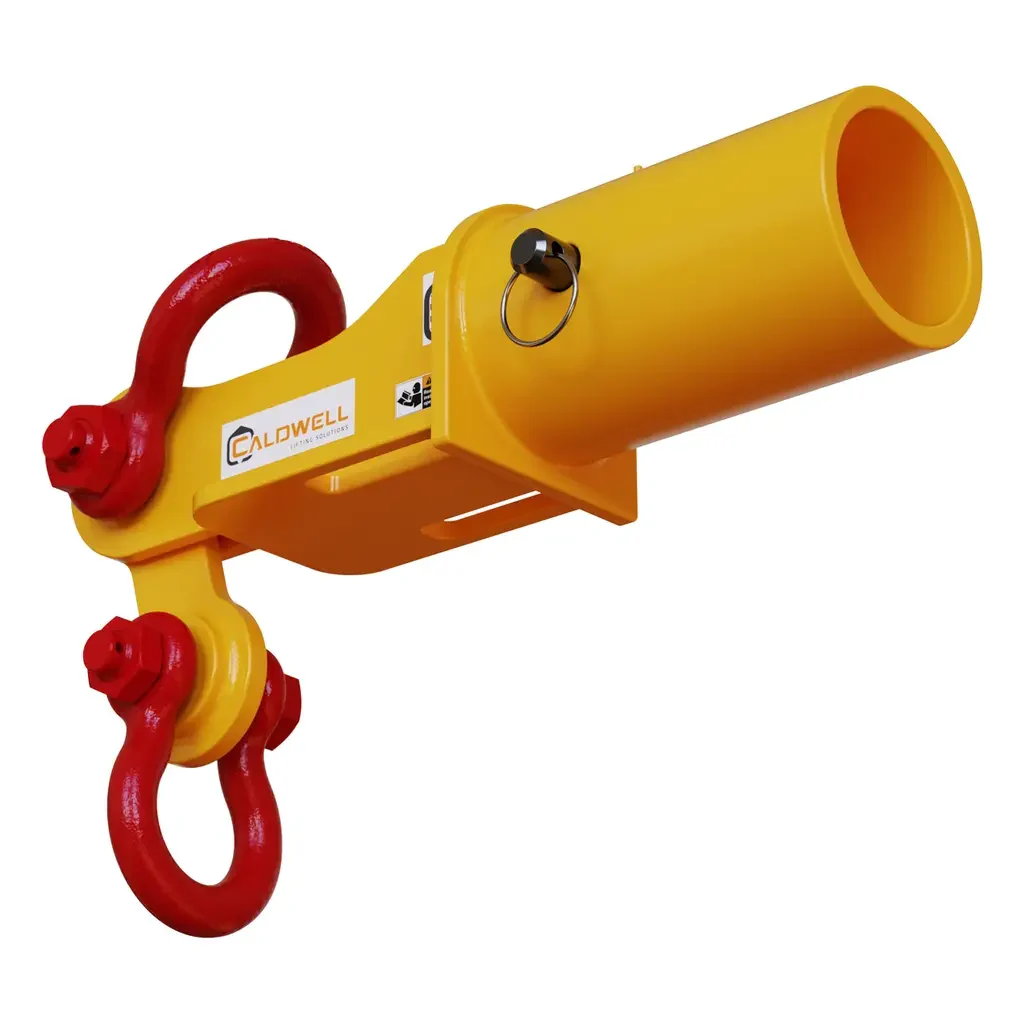

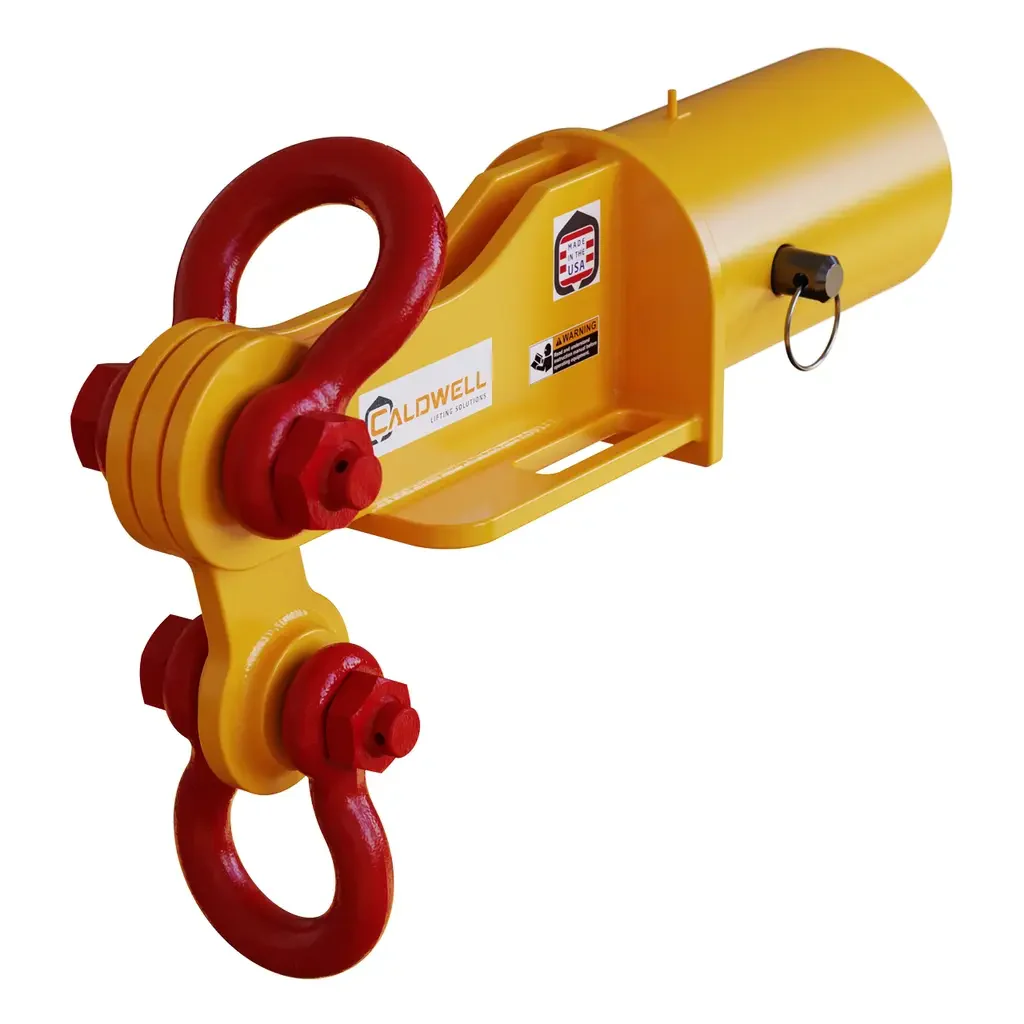

Caldwell Model HC-BEF High Capacity Spreader Beam End Fittings
The Caldwell Model HC-BEF High Capacity Beam End Fittings are engineered components used to build heavy duty spreader beam systems using customer supplied Schedule 80 pipe.
These fittings are designed for industrial lifting applications requiring high load capacity and flexible rigging configurations. Depending on the selected model and assembly, the system supports lifting capacities from 25 tons up to 130 tons.
The HC-BEF system is intended for use in engineered lifting applications where custom beam lengths and heavy load handling are required. When properly assembled according to manufacturer specifications, the system is designed to meet applicable ASME lifting standards.
| Model Number | Capacity (Tons) | Schedule 80 Pipe Size (In.) | Weight (lbs per pair) |
|---|---|---|---|
| BEF-5HC-25 | 25 | 5 | 225 |
| BEF-5HC-50 | 50 | 5 | 275 |
| BEF-8HC-50 | 50 | 8 | 370 |
| BEF-8HC-80 | 80 | 8 | 510 |
| BEF-12HC-80 | 80 | 12 | 710 |
| BEF-12HC-110 | 110 | 12 | 895 |
| BEF-12HC-130 | 130 | 12 | 960 |
Key Features
- High capacity beam end fitting system
- Designed for custom spreader beam construction
- Uses Schedule 80 A53 Grade B steel pipe
- Capacity range from 25 to 130 tons depending on configuration
- Pivoting lower lugs for improved rigging flexibility
- Suitable for heavy industrial lifting applications
- Engineered below the hook lifting component
- ASME compliant when properly assembled
Applications
- Heavy industrial lifting
- Steel fabrication
- Shipyards
- Power generation facilities
- Oil and gas operations
- Infrastructure construction
- Manufacturing plants
- Heavy equipment handling
- Structural steel installation
Specifications
- Product type beam end fittings
- System custom built spreader beam
- Pipe requirement Schedule 80 A53 Grade B
- Capacity range 25 to 130 tons
- Rigging angle range 75 to 90 degrees depending on configuration
- Sold as paired components
- Designed for engineered lifting systems
- ASME compliance when properly assembled
Model Breakdown
- BEF 5HC 25 ton
- BEF 5HC 50 ton
- BEF 8HC 50 ton
- BEF 8HC 80 ton
- BEF 12HC 80 ton
- BEF 12HC 110 ton
- BEF 12HC 130 ton
FAQ
What is the Caldwell HC-BEF system used for
It is used to build custom high capacity spreader beams for industrial lifting applications
What is the load capacity range
The system supports configurations from 25 tons up to 130 tons depending on model
What pipe is required
Schedule 80 A53 Grade B steel pipe is required for proper strength and compliance
Are these fittings sold as a set
Yes they are sold as paired end fittings for beam construction
Is this system ASME compliant
Yes when assembled according to manufacturer specifications and load requirements
