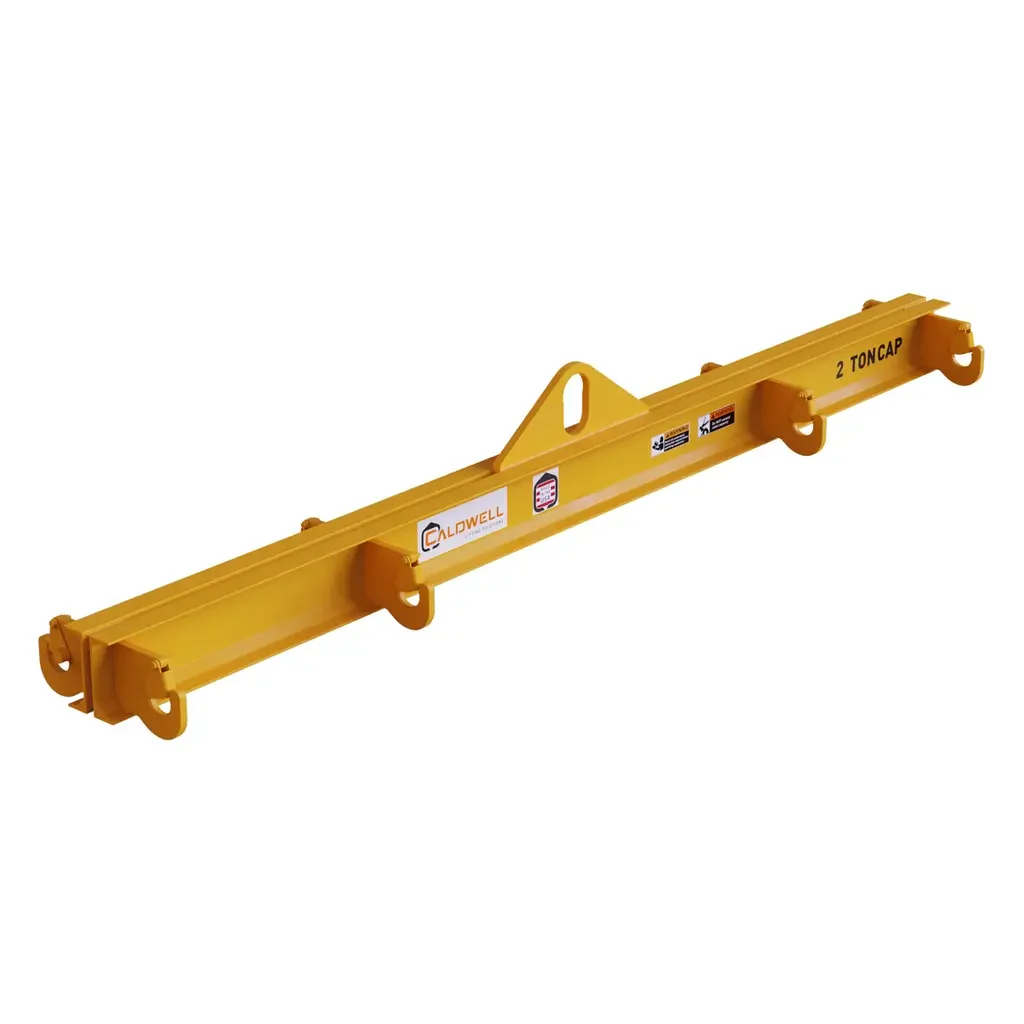

Caldwell Model 22 Twin Basket Sling Lifting Beams

The Caldwell Model 22 Heavy-Duty Twin Basket Sling Lifting Beam is designed for safe, balanced lifting using basket hitch slings. Available in capacities from 0.5 to 20 tons and outside spreads from 3 to 30 feet, these lifting beams provide exceptional load stability while helping reduce sling wear through specially designed hook assemblies.

Manufactured for demanding industrial lifting applications, the Model 22 features a heavy-duty welded steel construction, multiple fixed hook locations for improved load distribution, and compliance with current ASME lifting standards. Whether used in manufacturing, fabrication, construction, steel service centers, or maintenance facilities, the Model 22 delivers reliable performance for a wide variety of lifting tasks.

---

Features

Heavy-Duty Basket Sling Design

Designed specifically for use with slings in a basket hitch configuration for secure and balanced lifting.

Sling Protection Hooks

Specially engineered hooks with safety latches help minimize sling wear and damage during lifting operations.

Multiple Hook Positions

Models over 4 feet include two sets of fixed hooks, with inner hook spacing set at one-half the overall beam spread for greater lifting flexibility.

Wide Selection of Sizes

Available in numerous capacities and spread lengths to match a broad range of lifting applications.

Custom Configurations Available

Additional hook locations, custom spreads, and engineered modifications are available upon request.

ASME Compliant

Manufactured to meet applicable ASME lifting beam standards for safety and performance.

---

Applications

• Steel fabrication
• Structural steel handling
• Manufacturing facilities
• Industrial maintenance
• Machine shops
• Fabrication plants
• Warehouses
• Construction sites
• Heavy equipment maintenance
• Material handling operations

---

Specifications

• Capacity Range: 0.5 to 20 Tons
• Outside Spread: 3 ft to 30 ft
• Basket Hitch Design
• Welded Steel Construction
• Dual Fixed Hook Sets (models over 4 ft)
• Safety Hook Latches
• Multiple Standard Beam Lengths
• Custom Sizes Available
• ASME Compliant

---

Standard Features

• Heavy-duty welded construction
• Twin basket sling configuration
• Fixed lifting hook locations
• Safety latch hooks
• Durable industrial finish
• Engineered lifting design
• Multiple standard capacities
• Available in numerous beam lengths

---

Industries Served

• Steel fabrication
• Construction
• Manufacturing
• Utilities
• Oil & gas
• Aerospace
• Transportation
• Shipbuilding
• Industrial plants
• Distribution centers

---

Available Capacities

• 0.5 Ton
• 1 Ton
• 2 Ton
• 5 Ton
• 10 Ton
• 15 Ton
• 20 Ton

---

Available Outside Spreads

• 3 ft
• 4 ft
• 6 ft
• 8 ft
• 10 ft
• 12 ft
• 14 ft
• 16 ft
• 18 ft
• 20 ft
• 24 ft
• 30 ft

---

Support & Documents

• Product Catalog
• Operation & Safety Manual
• Capacity Charts
• Engineering Drawings (available upon request)

---

Frequently Asked Questions

What is a twin basket sling lifting beam?

A twin basket sling lifting beam is designed to support loads using two basket hitch slings, improving load stability while distributing lifting forces more evenly.

What capacities are available?

The Caldwell Model 22 is available in capacities ranging from 0.5 ton to 20 tons.

Can custom beam lengths be ordered?

Yes. Caldwell offers custom outside spreads and additional hook locations for specialized lifting applications.

Are these lifting beams OSHA and ASME compliant?

The Model 22 is manufactured to comply with applicable ASME standards for below-the-hook lifting devices.
