Caldwell DURA-MOD DM60-6 6-Point Modular Box Spreader Beam System
The Caldwell DURA-MOD® DM60-6 is a modular 6-point box spreader beam system engineered for complex heavy lifting applications requiring maximum stability, flexibility, and load distribution.
The system utilizes interchangeable spreader sections, T-sections, and corner fittings, allowing users to create custom lifting configurations tailored to specific load requirements.
Designed for demanding industrial, offshore, wind energy, manufacturing, and construction applications, the DM60-6 delivers exceptional strength while maintaining an impressive strength-to-weight ratio. The modular knock-down design also simplifies transportation and storage.
Key Features
Modular 6-Point Configuration
- Configurable box spreader beam system
- Six-point lifting design for superior load stability
- Customizable layouts for unique lifting requirements
- Expandable modular architecture
High Capacity System
- Rated for up to 60 metric tons
- Engineered for heavy-duty industrial lifts
- Designed for large and complex loads
- Optimized load distribution
Heavy-Duty Construction
- High-strength steel components
- Excellent strength-to-weight ratio
- Engineered for repeated use in demanding environments
- Durable modular connection system
Transport-Friendly Design
- Knock-down modular construction
- Easier transportation than welded fixed-frame systems
- Reduced shipping costs
- Simplified storage and handling
Compliance
The DM60-6 is designed to comply with:
- ASME B30.20
- ASME BTH-1
- Design Category B
- Service Class 0

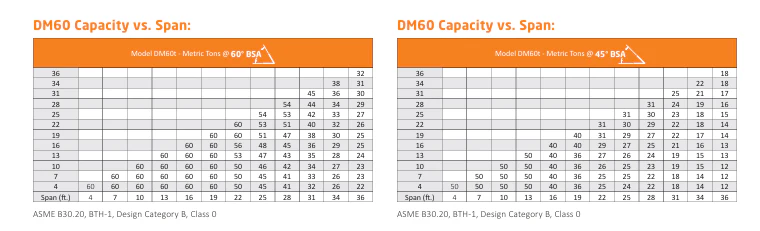

Technical Specifications
| Specification | Details |
|---|---|
| Model | DM60-6 |
| System Type | Modular 6-Point Box Spreader Beam |
| Capacity | 60 Metric Tons |
| Configuration | Box Spreader Beam |
| Design | Modular DURA-MOD® System |
| Compliance | ASME B30.20 / BTH-1 |
| Design Category | B |
| Service Class | 0 |
| Transport Design | Knock-Down Modular Construction |
| Rigging Compatibility | Chain, Wire Rope, Synthetic Slings |
Assembly Design
The DM60-6 assembly is designed around:
| Component | Rating |
|---|---|
| Top Shackle | 35-Ton Carbon Bolt-Type |
| Bottom Shackle | 25-Ton Carbon Bolt-Type |
Shackles and slings are not included and must be selected as part of the lifting plan. Synthetic slings, chain slings, and wire rope slings may all be used.
Standard Components
DM60-CF Corner Fitting
| Specification | Value |
|---|---|
| Component | Corner Fitting |
| Weight | 340 lbs. |
Spreader Sections
| Model Number | Description | Weight (lbs.) |
|---|---|---|
| DM50-SS-1 | 1 ft. Spreader Section | 85 |
| DM50-SS-2 | 2 ft. Spreader Section | 125 |
| DM50-SS-3 | 3 ft. Spreader Section | 165 |
| DM50-SS-6 | 6 ft. Spreader Section | 275 |
| DM50-SS-12 | 12 ft. Spreader Section | 500 |
Corner fittings and spreader sections include one bolt kit, while T-sections include two bolt kits.
Applications
Wind Energy
- Tower sections
- Turbine components
- Nacelle lifting
- Blade support systems
Heavy Manufacturing
- Fabricated structures
- Industrial equipment
- Machinery assemblies
- Structural components
Construction
- Modular construction
- Large structural lifts
- Heavy steel erection
- Infrastructure projects
Offshore & Marine
- Skid packages
- Modules
- Equipment handling
- Marine fabrication
Benefits
Superior Load Stability
The 6-point box configuration provides significantly greater stability than traditional two-point spreader beam systems.
Flexible Configurations
Users can combine spreader sections, T-sections, and corner fittings to create custom lifting geometries.
Reduced Transportation Costs
The modular knock-down design allows easier shipping and storage than large welded beam systems.
High Strength-to-Weight Ratio
Engineered to maximize lifting capacity while minimizing system weight.
