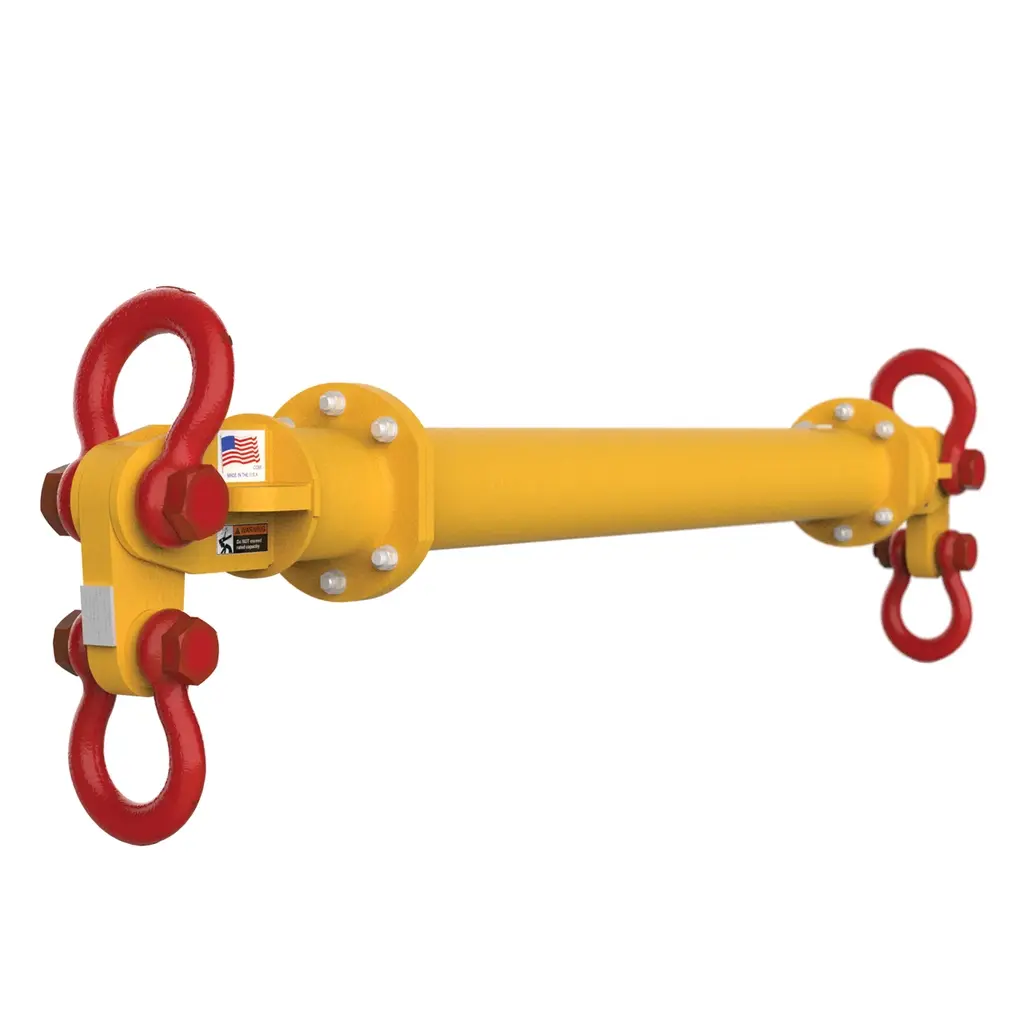

Caldwell DURA-MOD DM110 Modular Spreader Beam
Configure in spreads of 6' to 59'L. Order Spreader Sections, End Fittings, and Drop Links to build the beam you want.
Or choose a Starter Set and save. One bolt kit included with each End Fitting and Spreader Section. Additional Bolt Kits can be ordered separately.
- Handles loads up to 110 metric tons

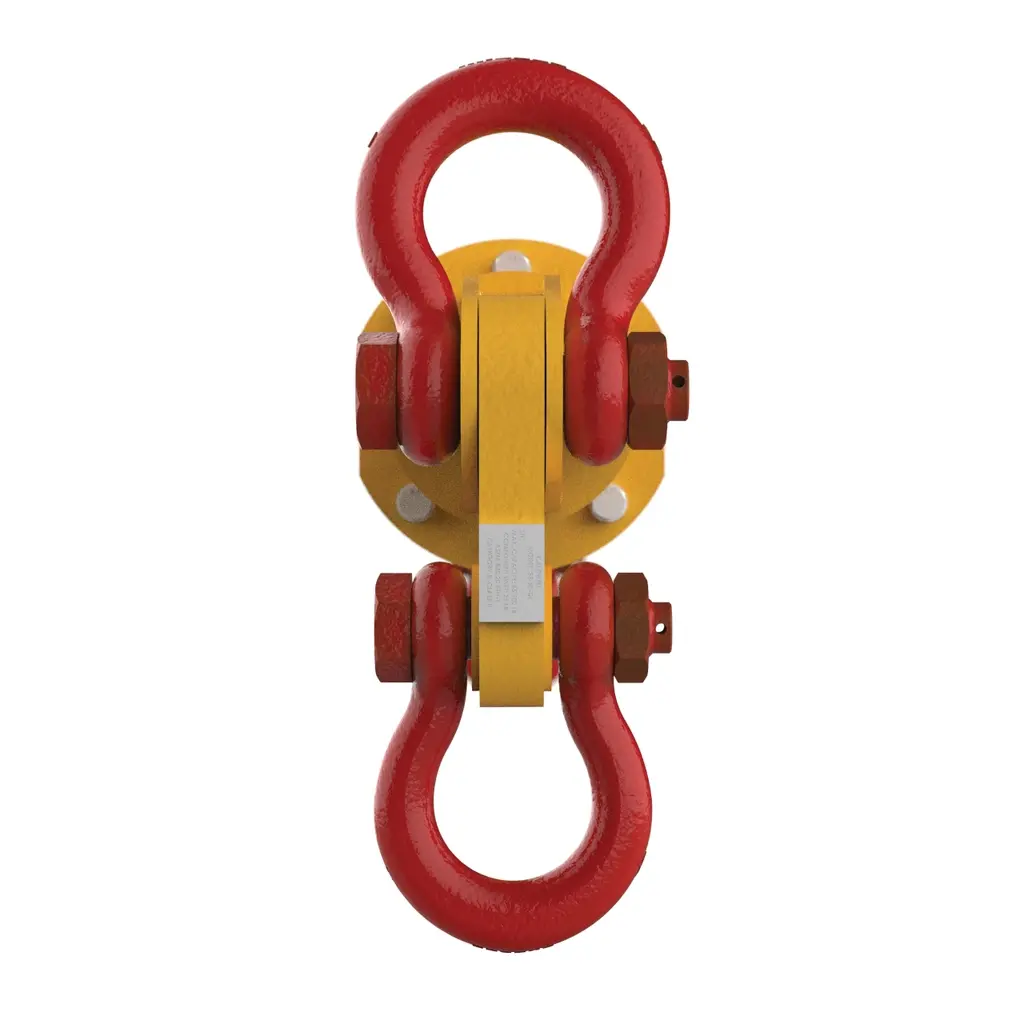

- DM110 assembly designed for a 85-ton, carbon, bolt-type top shackle and a 55-ton, carbon, bolt-type bottom shackle
System Components & Weights
| Model Number | Description | Weight (lbs.) |
|---|---|---|

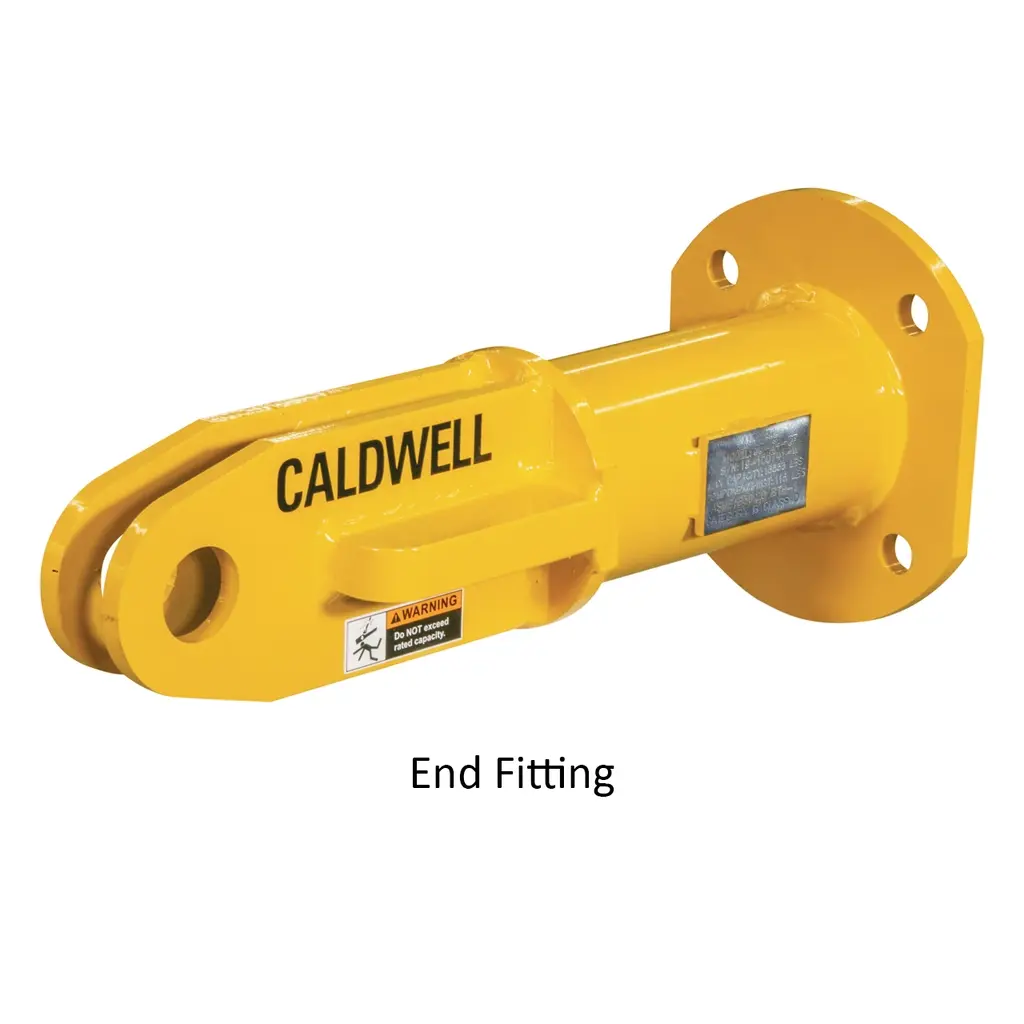

| DM110/170-EF | End Fitting | 440 |

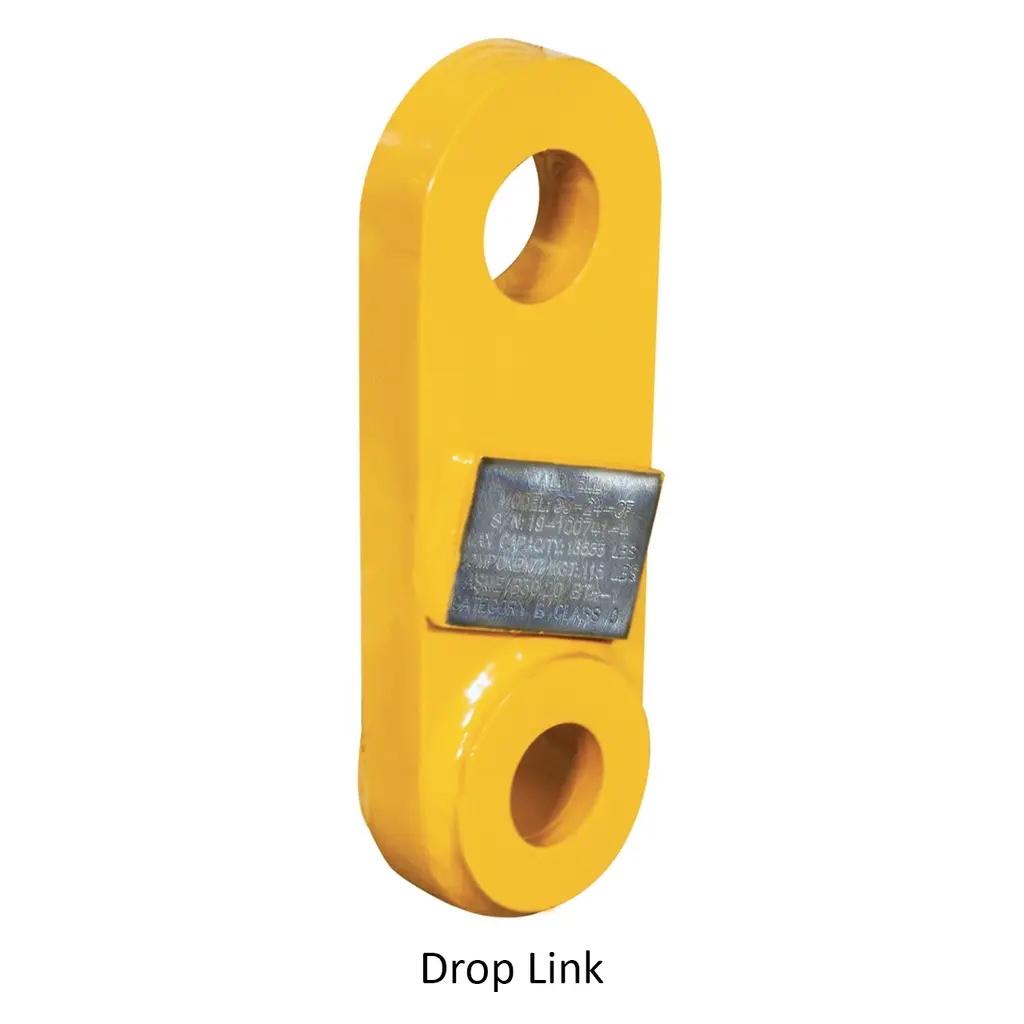

| DM110/170-DL | Drop Link | 160 |
| DM110-SS-20 | 20 ft. Spreader Section | 1,425 |
| DM110-SS-10 | 10 ft. Spreader Section | 775 |
| DM110-SS-8 | 8 ft. Spreader Section | 645 |
| DM110-SS-6 | 6 ft. Spreader Section | 515 |
| DM110-SS-4 | 4 ft. Spreader Section | 380 |
| DM110-SS-2 | 2 ft. Spreader Section | 255 |
| DM110-SS-1 | 1 ft. Spreader Section | 185 |
| Bolt Kit | Complete Bolt Kit Assembly | 4.2 Each Kit |
Component weights are based on Caldwell's published DURA-MOD DM110 system data.
Ideal Applications
- Heavy equipment and machinery lifting
- Offshore and marine construction
- Structural steel erection
- Modular process skids and plant modules
- Energy and power generation projects
- Shipbuilding and fabrication facilities
- Infrastructure and bridge construction
- Industrial maintenance and turnaround projects
- Crane rental and heavy lifting operations
DURA-MOD DM110 NOTES
- Bolts, Nuts and Washers can be reused as long as Anti-Seize Thread coating is used
- Slings and shackles are not provided as part of this assembly. Synthetic textile, chain and wire rope slings may be used. Consult your sling supplier as part of your lifting plan
- Reference the DM110 Capacity Vs. Span Chart for additional information
