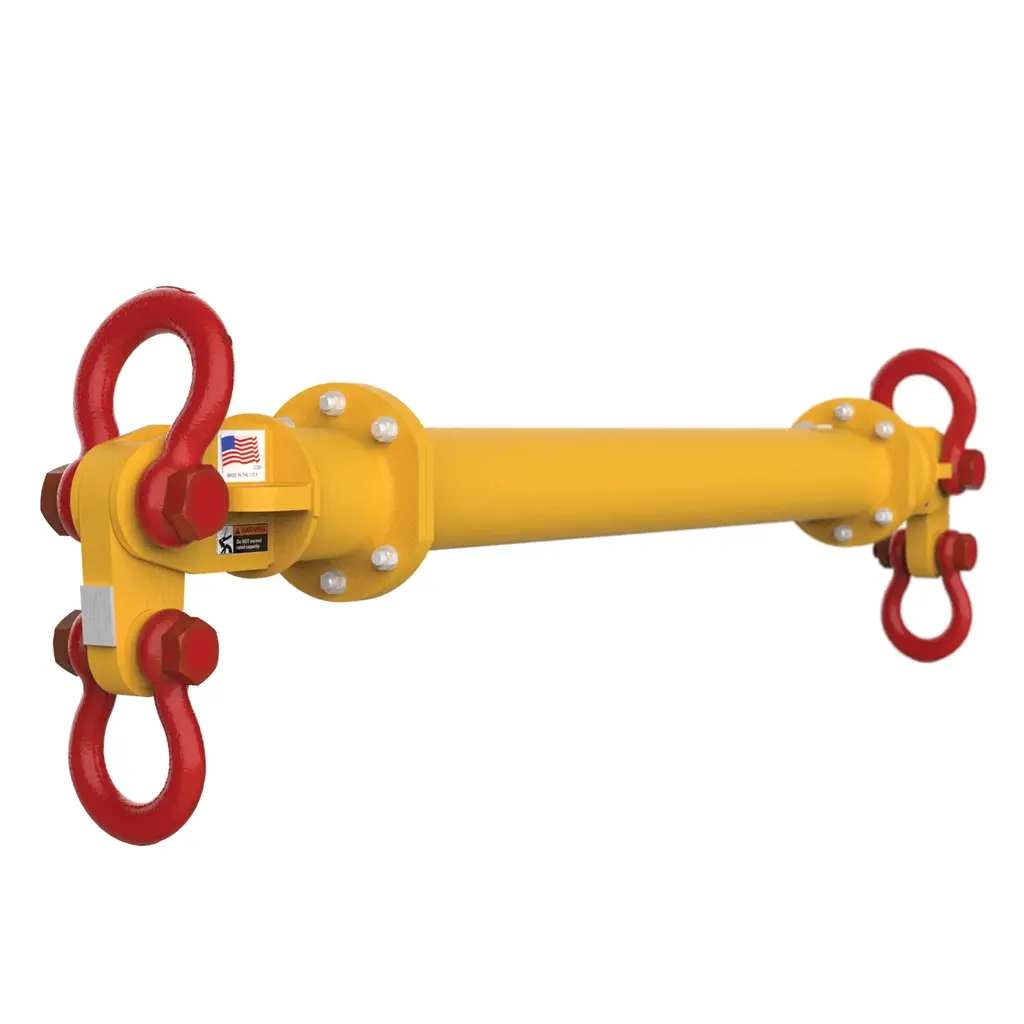

Model DM170 2-Point 170-Metric Ton Spreader Beam System
Model DM170 2-Point 170-Metric Ton Spreader Beam System
Product Description
Configure in spreads of 6' to 59'L. Order Spreader Sections, End Fittings, and Drop Links to build the beam you want. Or choose a Starter Set and save. One bolt kit included with each End Fitting and Spreader Section. Additional Bolt Kits can be ordered separately.
Handles loads up to 170 metric tons
DM170 assembly designed for a 120-ton, carbon, bolt-type top shackle and a 85-ton, carbon, bolt-type bottom shackle
Key Features & Benefits
Up to 170-Metric-Ton Capacity for demanding heavy-lift applications.
Configurable Spans from 6 ft. to 59 ft. to accommodate a wide range of load sizes.
Modular Design allows beam lengths and capacities to be adjusted using interchangeable components.
Easy Transportation and Storage with a maximum component length of only 20 ft.
Lightweight Alternative to large fixed spreader beam systems.
Bolt-Together Construction for simplified assembly and field reconfiguration.
Customizable Configurations using end fittings, drop links, and spreader sections.
ASME B30.20 and BTH-1 Compliant Design for confidence in critical lifts.
Ideal for Heavy Industrial Projects, including offshore, energy, infrastructure, and manufacturing applications.
Reduced Equipment Inventory Requirements by replacing multiple fixed-span beams with one modular system.
System Components & Weights
Model Number
Description
Weight (lbs.)
DM110/170-EF
End Fitting
440
DM110/170-DL
Drop Link
160
DM110-SS-20
20 ft. Spreader Section
1,425
DM110-SS-10
10 ft. Spreader Section
775
DM110-SS-8
8 ft. Spreader Section
645
DM110-SS-6
6 ft. Spreader Section
515
DM110-SS-4
4 ft. Spreader Section
380
DM110-SS-2
2 ft. Spreader Section
255
DM110-SS-1
1 ft. Spreader Section
185
Bolt Kit
Complete Bolt Kit Assembly
4.2 Each Kit
Component weights and configurations may vary based on the selected beam arrangement and lifting capacity.
Ideal Applications
Heavy equipment and machinery lifting
Offshore and marine operations
Structural steel erection
Modular process units and skids
Energy and power generation projects
Shipbuilding and fabrication facilities
Infrastructure construction
Industrial maintenance and shutdown projects
Crane rental and heavy lifting operations
DURA-MOD DM170 NOTES
Bolts, Nuts and Washers can be reused as long as Anti-Seize Thread coating is used
Slings and shackles are not provided as part of this assembly. Synthetic textile, chain and wire rope slings may be used. Consult your sling supplier as part of your lifting plan
Reference theDM110/170 Capacity Vs. Span Chartfor additional information.
Select Size
From $1,052.45
Original: $3,007.00
-65%
Model DM170 2-Point 170-Metric Ton Spreader Beam System—
$3,007.00
$1,052.45
Description
Product Description
Configure in spreads of 6' to 59'L. Order Spreader Sections, End Fittings, and Drop Links to build the beam you want. Or choose a Starter Set and save. One bolt kit included with each End Fitting and Spreader Section. Additional Bolt Kits can be ordered separately.
Handles loads up to 170 metric tons
DM170 assembly designed for a 120-ton, carbon, bolt-type top shackle and a 85-ton, carbon, bolt-type bottom shackle
Key Features & Benefits
Up to 170-Metric-Ton Capacity for demanding heavy-lift applications.
Configurable Spans from 6 ft. to 59 ft. to accommodate a wide range of load sizes.
Modular Design allows beam lengths and capacities to be adjusted using interchangeable components.
Easy Transportation and Storage with a maximum component length of only 20 ft.
Lightweight Alternative to large fixed spreader beam systems.
Bolt-Together Construction for simplified assembly and field reconfiguration.
Customizable Configurations using end fittings, drop links, and spreader sections.
ASME B30.20 and BTH-1 Compliant Design for confidence in critical lifts.
Ideal for Heavy Industrial Projects, including offshore, energy, infrastructure, and manufacturing applications.
Reduced Equipment Inventory Requirements by replacing multiple fixed-span beams with one modular system.
System Components & Weights
Model Number
Description
Weight (lbs.)
DM110/170-EF
End Fitting
440
DM110/170-DL
Drop Link
160
DM110-SS-20
20 ft. Spreader Section
1,425
DM110-SS-10
10 ft. Spreader Section
775
DM110-SS-8
8 ft. Spreader Section
645
DM110-SS-6
6 ft. Spreader Section
515
DM110-SS-4
4 ft. Spreader Section
380
DM110-SS-2
2 ft. Spreader Section
255
DM110-SS-1
1 ft. Spreader Section
185
Bolt Kit
Complete Bolt Kit Assembly
4.2 Each Kit
Component weights and configurations may vary based on the selected beam arrangement and lifting capacity.
Ideal Applications
Heavy equipment and machinery lifting
Offshore and marine operations
Structural steel erection
Modular process units and skids
Energy and power generation projects
Shipbuilding and fabrication facilities
Infrastructure construction
Industrial maintenance and shutdown projects
Crane rental and heavy lifting operations
DURA-MOD DM170 NOTES
Bolts, Nuts and Washers can be reused as long as Anti-Seize Thread coating is used
Slings and shackles are not provided as part of this assembly. Synthetic textile, chain and wire rope slings may be used. Consult your sling supplier as part of your lifting plan
Reference theDM110/170 Capacity Vs. Span Chartfor additional information.
