Caldwell DM30-6 6-Point Modular Box Spreader Beam
The Caldwell DURA-MOD® DM30-6 is a 30-metric ton modular 6-point box spreader beam system engineered for complex lifting applications requiring enhanced stability, flexibility, and load control.
Using modular spreader sections, T-sections, and corner fittings, operators can build custom lifting configurations tailored to specific load geometries and project requirements.Â
The knock-down modular design simplifies transportation and storage while providing exceptional strength and versatility for industrial lifting, construction, manufacturing, offshore, and heavy equipment applications.
Key Features
6-Point Box Configuration
- Six lifting points for superior load distribution
- Enhanced stability for large and irregular loads
- Customizable modular layouts
- Ideal for complex lifting operations
30-Metric Ton Capacity
- Heavy-duty lifting capability
- Designed for demanding industrial applications
- Suitable for large structural components
- Engineered for repetitive use in harsh environments
Modular Design
- Interchangeable spreader sections
- Configurable beam geometry
- Expandable system architecture
- Adaptable to changing lifting requirements
Knock-Down Construction
- Easier transportation and storage
- Reduced shipping costs
- Faster deployment on job sites
- Simplified inventory management
High Strength-to-Weight Ratio
- Optimized structural design
- Maximizes lifting performance
- Reduces overall system weight
- Improves handling efficiency
Compliance
The DM30-6 is designed to comply with:
- ASME B30.20
- ASME BTH-1
- Design Category B
- Service Class 0 (Class O)

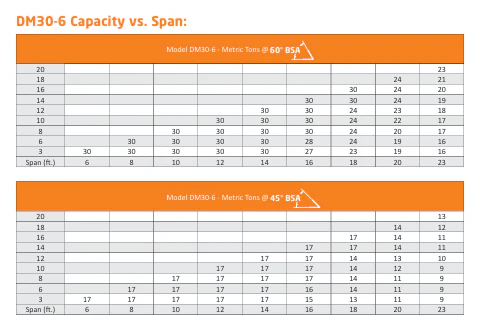

Technical Specifications
| Specification | Details |
|---|---|
| Model | DM30-6 |
| System Type | Modular 6-Point Box Spreader Beam |
| Capacity | 30 Metric Tons |
| Configuration | 6-Point Box Spreader System |
| Design | DURA-MOD® Modular Construction |
| Compliance | ASME B30.20 / BTH-1 |
| Design Category | B |
| Service Class | 0 |
| Transport Design | Knock-Down Modular System |
| Rigging Compatibility | Chain, Wire Rope, Synthetic Slings |

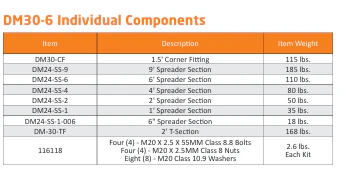

Standard Assembly Components
DM30-CF Corner Fitting
| Component | Weight |
|---|---|
| DM30-CF Corner Fitting | 115 lbs. |
DM30-TF T-Section
| Component | Weight |
|---|---|
| DM30-TF 2' T-Section | 168 lbs. |
Spreader Sections
| Model Number | Description | Weight |
|---|---|---|
| DM24-SS-1-006 | 6" Spreader Section | 18 lbs. |
| DM24-SS-1 | 1' Spreader Section | 35 lbs. |
| DM24-SS-2 | 2' Spreader Section | 50 lbs. |
| DM24-SS-4 | 4' Spreader Section | 80 lbs. |
| DM24-SS-6 | 6' Spreader Section | 110 lbs. |
| DM24-SS-9 | 9' Spreader Section | 185 lbs. |
Corner fittings and spreader sections include one bolt kit, while T-sections include two bolt kits.
Rigging Requirements
The DM30-6 assembly is designed around:
| Component | Rating |
|---|---|
| Top Shackle | 17-Ton Carbon Bolt-Type |
| Bottom Shackle | 12-Ton Carbon Bolt-Type |
Slings and shackles are not included and must be selected as part of the lifting plan. Synthetic slings, chain slings, and wire rope slings may be utilized.
Applications
Industrial Manufacturing
- Machinery lifting
- Fabricated assemblies
- Production equipment
- Structural components
Construction
- Steel erection
- Modular building systems
- Infrastructure projects
- Heavy equipment installation
Offshore & Marine
- Skid modules
- Fabricated structures
- Equipment packages
- Marine construction projects
Energy Sector
- Power generation equipment
- Industrial plant maintenance
- Utility infrastructure
- Renewable energy components
Benefits
Improved Load Control
The 6-point configuration distributes lifting forces across multiple pick points, improving load balance and stability.
Customizable Configurations
Modular components allow operators to build lifting systems tailored to individual projects and load requirements.
Easy Transportation
The knock-down design allows the system to be transported and stored more efficiently than large welded spreader beam assemblies.
Expandable System
Additional spreader sections and components can be added to expand lifting capabilities as operational needs evolve.
Industries Served
- Manufacturing
- Construction
- Oil & Gas
- Offshore Operations
- Renewable Energy
- Utilities
- Heavy Equipment
- Industrial Maintenance
- Marine Fabrication
- Infrastructure Projects
SEO Keywords
- Caldwell DM30-6
- DURA-MOD DM30-6
- 6 point spreader beam
- modular box spreader beam
- 30 metric ton spreader beam
- Caldwell lifting beam
- modular lifting system
- industrial spreader beam
- heavy lift spreader beam
- ASME compliant spreader beam
- construction lifting beam
- offshore lifting equipment
- material handling beam
