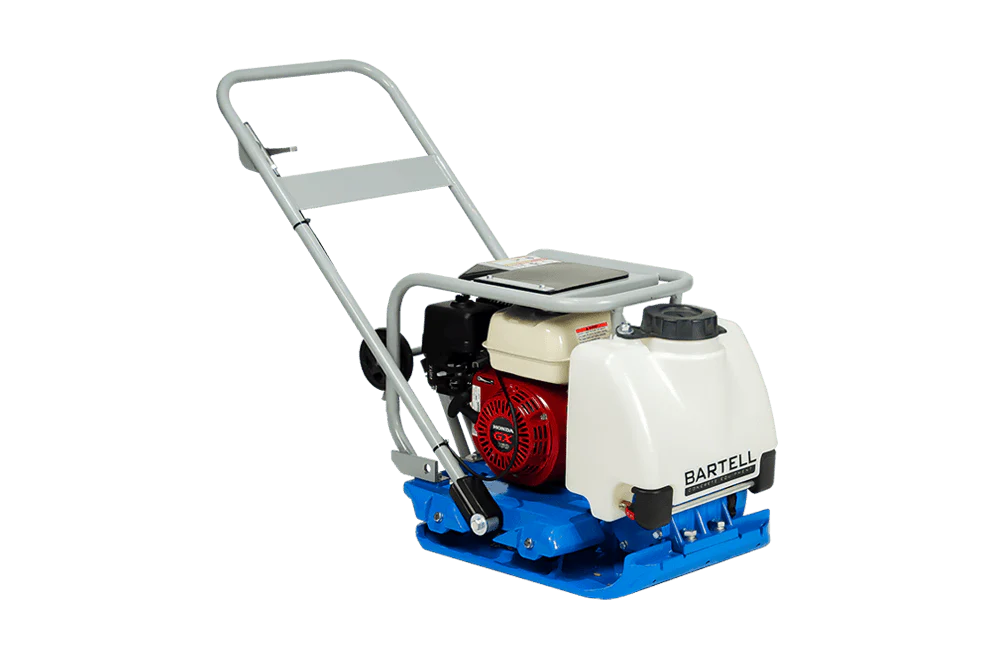

BCF 1570 Plate Compactor

Bartell forward plates are innovative, hard-hitting, and low maintenance.

The BCF1570 is our most popular forward compactor and is perfect for a wide range of compaction applications. The built-in water tank allows the compactor to be used on asphalt, and also allows for better dust control on dirt/soil.

• Robust throttle control mounted on handle for safe and convenient operator control
• Anti-vibration handle
• Folding handle for compact storage
• Retractable wheels flip down for built-in mobility
• Integrated lifting bale for safe loading and unloading
• Straight-edge plate design leaves no unreachable margins
• Sealed housing keeps debris from interfering with the belt
• Built-in removable water tank
• Optional urethane mat protects pavers and slabs from scratches and breakage

Engine	Honda GX160, 4.8hp (3.6kW)
Compaction Force	3461 lbf, 15 kN,1570 kgf
Max Travel Speed	82'/min (25m/min)
Length	44" (1118mm)
Width	20" (508mm)
Height	33" (838mm)
Weight	217 lbs (98kg)
Plate Size	20" x 21" (500mm x525mm)
