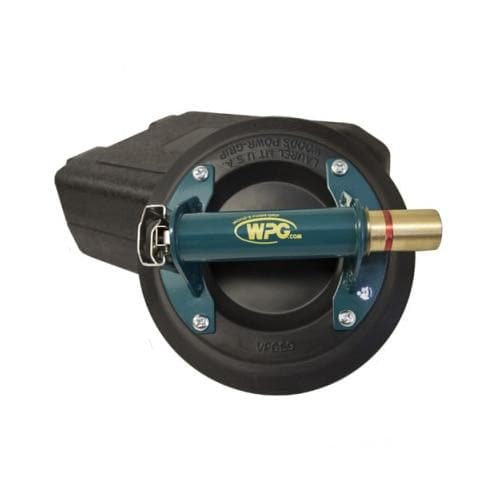

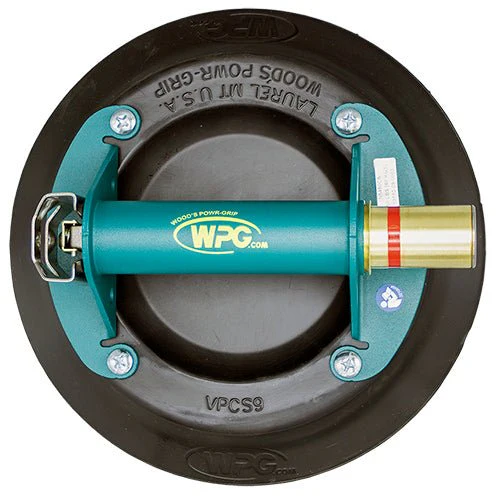

9" Hand Cup for Flat or Curved Surfaces
This metal-handle cup features a flexible vacuum pad edge for fast attachment to flat or curved surfaces with a lifting capacity of 150 lbs [68 kg]. Not for use with thin, fragile materials.
Features:
- Fast attach and release
- Red-line indicator warns user of any significant vacuum loss

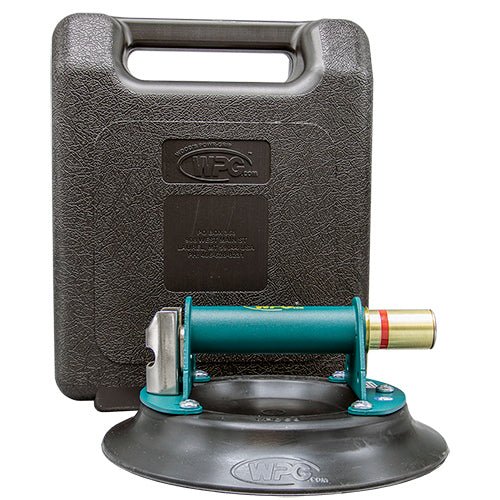

- Supplied with protective carrying case
| Model | N5450CS |
|---|---|
| SKU | 91720 |
| Load Capacity | 150 lbs [68 kg] |
| Surface Texture | Smooth / Slight Texture |
| Material Porosity | Nonporous |
| Allowable Surface Curvature | Flat to Curved |
| Minimum Radius for Curved Loads | 21-1/2" [545 mm] |
| Minimum Material Thickness | 1/8" [3.18 mm] |
| Maximum Elevation | 5000 ft [1500 m] |
| Material and Ambient Temperature-Range | 0°F [-18° C] up to 120° F [49° C] |
| Pad Diameter | 9" [23 cm], Concave |
| Pad Model | VPCS9 |
| Rubber Type | Standard |
| Handle Type | Metal |
| Plunger Type | Metal |
