8230HK30 Wheeled Gas Air Compressors
Wheeled Gas Air Compressors

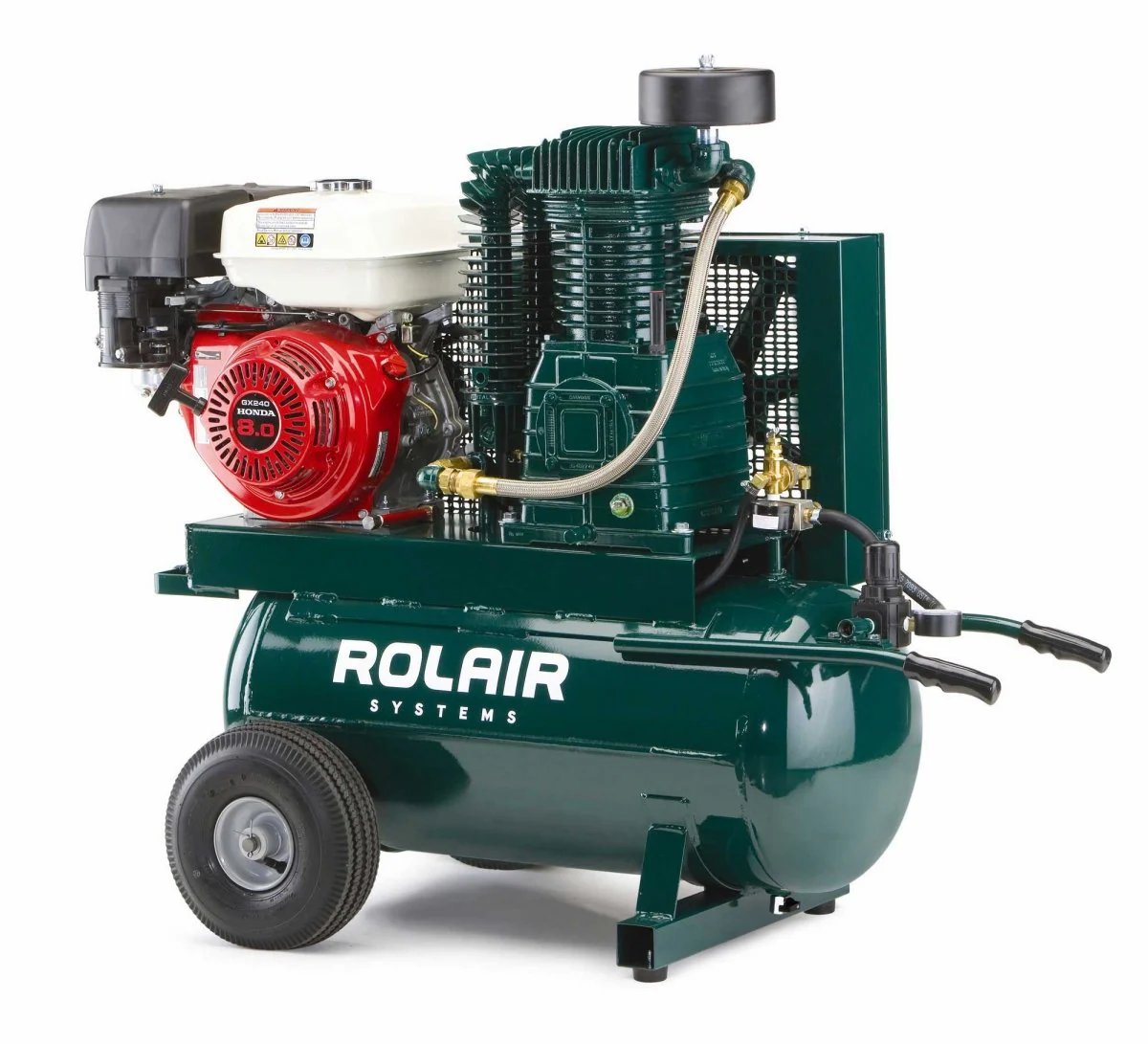

Model 8230HK30 steps it up a notch with the addition of a 20 Gallon ASME Tank providing more reserve air. It produces 20.1 CFM at 90 PSI and utilizes the popular 270 cc (GX270) Honda engine with automatic idle-down, for increased fuel efficiency, and an atmospheric unloading system to prevent oil consumption.
Optional Equipment: Filter-Regulator-Lubricator Sets, 20 Gallon ASME Tank.
SPECIFICATIONS
| HORSE POWER | 270 cc (9 HP) |
| CFM DISPLACED | 24.4 CFM |
| CFM DELIVERED | 20.1 CFM @ 90 PSI |
| OVERLOAD PROTECTION | No |
| LUBRICATION TYPE | Splash Lubrication |
| PUMP OIL CAPACITY | 47 oz. |
| REED VALVE SYSTEM | Yes (Standard) |
| NUMBER OF CYLINDERS | 2 |
| TANK CAPACITY | 20 Gallons |
| L X W X H | 49"x23"x40" |
| DECIBEL RATING | Unavailable |
| COUNTRY OF ORIGIN | Compressor Origin.pdf |
| SHIPPING WEIGHT | 320 lb. |
| SHIPPING DIMENSIONS (L X W X H) | 51" x 25" x 50" |
DOCUMENTS
8230HK30 Schematic
8230HK30 Owner's Manual
Original: $2,835.00
-65%$2,835.00
$992.25
Description
Wheeled Gas Air Compressors
Model 8230HK30 steps it up a notch with the addition of a 20 Gallon ASME Tank providing more reserve air. It produces 20.1 CFM at 90 PSI and utilizes the popular 270 cc (GX270) Honda engine with automatic idle-down, for increased fuel efficiency, and an atmospheric unloading system to prevent oil consumption.
Optional Equipment: Filter-Regulator-Lubricator Sets, 20 Gallon ASME Tank.
SPECIFICATIONS
| HORSE POWER | 270 cc (9 HP) |
| CFM DISPLACED | 24.4 CFM |
| CFM DELIVERED | 20.1 CFM @ 90 PSI |
| OVERLOAD PROTECTION | No |
| LUBRICATION TYPE | Splash Lubrication |
| PUMP OIL CAPACITY | 47 oz. |
| REED VALVE SYSTEM | Yes (Standard) |
| NUMBER OF CYLINDERS | 2 |
| TANK CAPACITY | 20 Gallons |
| L X W X H | 49"x23"x40" |
| DECIBEL RATING | Unavailable |
| COUNTRY OF ORIGIN | Compressor Origin.pdf |
| SHIPPING WEIGHT | 320 lb. |
| SHIPPING DIMENSIONS (L X W X H) | 51" x 25" x 50" |
