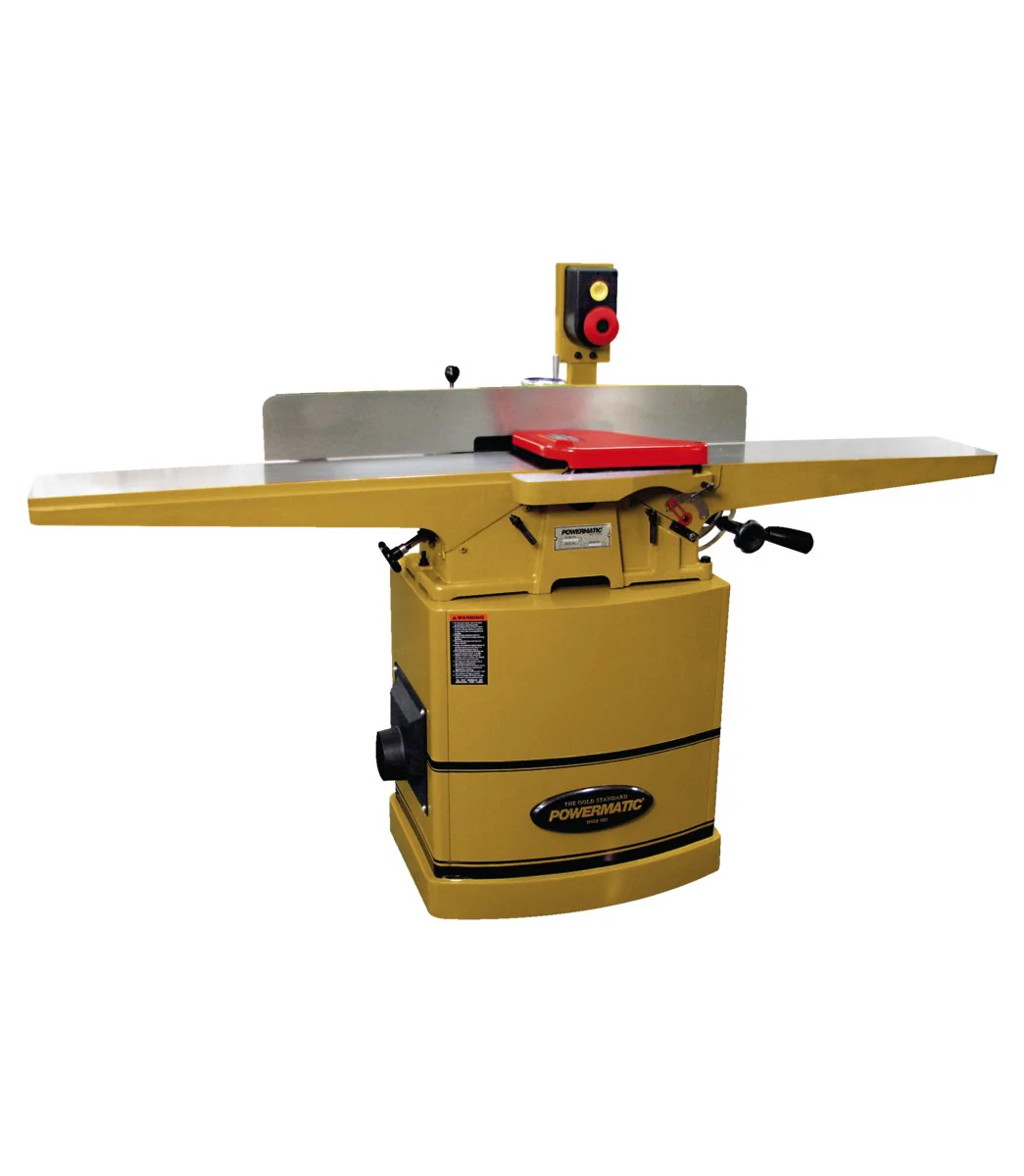

60HH 8" Jointer, 2HP 1PH 230V, Helical Head
This 8" Jointer meets the demand for accuracy while combining unique, user-friendly functions.
The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73” long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three high speed steel knife cutterhead, or a helical cutterhead with 54 four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.
Features
- Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth
- Extra long tables are mounted on dovetailed ways for extended workpiece support
- Handwheel operated worm gear system for smooth fence tilting
- High mount switch for operator convenience
- Magnetic push blocks can be stored on the machine within constant reach
- Non-mar fence insert protects table surface

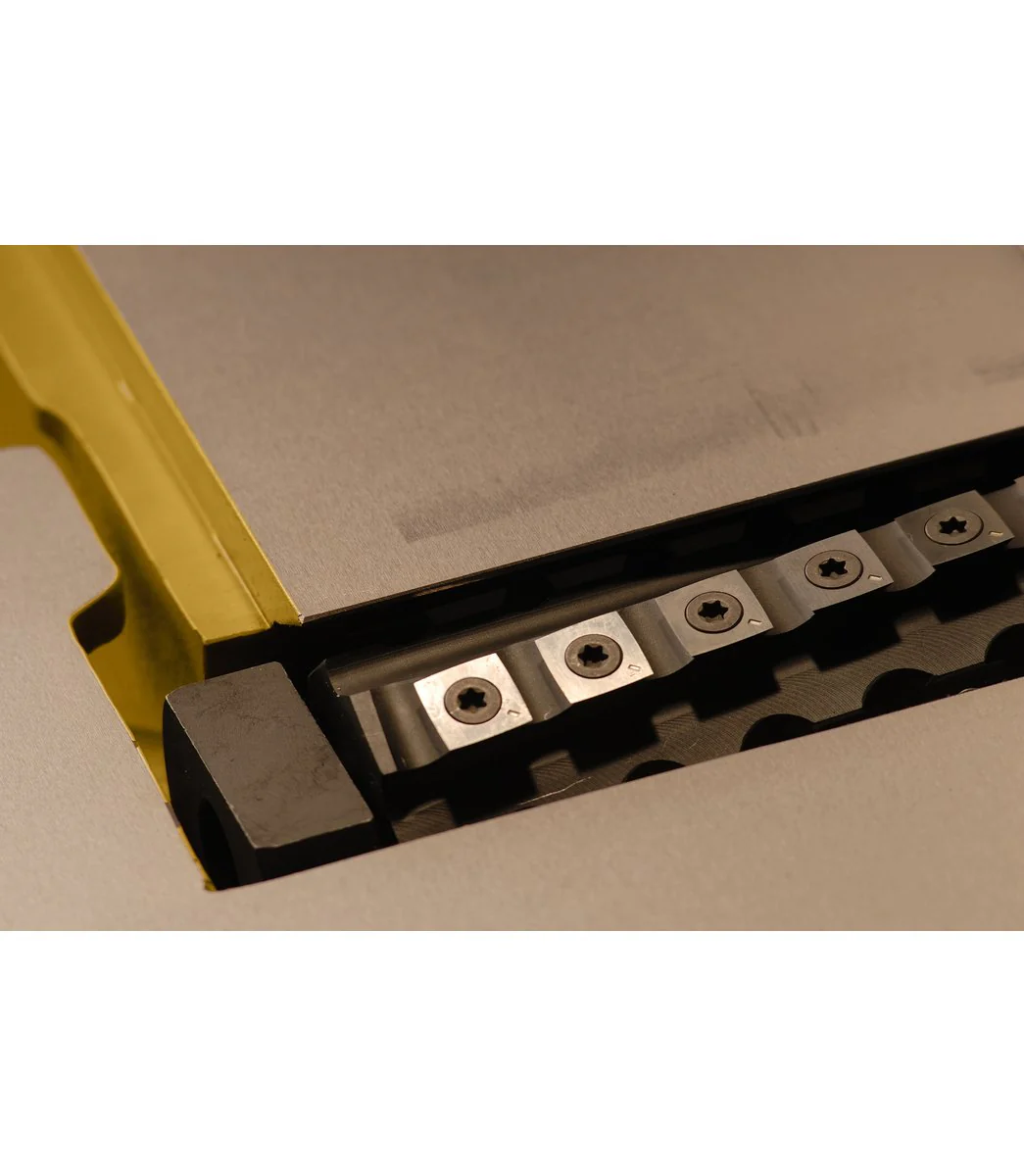

- The helical cutterhead with 54 four sided carbide inserts provides smoother, quieter cutting and a superior finish
Specifications
| Stock Number | 1610086K |
|---|---|
| Cuts Per Minute | Not Applicable |
| Cutterhead Diameter (In.) | 3 |
| Cutterhead Speed (RPM) | 7000.0000 |
| Cutting Capacity (W x D) (In.) | 8 x 1/2 |
| Dust Collection Minimum CFM Required (CFM) | 450 |
| Dust Port Outside Diameter (In.) | 4 |
| Infeed Table Length (In.) | 35-1/4 |
| Motor Amps | 9 |
| Motor Phase | 1 |
| Motor Power (HP) | 2 |
| Motor Voltage (V.) | 230 |
| Number of Knives | 54 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 20 |
| Type of Cutterhead | HELICAL |
Original: $3,519.00
-65%$3,519.00
$1,231.65
Description
This 8" Jointer meets the demand for accuracy while combining unique, user-friendly functions.
The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73” long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three high speed steel knife cutterhead, or a helical cutterhead with 54 four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.
Features
- Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth
- Extra long tables are mounted on dovetailed ways for extended workpiece support
- Handwheel operated worm gear system for smooth fence tilting
- High mount switch for operator convenience
- Magnetic push blocks can be stored on the machine within constant reach
- Non-mar fence insert protects table surface
- The helical cutterhead with 54 four sided carbide inserts provides smoother, quieter cutting and a superior finish
Specifications
| Stock Number | 1610086K |
|---|---|
| Cuts Per Minute | Not Applicable |
| Cutterhead Diameter (In.) | 3 |
| Cutterhead Speed (RPM) | 7000.0000 |
| Cutting Capacity (W x D) (In.) | 8 x 1/2 |
| Dust Collection Minimum CFM Required (CFM) | 450 |
| Dust Port Outside Diameter (In.) | 4 |
| Infeed Table Length (In.) | 35-1/4 |
| Motor Amps | 9 |
| Motor Phase | 1 |
| Motor Power (HP) | 2 |
| Motor Voltage (V.) | 230 |
| Number of Knives | 54 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 20 |
| Type of Cutterhead | HELICAL |
