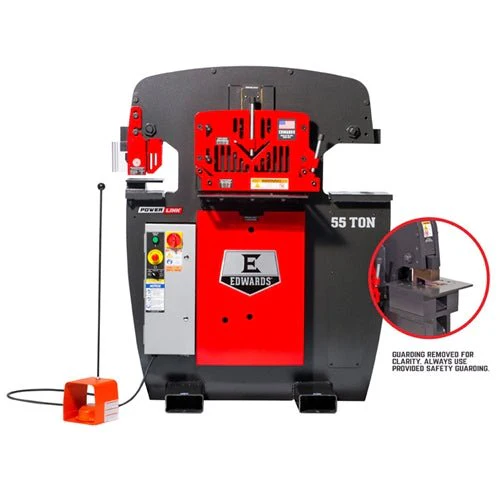

55 Ton Ironworker with Coper Notcher

55 Ton Ironworker  with Coper Notcher Our Best Seller  is well suited to fit the needs of any fab shop, large or small

• Four Available Workstations
  • Standard (3) - Punch, Flat Bar Shear & Angle Shear
  • Open (1) - Factory installed Coper Notcher
• Includes a factory-installed Coper Notcher which removes anything from a small nibble to a large notch out of Flat Bar or Angle Iron
• 12 interchangeable Attachments available
• 17 optional Accessories available
• ANSI B11.5-1988(02) Compliant Guarding
• ETL Certified Controls
• Integrated Lock-out/Tag-out system with E-Stop for added safety

The Edwards 55 Ton Ironworker is well suited to fit the needs of any fab shop, large or small. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a universal open tooling station designed to accept optional

PUNCH

• Rating 55 Tons

• Max. Capacity 1-1/16" Dia. in 5/8" A36

• (65,000 PSI Tensile)

• Stroke 1-1/4"

• Throat Depth 7-1/2"

• Open Height 8-1/8"

• Shut Height 6-7/8"

• Work Height 36-9/16"


FLAT BAR SHEAR

• Max. Capacity 3/8" x 14"

• 1/2" x 12"

• 3/4" x 4"

• Max. Round 7/8"

• Max. Square 7/8"

• Work Height 34-1/2"


ANGLE SHEAR

• Max. Capacity 3" x 3" x 3/8"

• 4" x 4" x 1/4"

• Work Height 39-7/8"


COPER NOTCHER

• Max. Capacity 2-1/2" x 4" x 5/16"

• Work Height 39-1/2"


OPEN STATION

• Throat Depth 11-3/16"

• Open Height 8-1/8"

• Shut Height 6-7/8"

• Stroke 1-1/4"

• Work Height 34-1/2"


GENERAL SPECIFICATIONS

• Standard Motor 5 HP 3~ 208 V or 230 V

• 1725 RPM 14 A

• Optional Motors 5 HP 3~ 460 V

• 1725 RPM 7 A

•

• 5 HP 3~ 575 V

• 1725 RPM 6 A

•

• 5 HP 1~ 230 V

• 1725 RPM 23 A

• Hydraulic Pump 3-1/2 GPM - 1 Stage

• Valve Pressure 2500 PSI

• Reservoir 7 Gallons

• Cylinder 2-1/2" Ram


DIMENSIONS

• Height 55-1/4"

• Width 44-3/8"

• Depth 36-1/8"

• Shipping Weight 2480 lb
