55 Ton Ironworker

55 Ton Ironworker

The Edwards 55 Ton Ironworker is well suited to fit the needs of any fab shop, large or small

Build to order: approx. 2-3 week lead time
  • Four Available Workstations
  • Universal Open Tooling Station
  • Electric Stroke Control
  • ANSI B11.5-1988R(02) Compliant
  • ETL/UL Approved Controls

The Edwards 55 Ton Ironworker is well suited to fit the needs of any fab shop, large or small. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a universal open tooling station designed to accept optional Tooling Accessories.

The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.

Sell Sheet

PUNCH

  • Rating 55 Tons
  • Max. Capacity 1-1/16" Dia. in 5/8" A36
  • (65,000 PSI Tensile)
  • Stroke 1-1/4"
  • Throat Depth 7-1/2"
  • Open Height 8-1/8"
  • Shut Height 6-7/8"
  • Work Height 36-9/16"
DIMENSIONS
  • Height - 55-1/4"
  • Width - 44-3/8"
  • Depth - 36-1/8"
  • Shipping Weight - 2480 lb

FLAT BAR SHEAR

  • Max. Capacity 3/8" x 14"
  • 1/2" x 12"
  • 3/4" x 4"
  • Max. Round 7/8"
  • Max. Square 7/8"
  • Work Height 34-1/2"

ANGLE SHEAR

  • Max. Capacity 3" x 3" x 3/8"
  • 4" x 4" x 1/4"
  • Work Height 39-7/8"
OPTIONAL COPER NOTCHER
  • Max. Capacity
  • 2-1/2" x 4" x 5/16"
  • Work Height
  • 39-1/2"

OPEN STATION

  • Throat Depth 11-3/16"
  • Open Height 8-1/8"
  • Shut Height 6-7/8"
  • Stroke 1-1/4"
  • Work Height 34-1/2"

GENERAL SPECIFICATIONS

  • Standard Motor 5 HP 3~ 208 V or 230 V
  • 1725 RPM 14 A
  • Optional Motors 5 HP 3~ 460 V
  • 1725 RPM 7 A
  • 5 HP 3~ 575 V
  • 1725 RPM 6 A
  • 5 HP 1~ 230 V
  • 1725 RPM 23 A
  • Hydraulic Pump 3-1/2 GPM - 1 Stage
  • Valve Pressure 2500 PSI
  • Reservoir 7 Gallons
  • Cylinder 2-1/2" Ram
Select Options
From $6,247.15

Original: $17,849.00

-65%
55 Ton Ironworker—

$17,849.00

$6,247.15
Product image 1
Product image 2

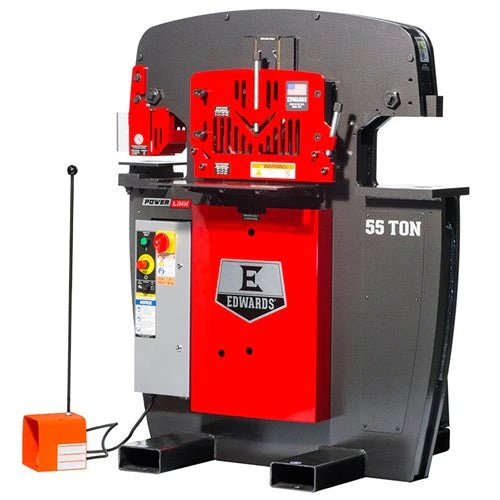

Product image 3

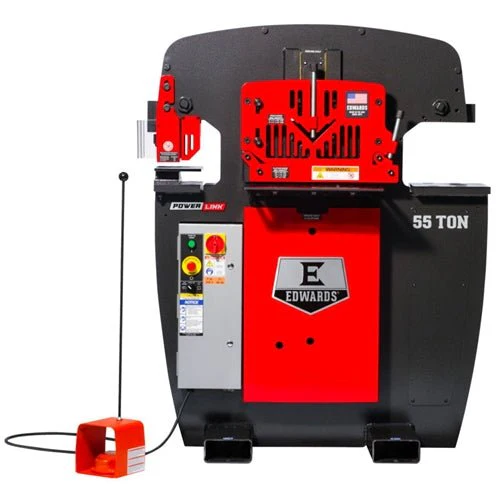

Product image 4
