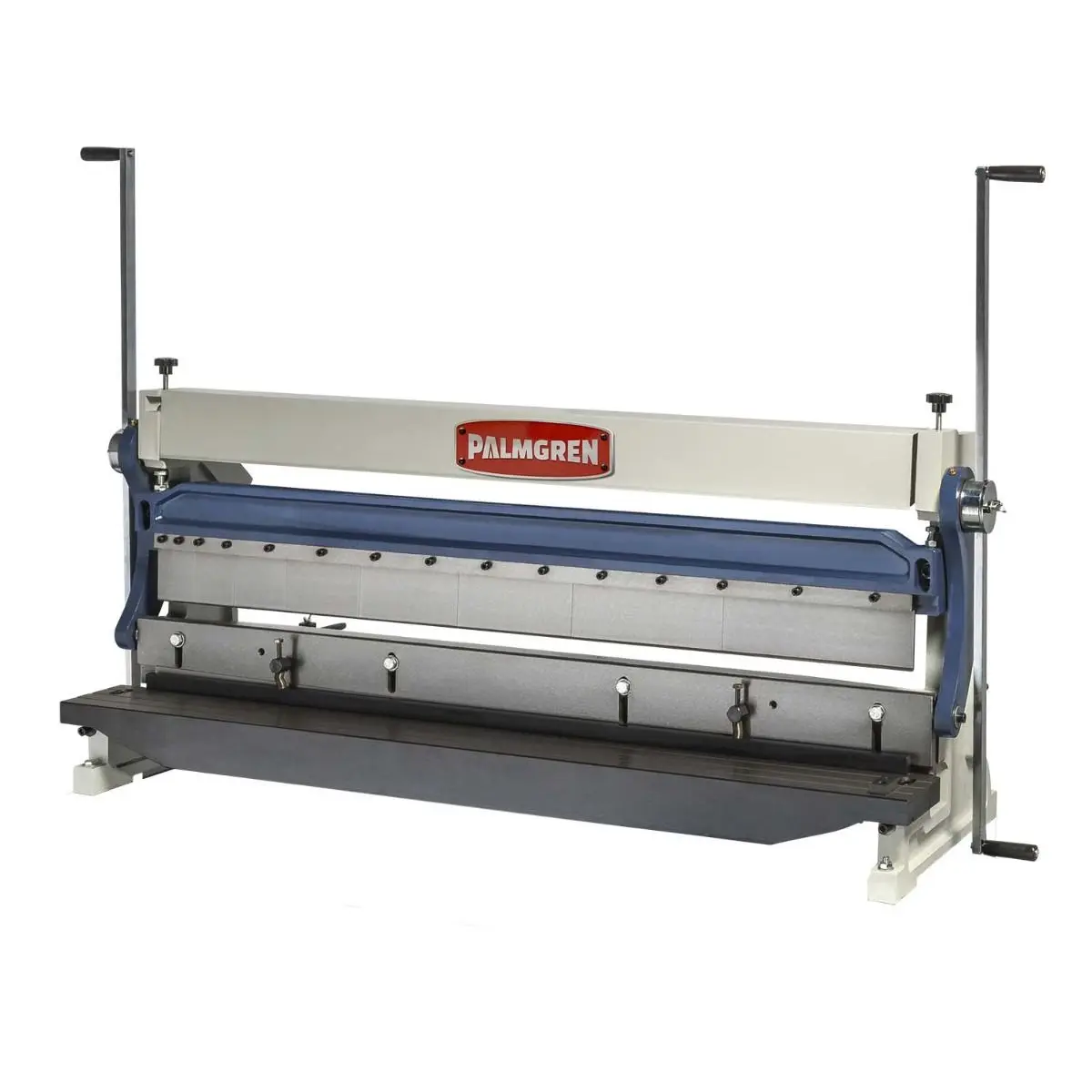

40" 3-in-1 Shear, Brake & Roll Machine
Palmgren’s new line of Shear, Brake & Roll 3-in-1 machines are the ultimate in shop floor space savings.
Available in 30-, 40- and 52-in. widths, these machines can roll, bend and cut sheet steel up to 16-gauge thick. The perfect tool for small shops and one-off projects.
- Rolls also include grooves for rolling wire
- Heavy-duty cast-iron frame and bed construction
- Spring loaded sheet hold down
- Hinged slip roll guard covers the rollers for increased safety when not in use
- Rolling Capacity Mild Steel: 20 Ga
- Rolling Capacity Stainless Steel: 24 Ga
- Sheer Capacity Mild Steel: 20 Ga
- Sheet Capacity Stainless Steel: 240 Ga
- Minimum Rolling Diameter: 1-5/8"
| Bed Width | 40" |
| Machine Weight | 440 lbs |
| Overall Dimensions (LxWxH) | 50.4" x 17" x 56.4" |
| Warranty | 3 years |
| UPC | 726896296227 |
| Unit of Measure | EA |
| Product Height (in) | 53.2 |
| Product Length (in) | 27.6 |
| Product Width (in) | 18.1 |
| Product Weight (lbs) | 440 |
Product Manual
Select Options
From $131.25
Original: $375.00
-65%40" 3-in-1 Shear, Brake & Roll Machine—
$375.00
$131.25
Description
Palmgren’s new line of Shear, Brake & Roll 3-in-1 machines are the ultimate in shop floor space savings.
Available in 30-, 40- and 52-in. widths, these machines can roll, bend and cut sheet steel up to 16-gauge thick. The perfect tool for small shops and one-off projects.
- Rolls also include grooves for rolling wire
- Heavy-duty cast-iron frame and bed construction
- Spring loaded sheet hold down
- Hinged slip roll guard covers the rollers for increased safety when not in use
- Rolling Capacity Mild Steel: 20 Ga
- Rolling Capacity Stainless Steel: 24 Ga
- Sheer Capacity Mild Steel: 20 Ga
- Sheet Capacity Stainless Steel: 240 Ga
- Minimum Rolling Diameter: 1-5/8"
| Bed Width | 40" |
| Machine Weight | 440 lbs |
| Overall Dimensions (LxWxH) | 50.4" x 17" x 56.4" |
| Warranty | 3 years |
| UPC | 726896296227 |
| Unit of Measure | EA |
| Product Height (in) | 53.2 |
| Product Length (in) | 27.6 |
| Product Width (in) | 18.1 |
| Product Weight (lbs) | 440 |
