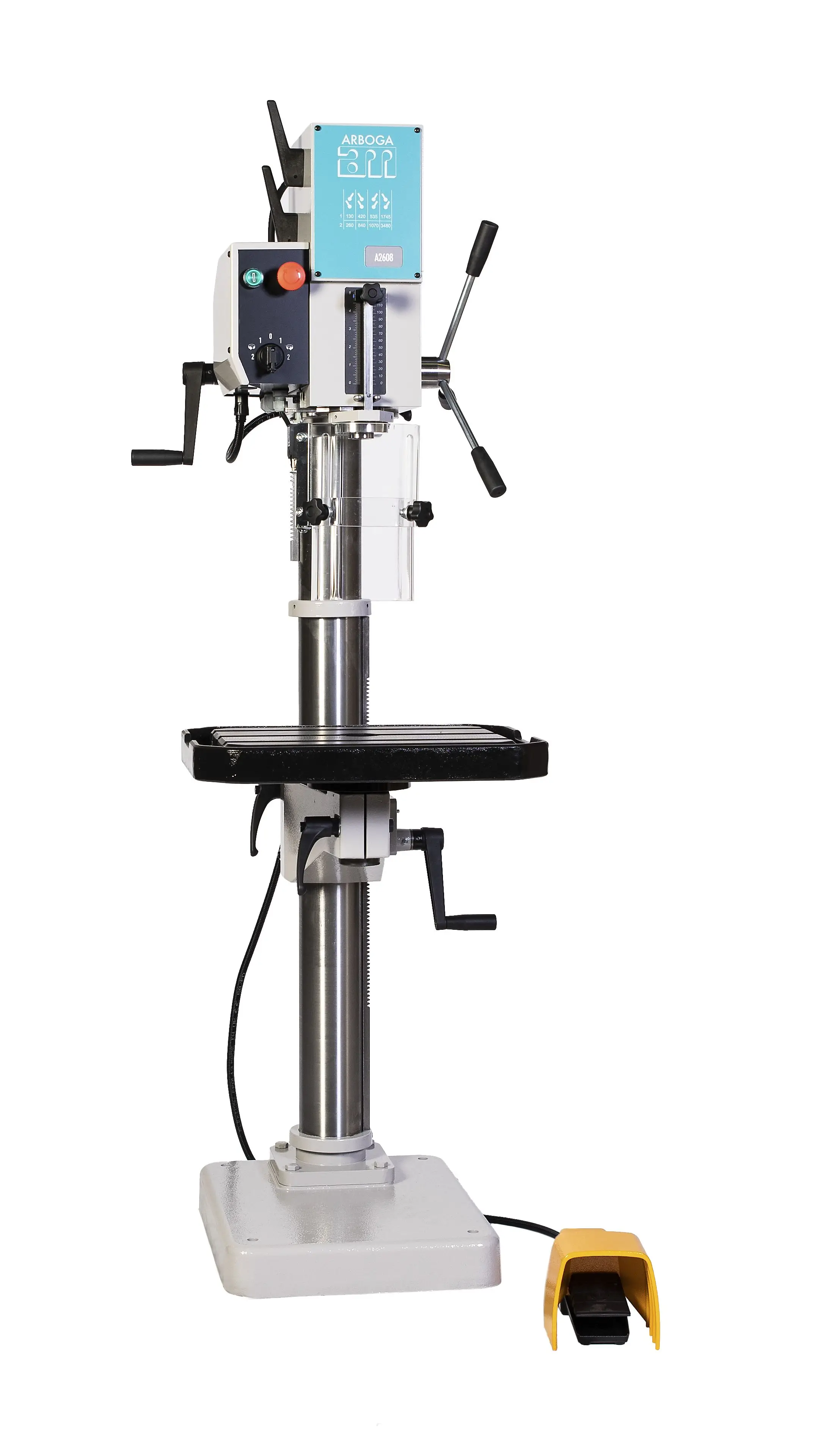

20" Gear Head Drill Press with Foot Reversing Switch (230V 3 Phase)
This versatile all gear drive drill press is the right choice for precision drilling applications and continuous industrial use.
The gear drive transmission delivers full power at any speed, driving the cutting tools at nearly 100% of the available motor horsepower. Helical ground gears ensure positive, quite operation and make speed changes fast and easy. The wide speed range makes this the ideal drill for drilling large to small diameter holes fast and easy.
- Inch/Metric depth stop
- 2 speed manual forward & reverse switch on 3 PH models
- 2 speed manual forward switch on 1 PH model
- Foot reversing switch
- Head & table rotates 360 degrees around the column
- Machined & t-slotted table
- Quick release drill ejector
- Chuck guard
- No-volt release prevents spindle start up when power returns after shutdown
- 4" Palmgren drill press vise
- Drill chuck & arbor
- Made in Sweden
| Capacity Cast Iron | 1-1/8" |
| Capacity Steel | 1" |
| Column Diameter | 4" |
| Motor HP | 1-1/2 |
| Number of Spindle Speeds | 8 |
| Number of Table Slots | 3 |
| Overall Dimensions (L x W x H) | 15-3/4" x 20" x 82" |
| Phase | Three |
| Power Feed | No |
| Spindle Taper | MT3 |
| Spindle Travel | 5-1/8" |
| Swing | 20" |
| Table Dimensions | 20" x 15-3/4" |
| Table Slot Size | 1" |
| Voltage | 230 |
| Warranty | 5 Year |
| UPC | 726896802435 |
| Product Weight (lbs) | 505 |
Manual
$7,632.00
20" Gear Head Drill Press with Foot Reversing Switch (230V 3 Phase)—
$7,632.00
Description
This versatile all gear drive drill press is the right choice for precision drilling applications and continuous industrial use.
The gear drive transmission delivers full power at any speed, driving the cutting tools at nearly 100% of the available motor horsepower. Helical ground gears ensure positive, quite operation and make speed changes fast and easy. The wide speed range makes this the ideal drill for drilling large to small diameter holes fast and easy.
- Inch/Metric depth stop
- 2 speed manual forward & reverse switch on 3 PH models
- 2 speed manual forward switch on 1 PH model
- Foot reversing switch
- Head & table rotates 360 degrees around the column
- Machined & t-slotted table
- Quick release drill ejector
- Chuck guard
- No-volt release prevents spindle start up when power returns after shutdown
- 4" Palmgren drill press vise
- Drill chuck & arbor
- Made in Sweden
| Capacity Cast Iron | 1-1/8" |
| Capacity Steel | 1" |
| Column Diameter | 4" |
| Motor HP | 1-1/2 |
| Number of Spindle Speeds | 8 |
| Number of Table Slots | 3 |
| Overall Dimensions (L x W x H) | 15-3/4" x 20" x 82" |
| Phase | Three |
| Power Feed | No |
| Spindle Taper | MT3 |
| Spindle Travel | 5-1/8" |
| Swing | 20" |
| Table Dimensions | 20" x 15-3/4" |
| Table Slot Size | 1" |
| Voltage | 230 |
| Warranty | 5 Year |
| UPC | 726896802435 |
| Product Weight (lbs) | 505 |
