2-POINT 34-METRIC TON SPREADER BEAM SYSTEM
The Caldwell Model DM34 Dura-Mod Modular Spreader Beam System is engineered for heavy-duty lifting applications that require flexibility, portability, and configurable beam spans. Its modular design allows users to assemble beam lengths from 3 to 32 feet using interchangeable spreader sections, end fittings, drop links, and bolt kits.
Designed to handle loads up to 34 metric tons, the DM34 system is ideal for manufacturing facilities, steel fabrication shops, construction projects, shipyards, and industrial maintenance. The knock-down design makes transportation and storage easier while allowing the beam to be configured for a wide range of lifting applications. Capacity is determined by beam span and sling angle using Caldwell's capacity charts.
Key Features
- Modular two-point spreader beam system
- Configurable beam spans from 3 to 32 feet
- Handles loads up to 34 metric tons
- Knock-down design for easy transportation
- Order individual components or starter set
- One bolt kit included with each end fitting and spreader section
- Reusable hardware when anti-seize thread coating is applied
- Compatible with synthetic, wire rope, and chain slings
- Designed for 25-ton top shackles and 17-ton bottom shackles
- Capacity determined by beam span and sling angle
- Meets ASME B30.20 and BTH-1 Design Category B Class 0 requirements
Applications
- Steel fabrication
- Manufacturing facilities
- Construction projects
- Shipyards
- Industrial maintenance
- Heavy equipment installation
- Material handling
- Utility contractors
- Infrastructure projects
- Plant maintenance
Specifications
- Product Type: Modular spreader beam system
- Model: DM34
- Configuration: Two-point modular spreader beam
- Maximum Capacity: 34 metric tons
- Beam Span: 3 to 32 feet
- Modular Components: End fittings, drop links, spreader sections, bolt kits
- Top Shackle: 25-ton carbon bolt-type
- Bottom Shackle: 17-ton carbon bolt-type
- Slings: Sold separately
- Compliance: ASME B30.20 and BTH-1 Design Category B Class 0
Component Specifications
| Model Number | Description | Weight (lbs.) |
|---|---|---|

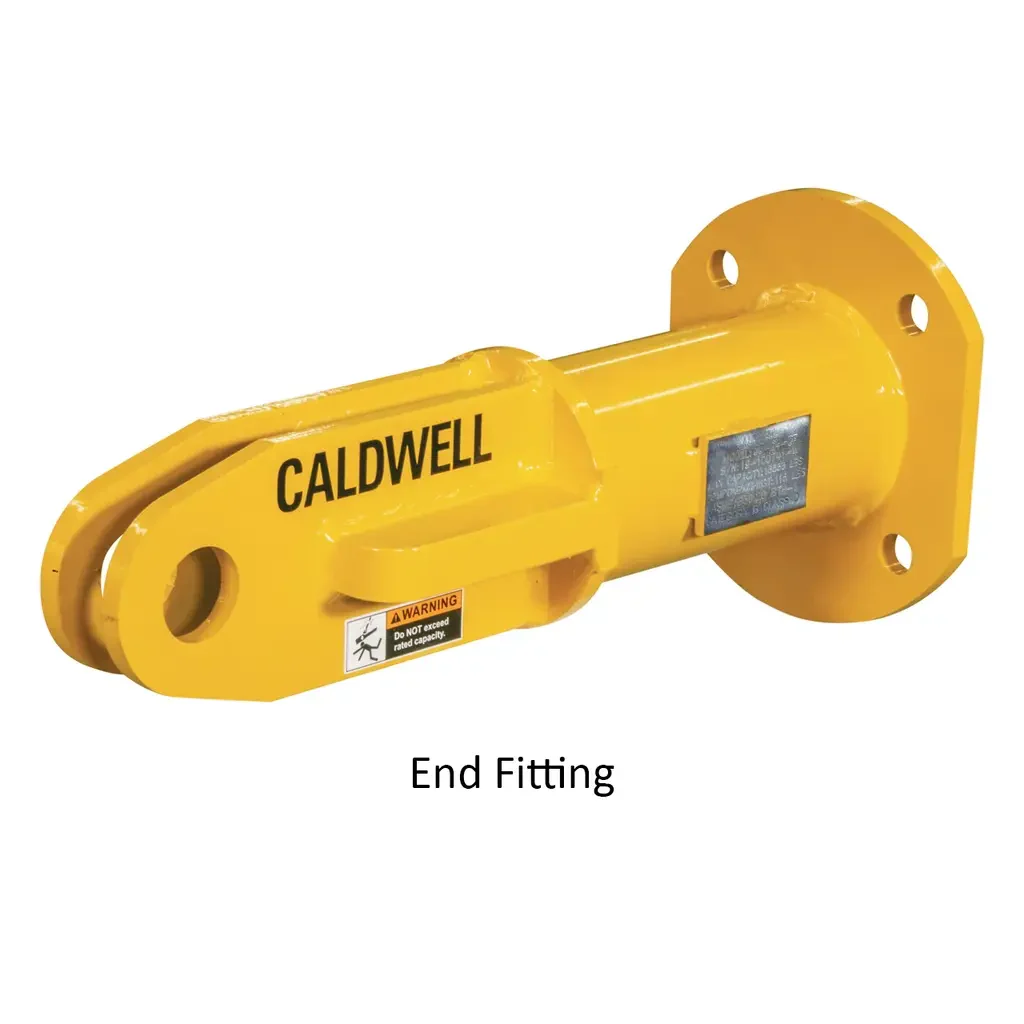

| DM34-EF | End Fitting | 60 |

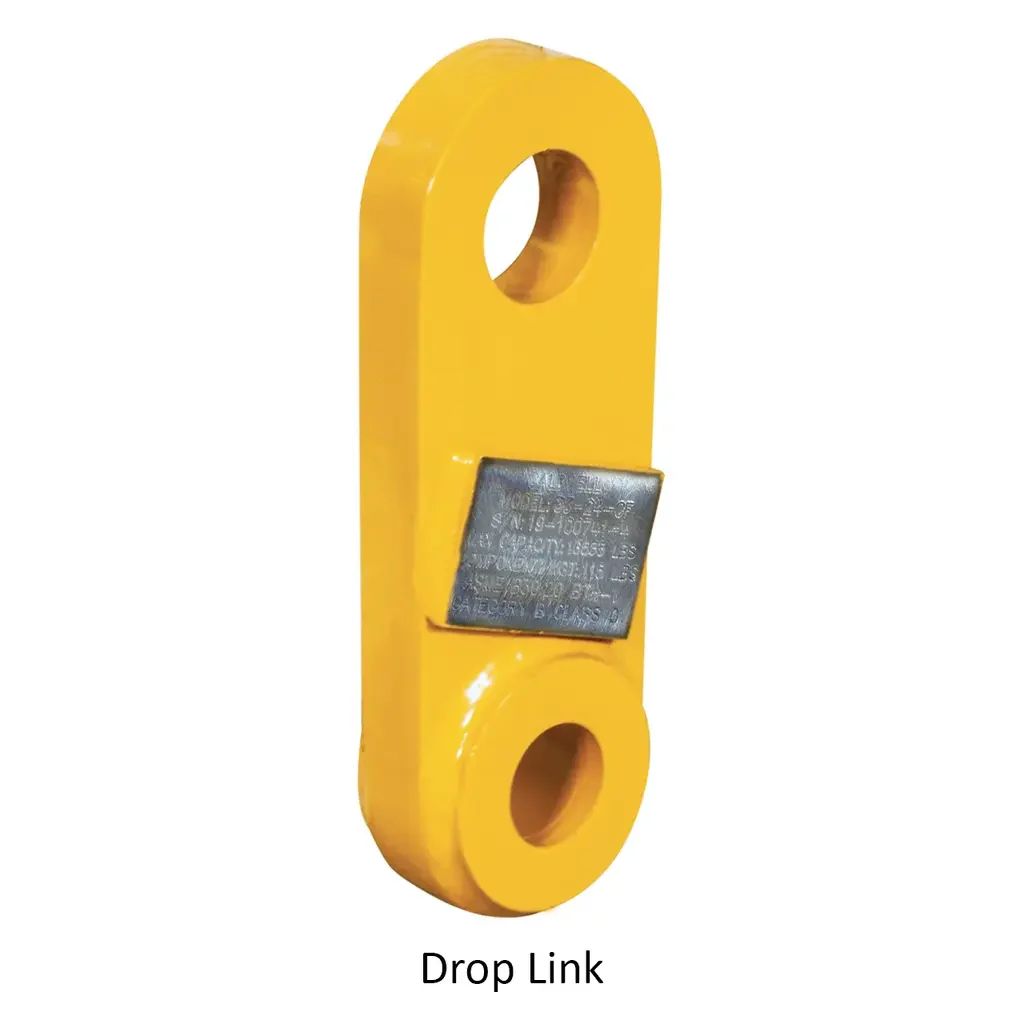

| DM34-DL | Drop Link | 19 |
| DM34-SS-6 | 6 ft Spreader Section | 115 |
| DM34-SS-4 | 4 ft Spreader Section | 85 |
| DM34-SS-2 | 2 ft Spreader Section | 55 |
| DM34-SS-1 | 1 ft Spreader Section | 38 |
| 116118 | Bolt Kit | 2.8 |
Standard Starter Set Includes
- Two end fittings
- Two drop links
- Three 6-foot spreader sections
- One 4-foot spreader section
- One 2-foot spreader section
- One 1-foot spreader section
- Sixteen bolt kits
Documents
- Dura-Mod DM34 Product Specification Sheet
- Dura-Mod Modular Beam Brochure
- Capacity vs. Span Chart
- Assembly Instructions
- ASME Compliance Information
Frequently Asked Questions
What is the Caldwell Model DM34 used for?
The DM34 is a modular spreader beam system designed for lifting loads up to 34 metric tons in industrial, construction, and material handling applications.
What beam spans are available?
The DM34 can be configured with spans from 3 feet to 32 feet using interchangeable spreader sections.
Are slings and shackles included?
No. Slings and shackles are supplied separately and should be selected based on your lifting plan and application requirements.
Can the hardware be reused?
Yes. Bolts, nuts, and washers may be reused when anti-seize thread coating is applied during assembly.
How is the lifting capacity determined?
Capacity is determined by the beam span and the base-to-sling angle. Refer to the Caldwell Capacity vs. Span chart to select the correct configuration for your application.
